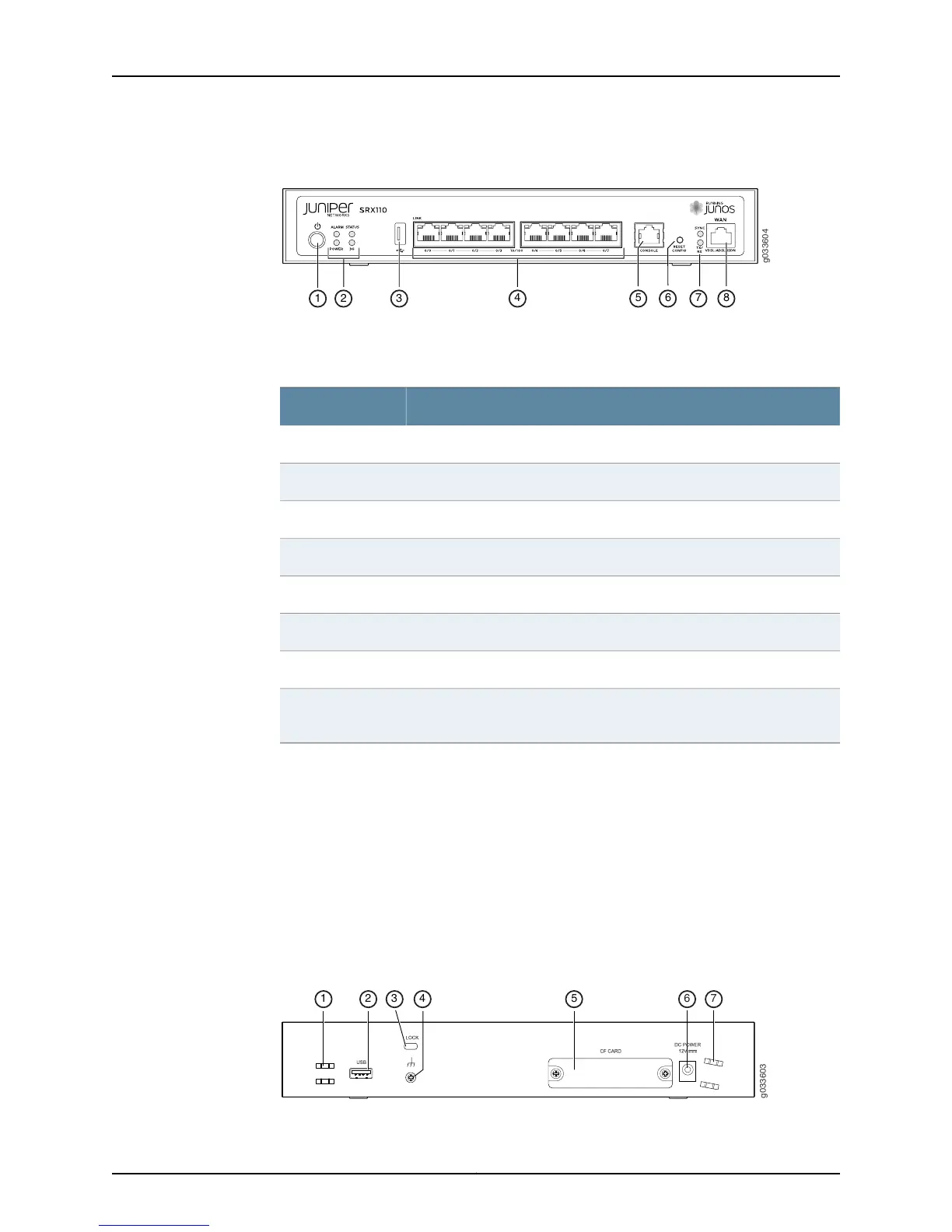

Figure 4: SRX110 Services Gateway Front Panel (SRX110H2-VB)
g033604
1 3
4
2
5 6 87
Table 8 on page 16 lists the front panel components of the SRX110 Services Gateway.
Table 8: SRX110 Services Gateway Front Panel Components
ComponentNumber
Power button1
LEDs: Alarm, Status, Power, and 3G2
USB port3
Fast Ethernet ports4
Console port5
Reset Config button6
LEDs: SYNC and TX/RX7
•
For SRX110H2-VA—VDSL/ADSL-POTS
•
For SRX110H2-VB—VDSL/ADSL-ISDN
8
For more information on the front panel components, see the following topics:
•
SRX110 Services Gateway Built-In Interfaces on page 17
•
SRX110 Services Gateway LEDs on page 19
•
SRX110 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 22
SRX110 Services Gateway Back Panel View
Figure 5 on page 16 shows the back panel of the SRX110 Services Gateway.
Figure 5: SRX110 Services Gateway Back Panel
g033603
1 3 4
2 5
6 7
Copyright © 2015, Juniper Networks, Inc.16
SRX110 Services Gateway Hardware Guide for H2 Model Numbers
