To install the device in a rack:
1. Position a mounting bracket on each side of the chassis as shown in
Figure 12 on page 60.

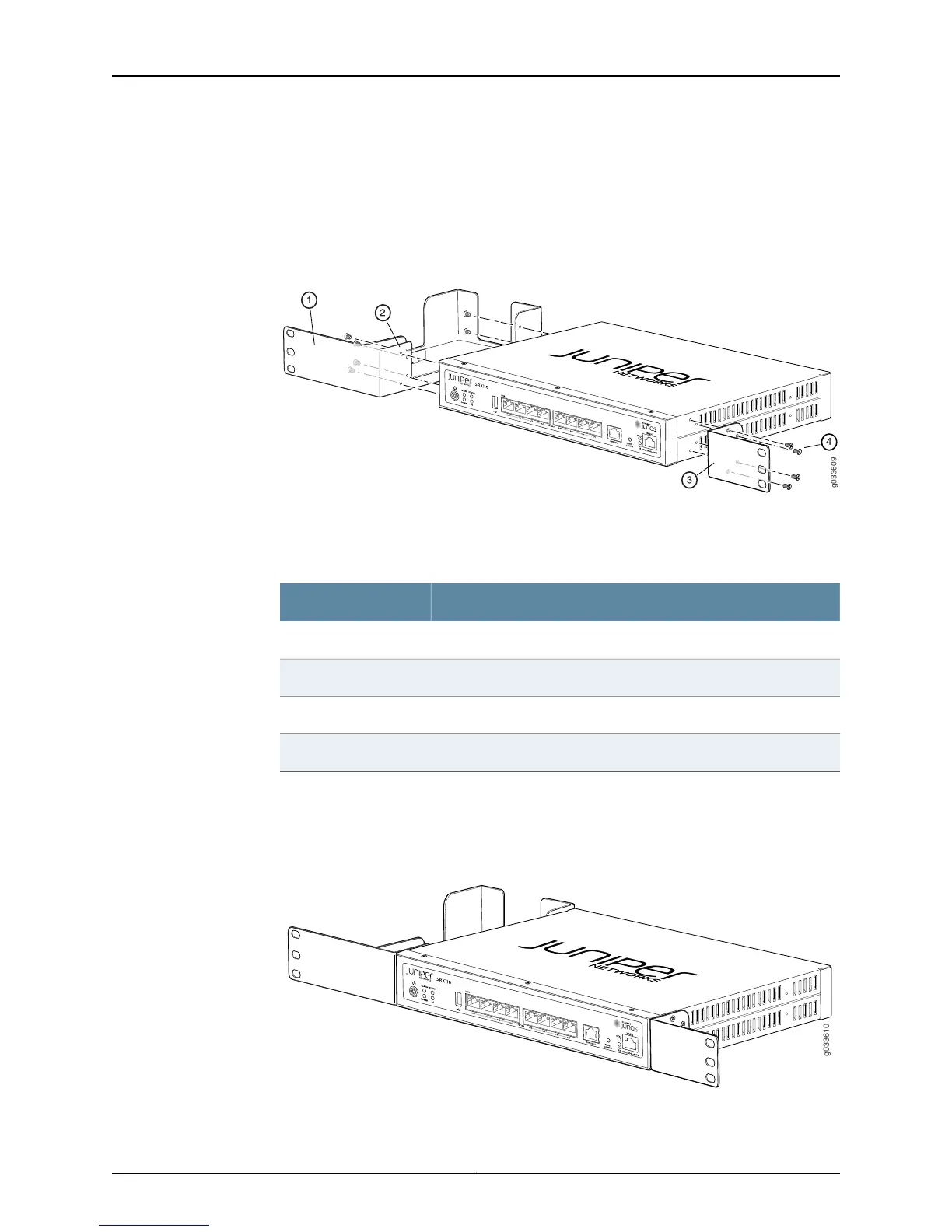

Figure 12: SRX110 Services Gateway Installation in a Rack — Positioning
Mounting Brackets
g033609
4
Table 34 on page 60 lists the parts used for installing the device on the rack. The
numbers in Figure 12 on page 60 correspond to the numbers in Table 34 on page 60.
Table 34: SRX Services Gateway Rack Installation Parts
PartNumber
Power supply adapter tray1
Adapter stopper bracket2
Mounting brackets3
Screws (mounting bracket)4
2. Use a Phillips (+) screwdriver, number 1, to install the screws that secure the mounting
brackets and power supply adapter tray to the chassis as shown in Figure 13 on page 60.
Figure 13: SRX110 Services Gateway Rack Installation — Securing Mounting
Brackets and Power Supply Adapter Tray
g033610
Copyright © 2015, Juniper Networks, Inc.60
SRX110 Services Gateway Hardware Guide for H2 Model Numbers
