• Grounding the SRX110 Services Gateway on page 72
Grounding the SRX110 Services Gateway
To meet safety and electromagnetic interference (EMI) requirements and to ensure
proper operation, you must adequately ground the SRX110 Services Gateway before
connecting power.

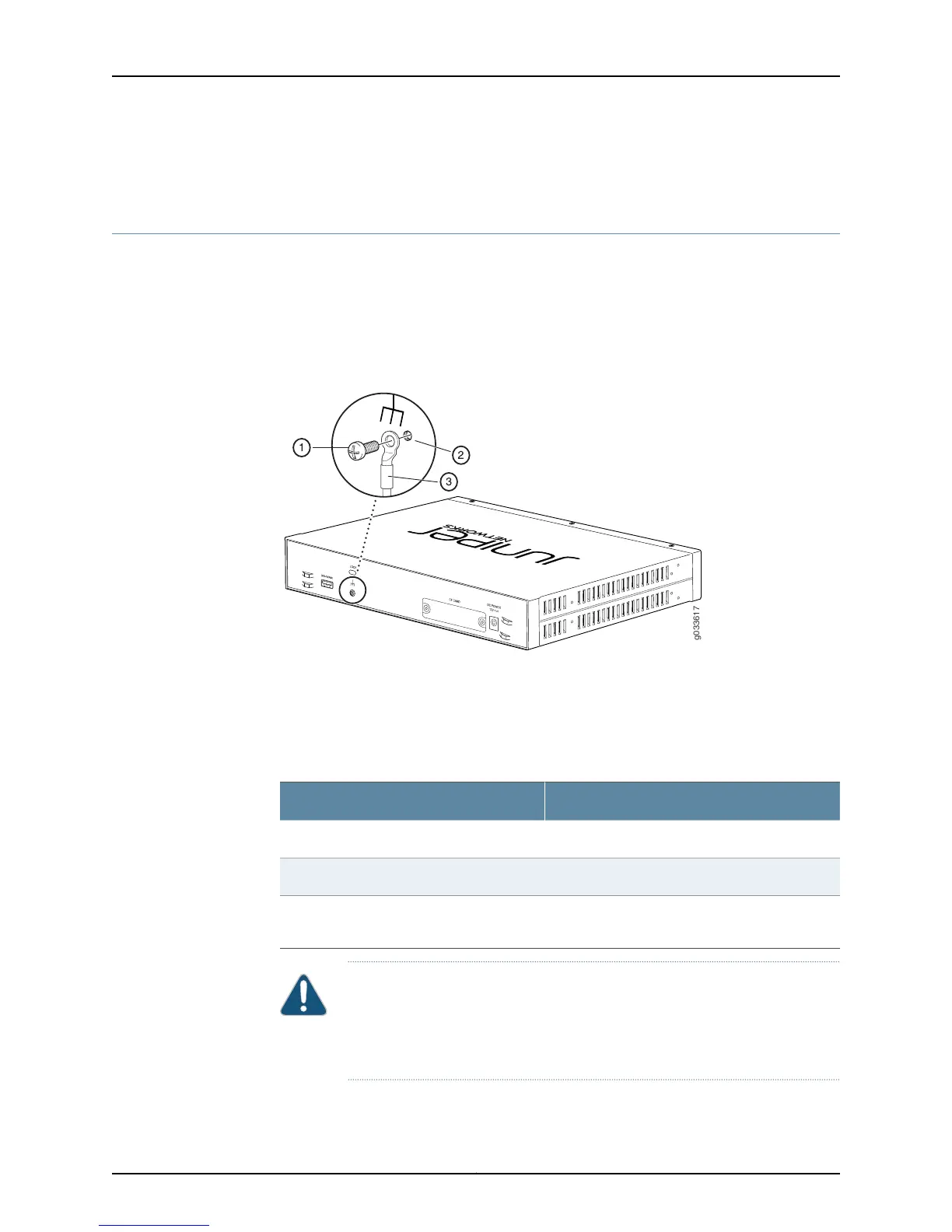

Figure 25 on page 72 illustrates connecting a grounding cable to the services gateway.
Figure 25: Grounding the SRX110 Services Gateway
To ground the device, connect a grounding cable to earth ground and then attach it to
the chassis grounding points, using one M3 screw.
Table 38 on page 72 lists the specifications of the grounding cable used with the device.
Table 38: Grounding Cable Specifications for the Services Gateway
SpecificationGrounding Requirement
14 AWG single-strand wire cableGrounding cable
Up to 4 AAmperage of grounding cable
Ring-type, vinyl-insulated TV14-6R lug or
equivalent
Grounding lug
CAUTION: Before device installation begins, a licensed electrician must
attach a cable lug to the grounding and power cables that you use. A cable
with an incorrectly attached lug can damage the device (for example, by
causing a short circuit).
Copyright © 2015, Juniper Networks, Inc.72
SRX110 Services Gateway Hardware Guide for H2 Model Numbers
