Model 6517B Electrometer Reference Manual Section 2: Getting started
6517B-901-01 Rev. C / August 2015 2-15
Time/day/date
This display provides the time, day of week, and the date. The time, date and format (12-hour or 24-
hour) are set from the CLOCK option of the GENERAL MENU (which is selected from the MAIN
MENU).
Multiple (Next) displays by function
Function Next display
All Time, day, and date
Bar graph
Zero-centered bar graph
Maximum and minimum values
Relative and actual values
Calculated and actual values
Limits bar graph
Relative humidity and external temperature stamp
R Source (V) and measure (I) values
Bar graph
The normal bar graph, with a zero at the left end, is a graphical representation of a reading as a
portion of a range, as shown in the figure below. The vertical lines displayed along the bar designate
0 %, 25 %, 50 %, 75 %, and 100 % of full scale. Each full segment of the bar represents
approximately 4 % of the range limit.
The right endpoint of the bar graph is plus full scale of the present range for positive readings, and
minus full scale for negative readings. When the 100 % line changes to an arrow, the reading
exceeds the current range.

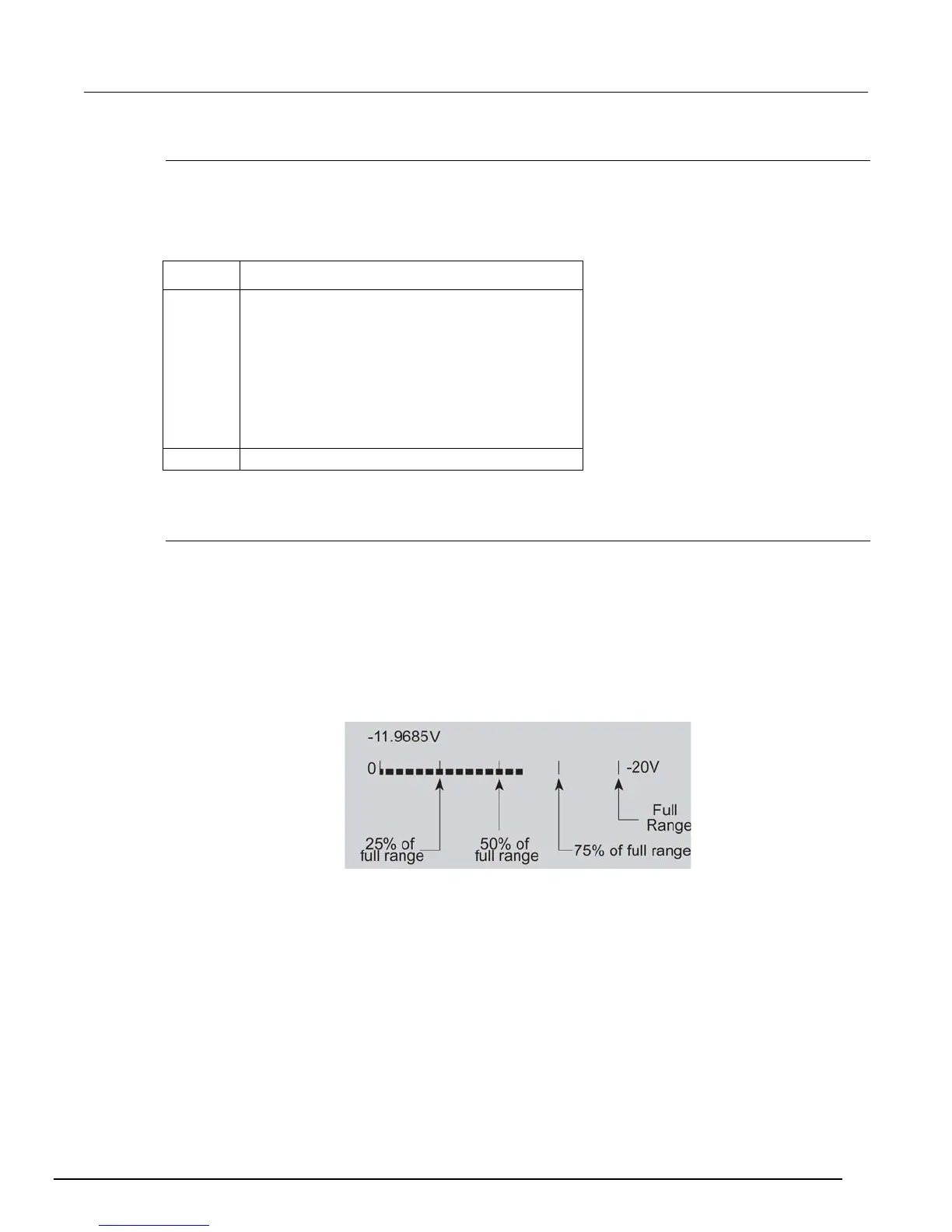

Figure 5: Bar graph (zero-at-left) multiple display
