DIRECTIONS OF MACHINE

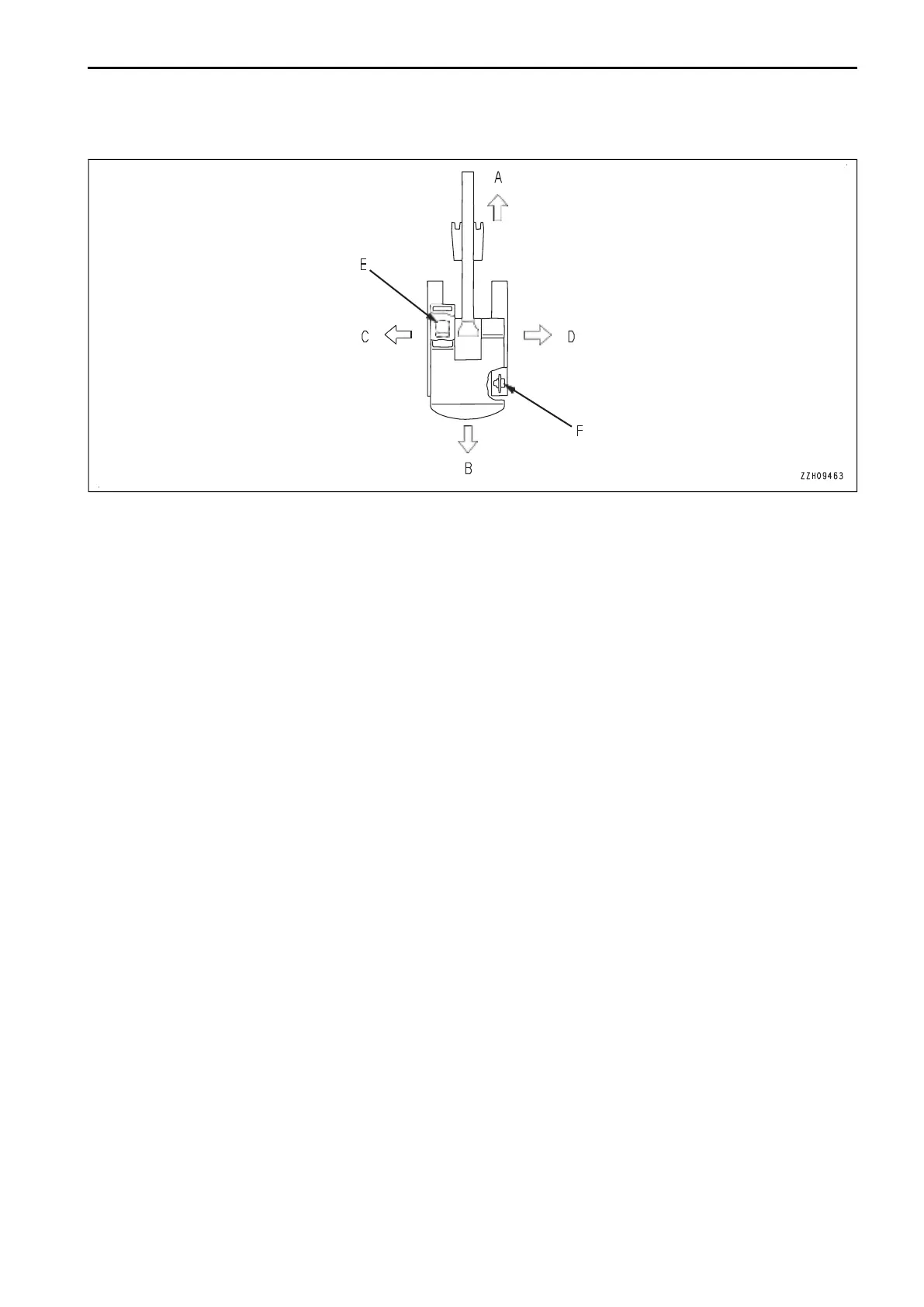

(A) Front
(B) Rear
(C) Left
(D) Right
(E) Operator's seat
(F) Sprocket
In this manual, the terms front, rear, left, and right refer to the travel direction as seen from the operator's seat
when the operator's seat is facing the front and the sprocket is at the rear of the machine.
VISIBILITY FROM OPERATOR'S SEAT
The visibility of this machine required by visibility standards (ISO 5006) are shown in the drawing below.
Proximity visibility
The figure below shows a visibility from the machine at a spot 1.0 m away from outside the machine and 1.5 m
above the ground.
12 m radius visibility
The figure below shows a visibility from the machine for a radius of 12 m. Shaded areas (A) in the figure show
areas, the views of which are blocked when the machine is equipped with the mirrors and other visibility assis-
tant devices. Be fully aware that there is an area where the operator cannot see when operating the machine.
