• There are no stains on the camera lens. When any stain appears on the lens, wipe it off with dry and soft
cloth.
• Check whether there are any breakages or deformations on the camera mounts which causes incorrect
camera direction, or any defects in the camera. When there are any defects, consult your Komatsu distribu-
tor.
METHOD FOR CHECKING CAMERA VISIBILITY
The direction of camera may be changed by a shock to the camera. Check the visibility of the camera.

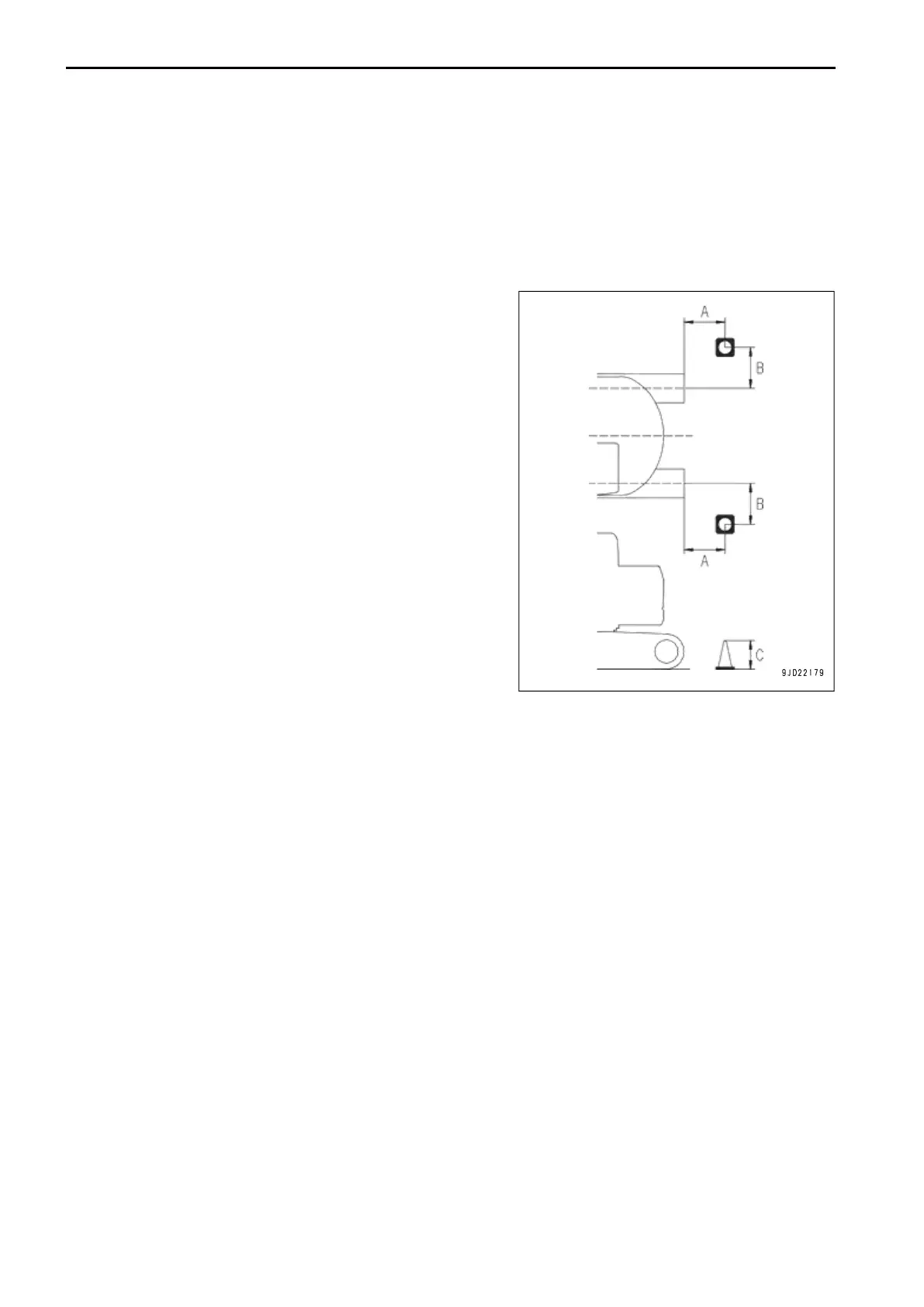

Put the traffic cone of approximately 70 cm height (C) to the po-
sition at the rear outside of the machine, where the distance (A)
is approximately 1.0 m behind the centerline of a track and also
the distance (B) is approximately 1.0 m outside of it.
If the traffic cone can be seen on the monitor screen, it is nor-
mal.
If the traffic cone cannot be seen on the monitor screen, ask your Komatsu distributor for adjustment of the cam-
era image.
TROUBLES AND ACTIONS
When the monitor does not respond or displays no camera image, consult your Komatsu distributor.
