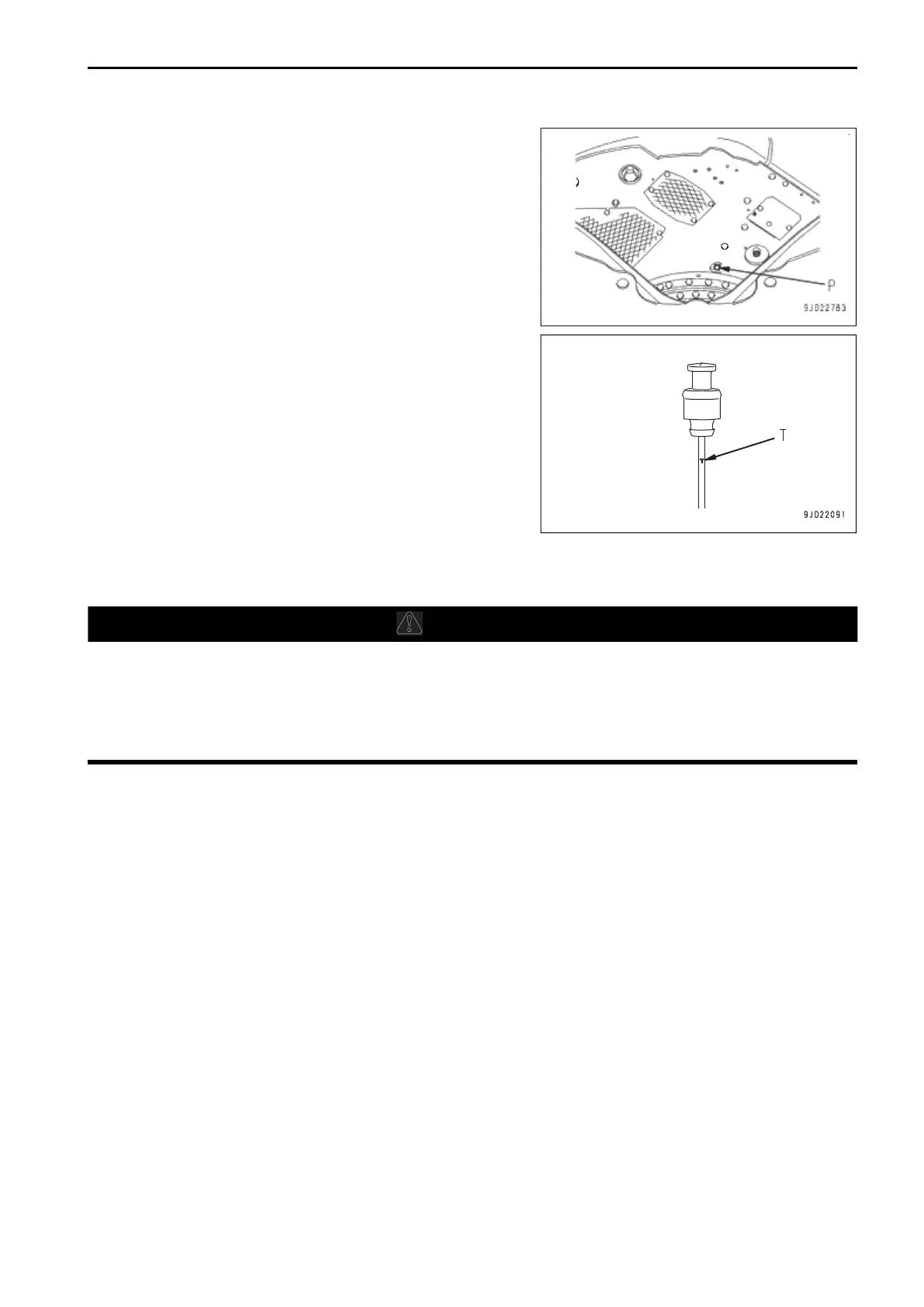

1)
Place a container to receive the oil under drain valve
(P).
2)
Loosen drain valve (P) and drain excessive oil.
3)
Check the oil level again.
7.
After the oil level check and the adding the oil, insert the oil
level gauge so that the stamping mark (T) of it faces the
center of the swing machinery.
EVERY 250 HOURS MAINTENANCE
METHOD FOR CHECKING OIL LEVEL IN FINAL DRIVE CASE, ADDING OIL
• Immediately after the engine is stopped, its parts and oil are still very hot and may cause burn in-
jury. Accordingly, wait until they have cooled down before starting the work.
• If there is remaining pressure inside the case, the oil or plug may jump out. Loosen the plug slowly
to release the pressure.
• Do not stand in front of the plug when you loosen the plug.
Items to be prepared
• Container to catch oil
• Hexagonal wrench
To Next Page
