EXPLANATION OF COMPONENTS

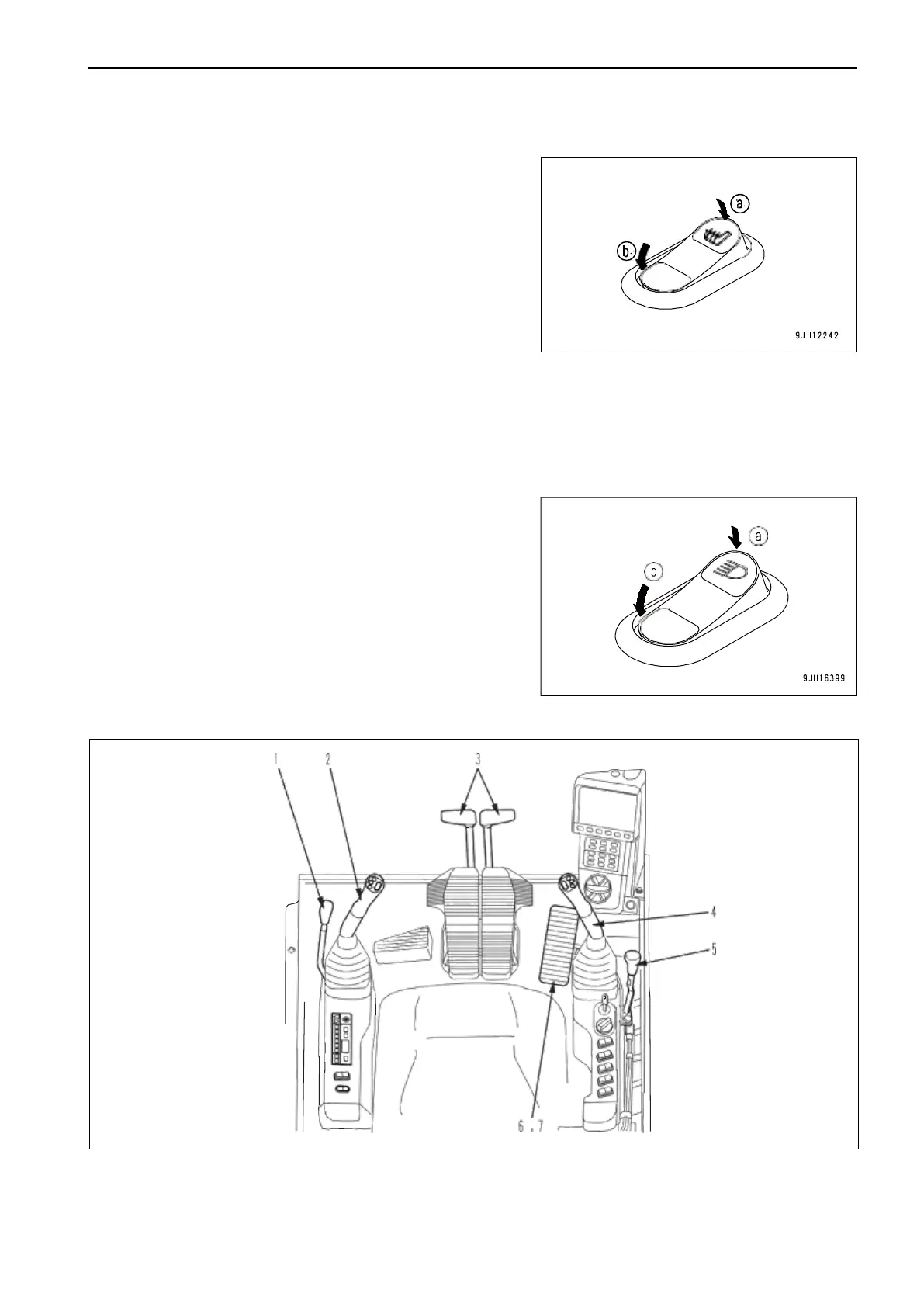

SEAT HEATER SWITCH
This seat heater switch is used to warm the seat.
(a) ON
Start the seat heating and the seat becomes warm.
(b) OFF
Stops the seat heating.
QUICK COUPLER SWITCHES
To operate the quick coupler circuit switches on RHS console and on LH PPC lever, must be operated together.
Refer to “TO RELEASE A BUCKET OR ATTACHMENT (6-5)” for an explanation of these switches operation.
ADDITIONAL LAMPS SWITCH
(if equipped)
The additional lamps switch is used to turn on the cab front
lamps, cab rear lamps and extra boom lamps (If fitted by cus-
tomer)
(a) ON
Lamps light up.
(b) OFF
Lamps go out.
CONTROL LEVERS AND PEDALS
(1) Lock lever
(2) L.H. work equipment control lever (with auto-decel-
eration system)
(3) Travel levers (with pedal and auto-deceleration
system)
To Next Page
