EXPLANATION OF LIFT CAPACITY CHART
EXPLANATION OF LIFT CAPACITY CHART
The excavator used in handling operations must conform with current local regulations and be equip-
ped with safety valves and an overload alarm in compliance with EN 474-5.

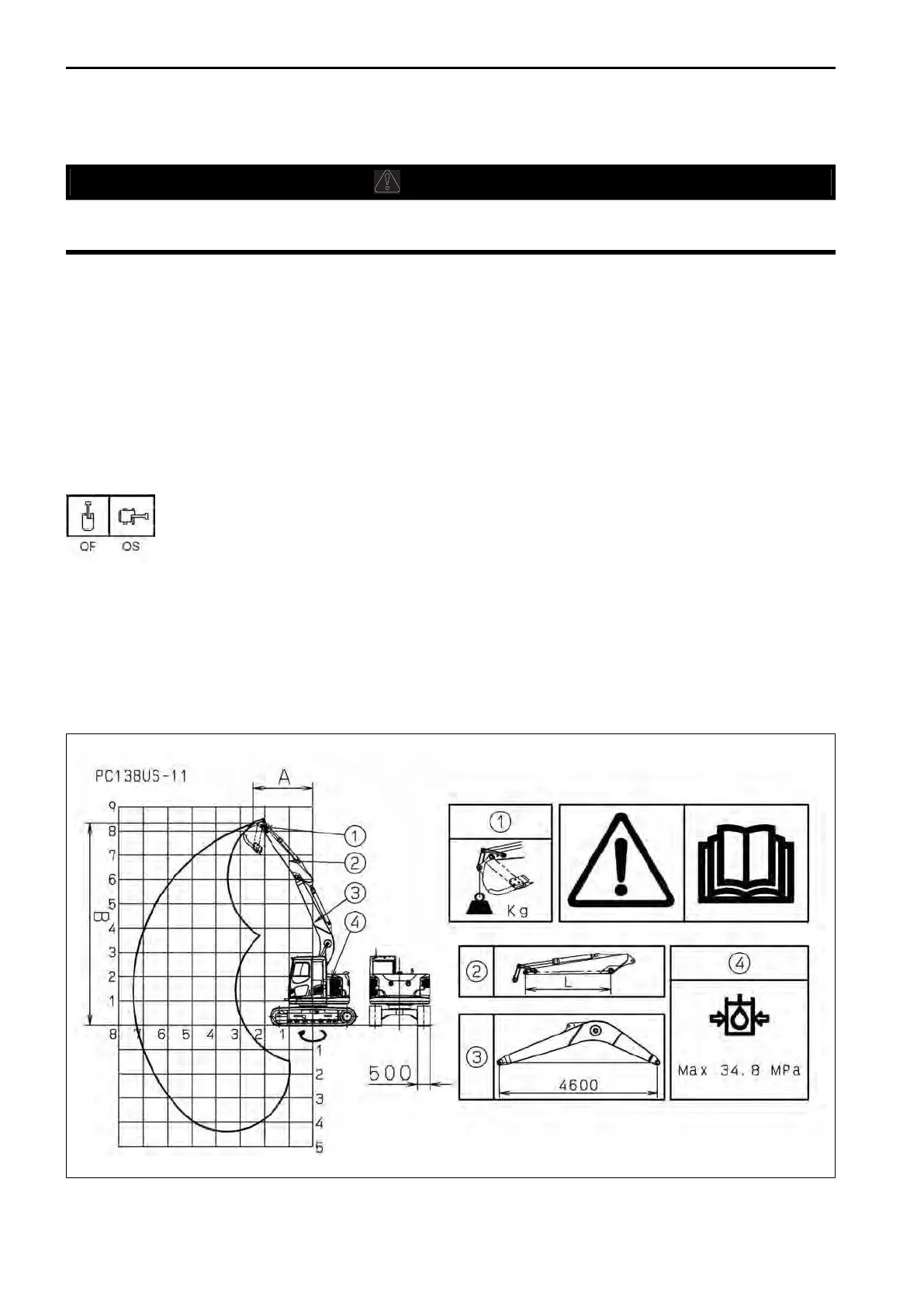

Legend
A: Reach from swing centre
B: Bucket hook height
(1) Position of lifting point
(2) Arm length
(3) Boom length
(4) Hydraulic pressure: 34.8 MPa
OF: Lifting capacity (rating overfront)
OS: Lifting capacity (rating overside)
Working conditions
• Bucket: 0.50 m³ ISO - 400 kg
• Width shoe: 500 mm
• With fully extended bucket cylinder.
• On a compact horizontal level ground.
• If object handling is performed with other tool installed, the weight difference of the tool shall be deducted
from value of this table.
