Prepare a container to receive the oil.
1.

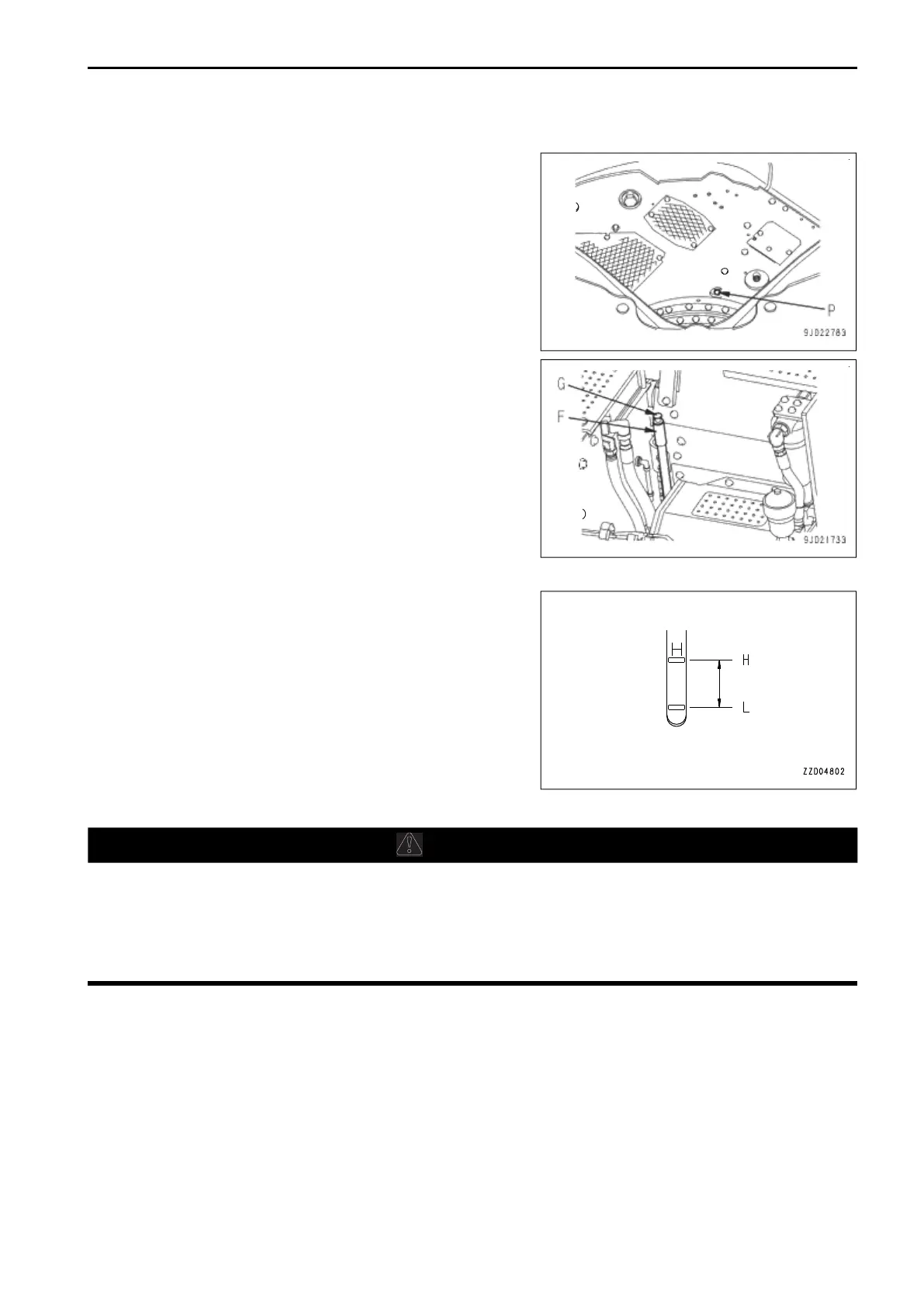

Swing the upper structure so that drain plug (P) on the un-
derside of the machine is in the middle between the right
and left tracks.
2.
Place the oil container to receive the oil under drain plug
(P).
3.
Remove the drain plug (P), drain the oil, then tighten the
plug again.
Tightening drain plug (P) to 44.1 to 93.1 Nm.
4.
Add the refill capacity of engine oil through oil filler port (F).
Method for changing oil in swing machinery case
5.
Check the oil level in the swing machinery case.
Check that the oil level is between H and L marks on dip-
stick (G).
For the oil level check procedure, see “METHOD FOR
CHECKING OIL LEVEL IN SWING MACHINERY CASE,
ADDING OIL (4-40)”.
METHOD FOR CHANGING OIL IN FINAL DRIVE CASE
• Immediately after the engine is stopped, its parts and oil are still very hot and may cause burn in-
jury. Accordingly, wait until they have cooled down before starting the work.
• If there is remaining pressure inside the case, the oil or plug may jump out. Loosen the plug slowly
to release the pressure.
• Do not stand in front of the plug when you loosen the plug.
Refill capacity (each of right and left): 2.1 ℓ
Items to be prepared
• Container to catch oil
• Hexagonal wrench
To Next Page
