(7)Engine coolant temperature caution lamp
(8)ECO gauge
(9)Fuel consumption gauge
(10)Service meter
(11)Working mode display
(12)Travel speed display
(13)Clock
(14)DEF level gauge
(15)Fuel gauge
(16)Fuel level caution lamp
(17)Working mode selector switch
(18)Travel speed selector switch
(19)Window washer switch
(20)Air conditioner switch
(21)Seat belt caution lamp
(22)Engine stop pilot lamp
REMARK
The figure does not show all the caution lamp symbols.
(23)Work equipment lock pilot lamp
(24)Aftertreatment devices regeneration display
(25)Message display
(26)Air conditioner pilot lamp
(27)Engine oil level caution lamp
(28)Air cleaner clogging caution lamp
(29)Charge level caution lamp
(30)Engine oil pressure caution lamp
(31)Wiper pilot lamp
(32)Swing lock pilot lamp
(33)Preheating pilot lamp
(34)Auto-deceleration pilot lamp
(35)Camera switch display
(36)Function switch (F1 – F6)
(37) Maintenance time caution lamp

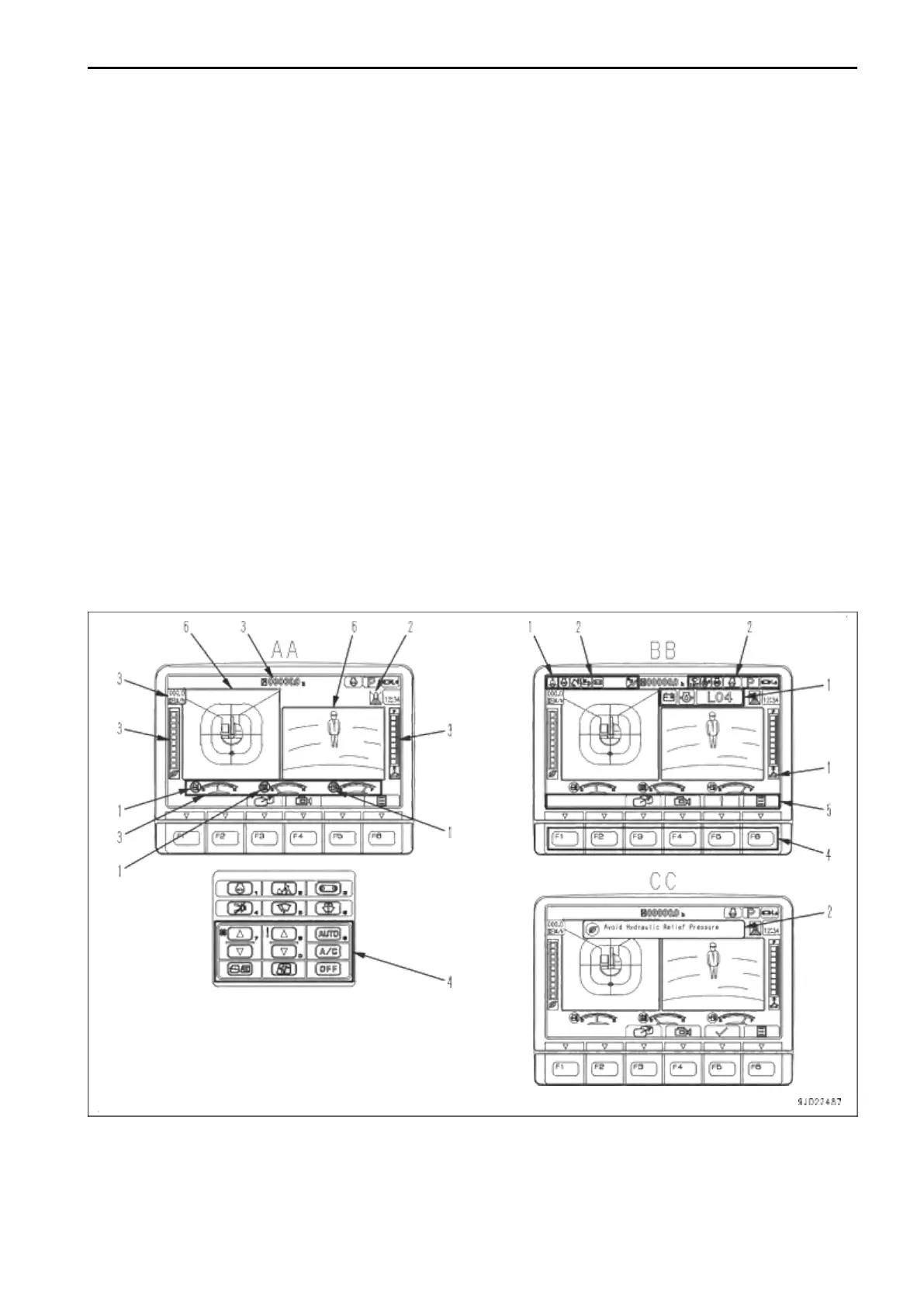

EXPLANATION OF MACHINE MONITOR EQUIPMENT
AA: Start screen, BB: Warning and error screen, CC: Guidance screen
(1) Warning display
(2) Pilot display
(3) Meter display
(4) Monitor switch area
(5) Guidance icon display
(6) Camera image display
