REMARK
• The liquid crystal panel may show some black spots or bright spots. It is not defect unless there are 10 or
more of them.
• When the temperature in the cab is high, the brightness of monitor may reduce automatically to protect the
LCD.

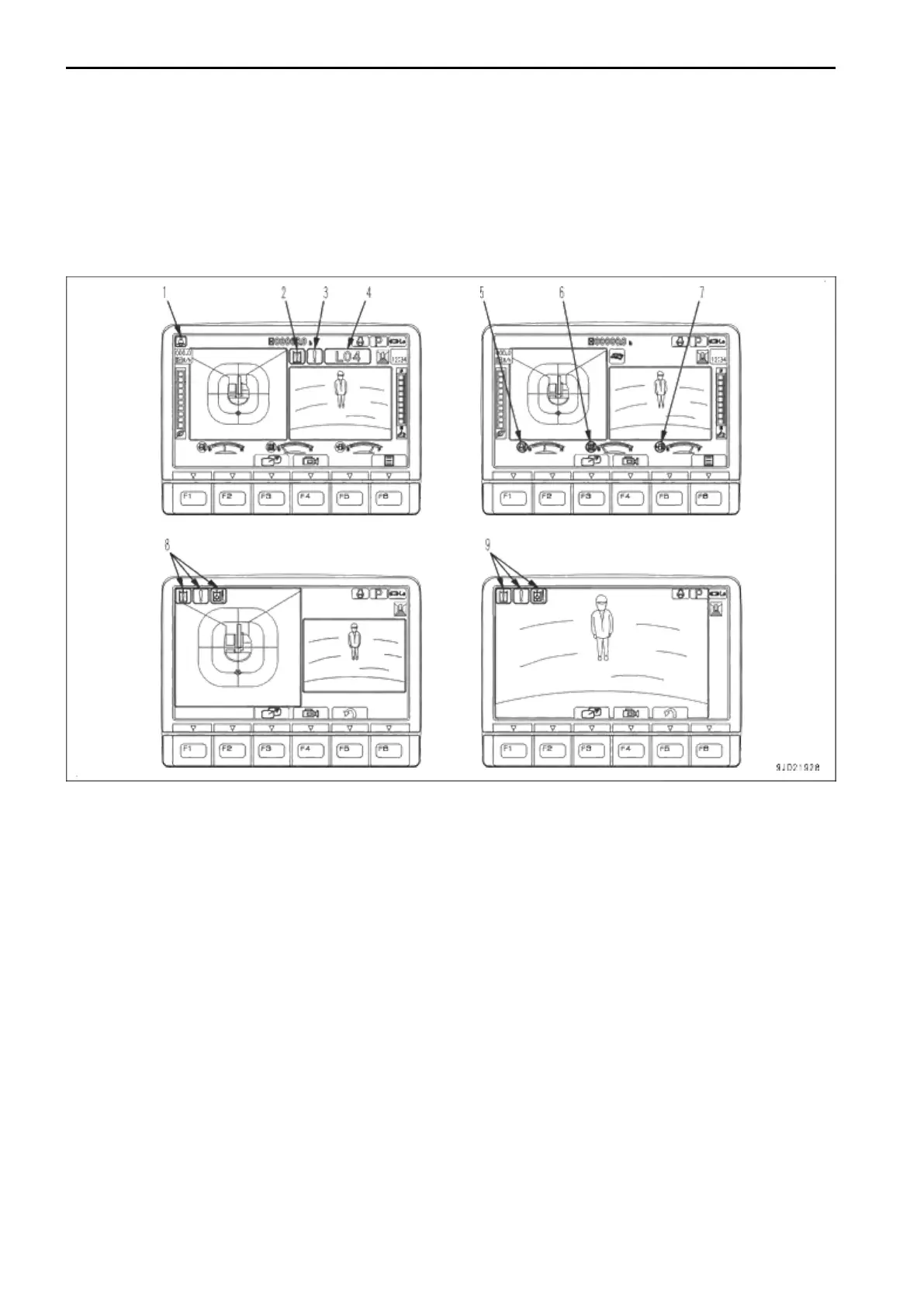

WARNING DISPLAY
(1) Seat belt caution lamp
(2) Caution lamp
(3) Caution lamp
(4) Action level display
(5) Engine coolant temperature caution lamp
Caution display on the start screen
(6) Hydraulic oil temperature caution lamp
(7) Fuel level caution lamp
(8) Caution lamp
(9) Caution lamp
When there is one activated warning, it appears in the location of caution lamp (2).
When there are two activated warnings, they appear in the location of caution lamps (2) and (3).
When there are three or more activated warnings, they appear in the location of caution lamps (2) and (3) alter-
nately every two seconds.
Caution display on the screen of the camera image
The activated warnings flash on caution lamp (9).
If multiple warnings are activated, they appear in sequence of occurring.
