4. When
commercially available cold-season wiper
blades are used, make sure their size is the same
as or smaller than that of the standard ones.
IMPORTANT :
• In the cold season, the wiper blades and the
wiper motor may become overloaded, and
cause damage. To avoid this, be sure to take
the above precautions.
AIR CONDITIONER
CAUTION
T
o avoid personal injury:
• If the window fails to defrost in extreme
conditions or becomes cloudy when
dehumidifying the CAB, wipe off moisture with
a soft cloth.
• Do not block all the air outlets of the air
conditioner. A problem could occur.

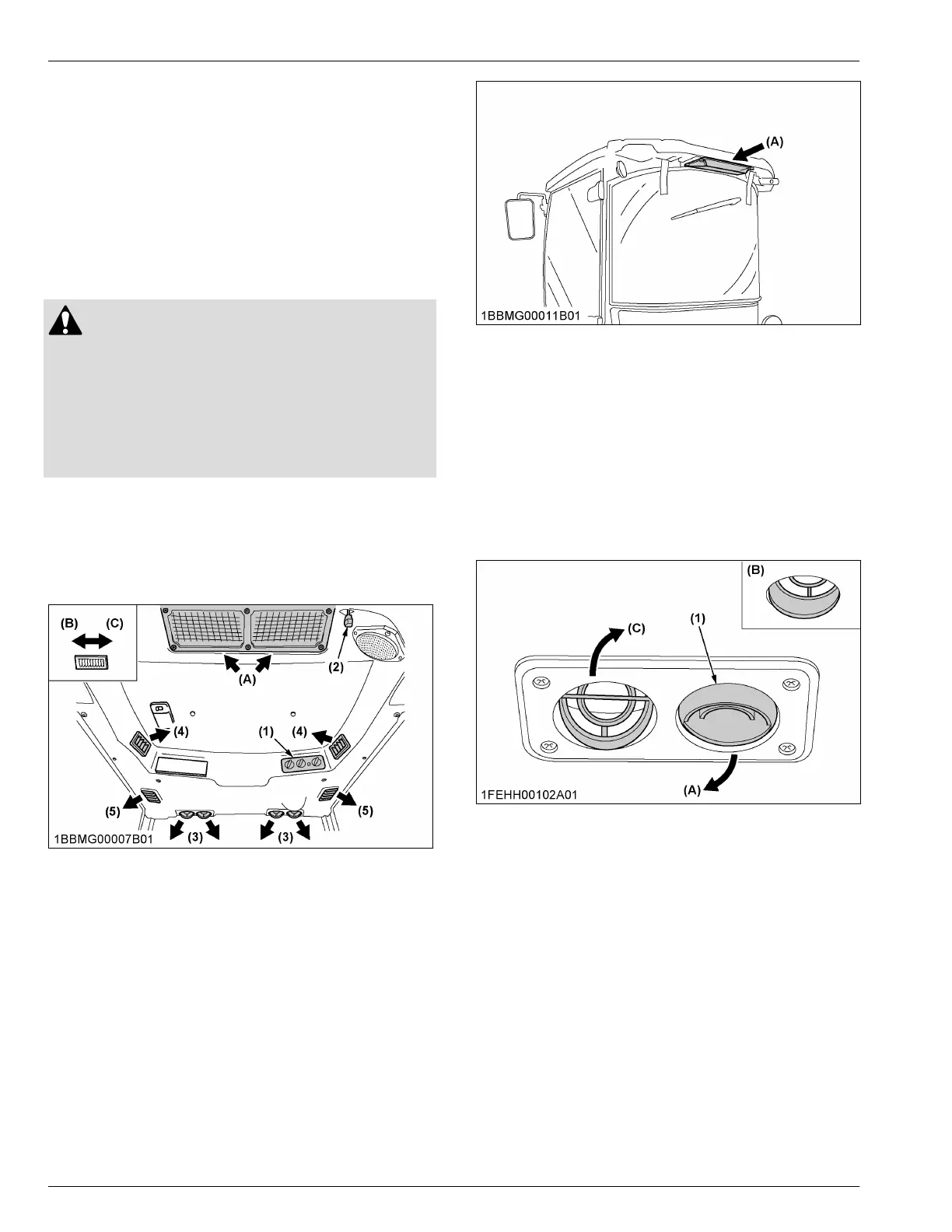

1. Airflow
Air in the CAB and fresh air introduced into the CAB
flows
as follows. Adjust the air ports to obtain the
desired condition.
(1) Control panel
(2) Recirculation or fresh air se-
lection lever
(3) Front air outlet (defrost,
windshield, foot area)
(4) Side air outlet (face, back
area)
(5) Door air outlet (door area)
(A) Inner air recirculation
(B) “OPEN”
(C) “SHUT”
(A) Fresh air inlet
IMPORTANT :
• Do
not pour water directly into the fresh air port
while washing the tractor.
2. Air control vent
2.1 Front air outlet
The front air outlets can be independently adjusted as
required.
To defrost the windshield, rotate the outlets
toward the windshield.
(1) Front air outlet (A) “WINDSHIELD”
(B)
“CLOSED”
(C) “CHEST AREA”
2.2 Side air outlet and door air outlet
The side and door air outlets can be adjusted to direct
air
on to the operator, door window or the rear of the
CAB.
CAB OPERATION AIR CONDITIONER
To Next Page
