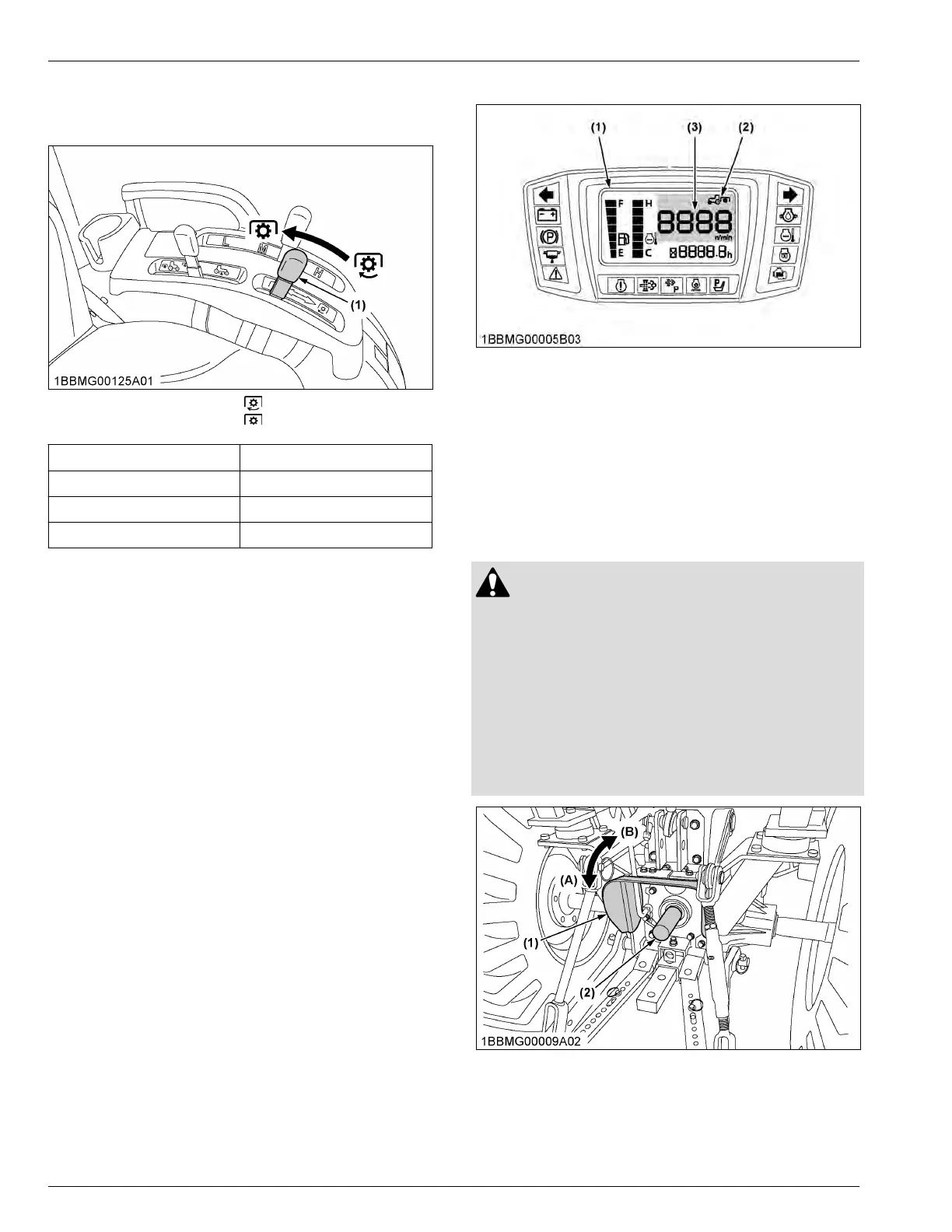

2. Shift
the lever to “ON” to engage the PTO clutch.
Shift the lever to “OFF” to disengage the PTO
clutch.
(1) PTO clutch lever
“ON” “ENGAGE”
“OFF” “DISENGAGE”
LX2610SU
Engine speed 2398 rpm
Shaft 6-spline
PTO speed 540 rpm
NOTE :
• T
ractor engine will not start if the PTO clutch
lever is in the engaged “ON” position.
• When you stand up from the seat with the
PTO clutch lever in the “ON” position, the
engine will stop regardless of the position of
the PTO select lever.
This is because the tractor is equipped with
operator presence control (OPC) system.
4. LCD monitor message
1. The PTO rpm can be checked in the LCD monitor.
(See Changing display mode
on page 69.)
Display switch “ON”
(1) LCD monitor
(2) PTO indicator
(3) PTO speed
NOTE :
• W
ith the PTO in the “ON” position, a
numeric value is displayed on the LCD
monitor even if the PTO shaft is not turning.
5. PTO shaft cover and shaft cap
WARNING
T
o avoid personal injury or death:
• Keep the PTO shaft cover in place at all times.
Put back the PTO shaft cap when the PTO is not
in use.
• Before connecting or disconnecting a drive
shaft to the PTO shaft, be sure the engine is off.
Also, if a raisable PTO shaft cover is equipped,
raise the cover up to the raised position.
Afterward be sure to return the PTO shaft cover
to the normal position.
(1) PTO shaft cover
(2)
PTO shaft cap
(A) “NORMAL POSITION”
(B) “RAISED POSITION”
PTO PTO OPERATION
