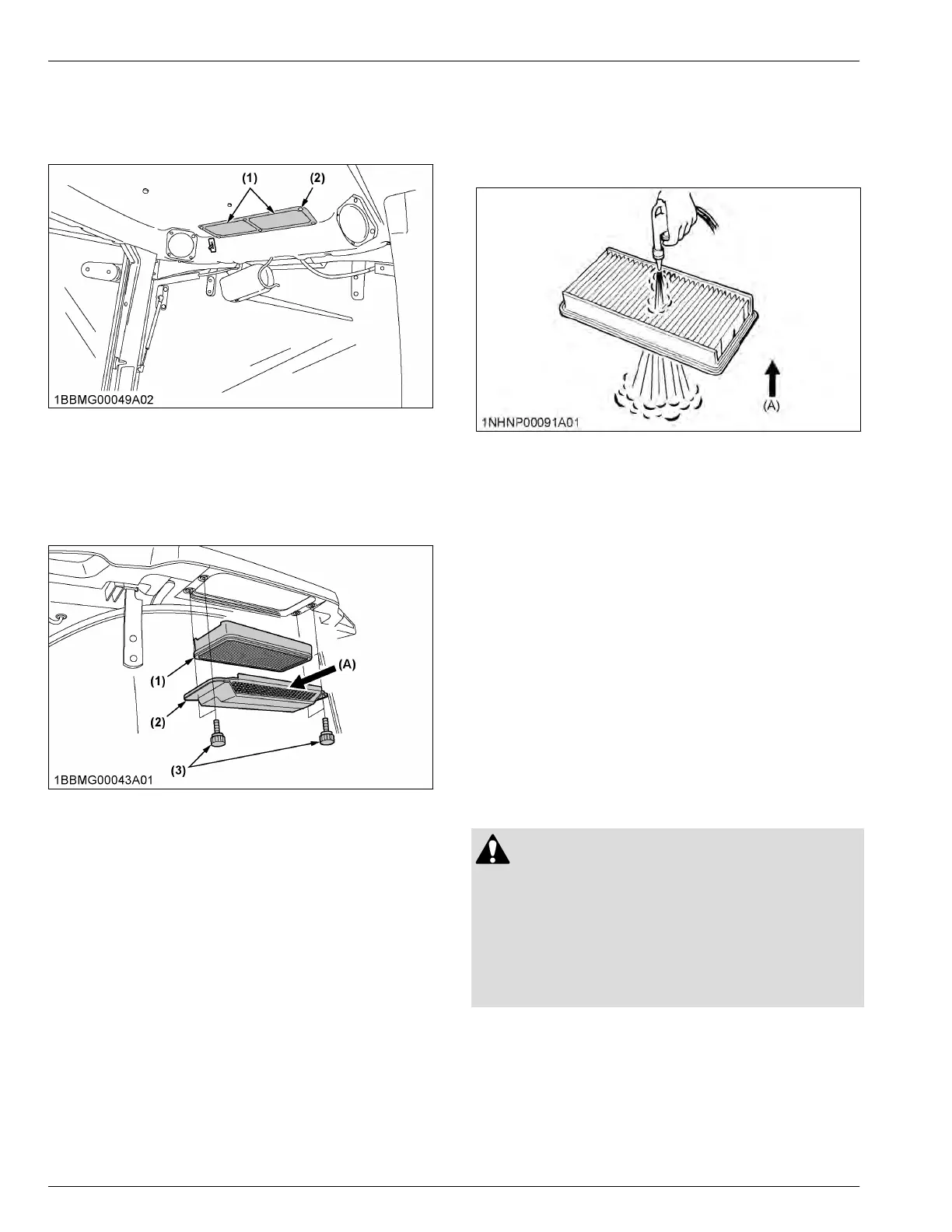

1. Remove
the inner filter, and blow air from the
direction opposite to the filter's normal air flow.
Pressure of compressed air must be under 205
kPa / 2.1 kgf/cm
2
/ 30 psi.
(1) Inner air filter
(2)
Screw
8. Cleaning fresh air filter (CAB
model)
1. Remove the knob bolts and pull out the filter.
(1) Fresh air filter
(2)
Cover
(3) Knob bolt
(A) Air inlet port
NOTE :
• After
cleaning, attach the filter and cover as
in the previous illustration.
8.1 Cleaning the filter
Normal use
Blow
air from the opposite direction to the filter's normal
air flow.
Pressure of compressed air must be under 205 kPa
(2.1 kgf/cm
2
/ 30 psi).
IMPORTANT :
• Do
not hit the filter. If the filter becomes
deformed, dust may enter into the air-
conditioner, which may cause damage and
malfunction.
(A) “AIR CONDITIONER AIRFLOW”
NOTE :
•
If the filter is very dirty:
Dip the filter in lukewarm water with mild
dishwashing detergent.
Move it up and down as well as left and right to
loosen dirt. Rinse the filter with clean water and
let it air-dry.
IMPORTANT :
• Do not use gasoline, thinner or similar
chemicals to clean the filter as damage to the
filter may occur.
• It may also cause an unpleasant odor in the
CAB next time the system is used.
9. Checking the air conditioner
condenser (CAB model)
WARNING
To avoid personal injury or death:
• Be sure to stop the engine before removing the
screen.
• The condenser and receiver become hot while
the air conditioner is running. Before checking
or cleaning them, wait long enough until they
cool down.
PERIODIC SERVICE EVERY 200 HOURS
