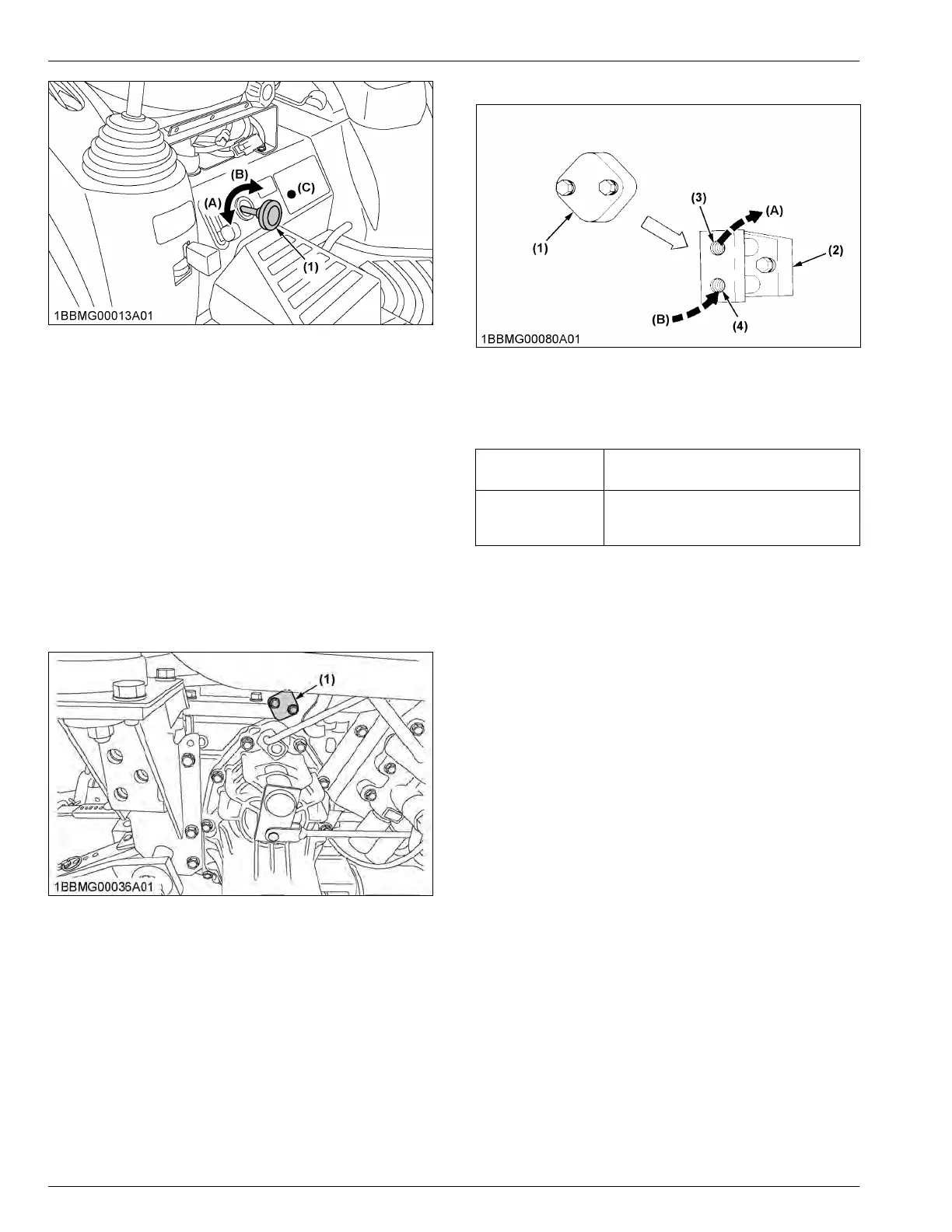

(1) 3-point hitch lowering speed
knob
(A) “FAST”
(B)
“SLOW”
(C) “LOCK”
AUXILIARY HYDRAULICS
Hydraulic outlet is (rear) provided on the tractor.
1. Hydraulic block type outlet
Hydraulic block type outlet is useful when adding
hydraulically
operated equipment such as front end
loader, front blade, etc.
When an implement is attached
1. Remove the block cover.
2. Attach the block outlet cover (option).
When implement is not attached
(1) Block cover
When implement is attached
(1) Block cover
(2) Block outlet cover (option)
(3) Outlet
(4) Inlet
(A) To implement inlet
(B) From implement outlet
Implement inlet
Max. flow
18.9 L/min
(5.0 U.S.gals./min)
Max. pressure
15.8 to 16.6 MPa
(161 to 169 kgf/cm
2
)
(2292 to 2408 psi)
NOTE :
• If
the control valve of implement has the relief
valve, the tank port flow from implement should
be connected to the port (c).
2. Dual remote hydraulic control
system
The tractor is equipped with the double-acting 2-
segment hydraulic control valve for front loader
.
To apply the hydraulic power take-off for general
attachments, keep the following point in mind.
2.1 Control lever and hydraulic hose
connections
Connect the control lever in its specified direction and
the hydraulic hoses to their specified ports.
HYDRAULIC UNIT AUXILIARY HYDRAULICS
To Next Page
