2. If
the hoses and clamps are found to be worn or
damaged, replace or repair them at once.

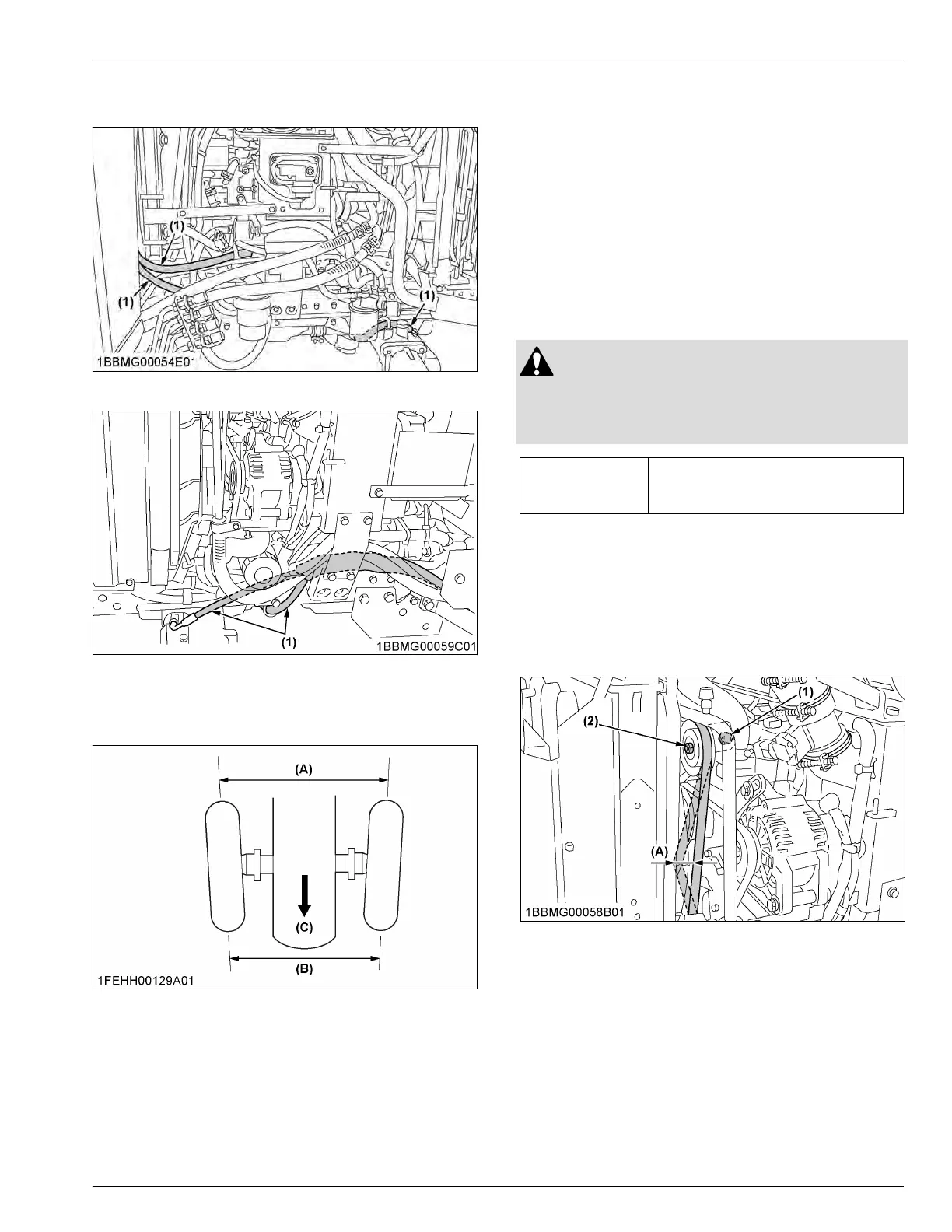

(1) Power steering pressure hoses
(1) Power steering pressure hoses
5. Adjusting toe-in
(A) Wheel-to-wheel distance at the rear
(B)
Wheel-to-wheel distance at the front
(C) “FRONT”
1. Park the tractor on a flat surface.
2. T
urn the steering wheel so that the front wheels are
in the straight ahead position.
3. Lower the implement, lock the park brake and stop
the engine.
4. Measure
the distance between the tire beads at the
front of the tire, at hub height.
5. Measure the distance between the tire beads at the
rear of the tire, at hub height.
6. The front distance should be 0 to 20 mm (0 to 0.79
in.) less than the rear distance. If not, adjust the tie
rod length.
7. If adjust the tie rod length, consult your local Kubota
Dealer.
6. Adjusting air conditioner belt
tension (CAB model)
WARNING
T
o avoid personal injury or death:
• Be sure to stop the engine and remove the key
before checking the belt tension.
Proper air condi-
tioner belt tension
A deflection of between 10 to 12 mm (0.4
to 0.48 in.) when the belt is pressed (98 N /
10 kgf / 22.1 lbs.) in the middle of the span.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between
pulleys.
3. If tension is incorrect, loosen the tension pulley
mounting nut and turn the adjusting bolt to adjust
the belt tension within acceptable limits.
4. Replace air conditioner belt if it is damaged.
(1) Adjusting bolt
(2)
Tension pulley mounting nut
(A) Check the belt tension
7. Cleaning inner air filter (CAB
model)
EVERY 200 HOURS PERIODIC SERVICE
