1. Remote control valve
There
are 2 types of remote valves available for these
models.
• Double acting valve.
• Double acting valve with float position:
This valve may be placed in the float mode with the
control lever all the way forward. The cylinder is
free to extend or retract, letting an implement such
as a loader bucket follow the ground.
NOTE :
• Double acting valve with float position cannot
be attached to the 1st position.

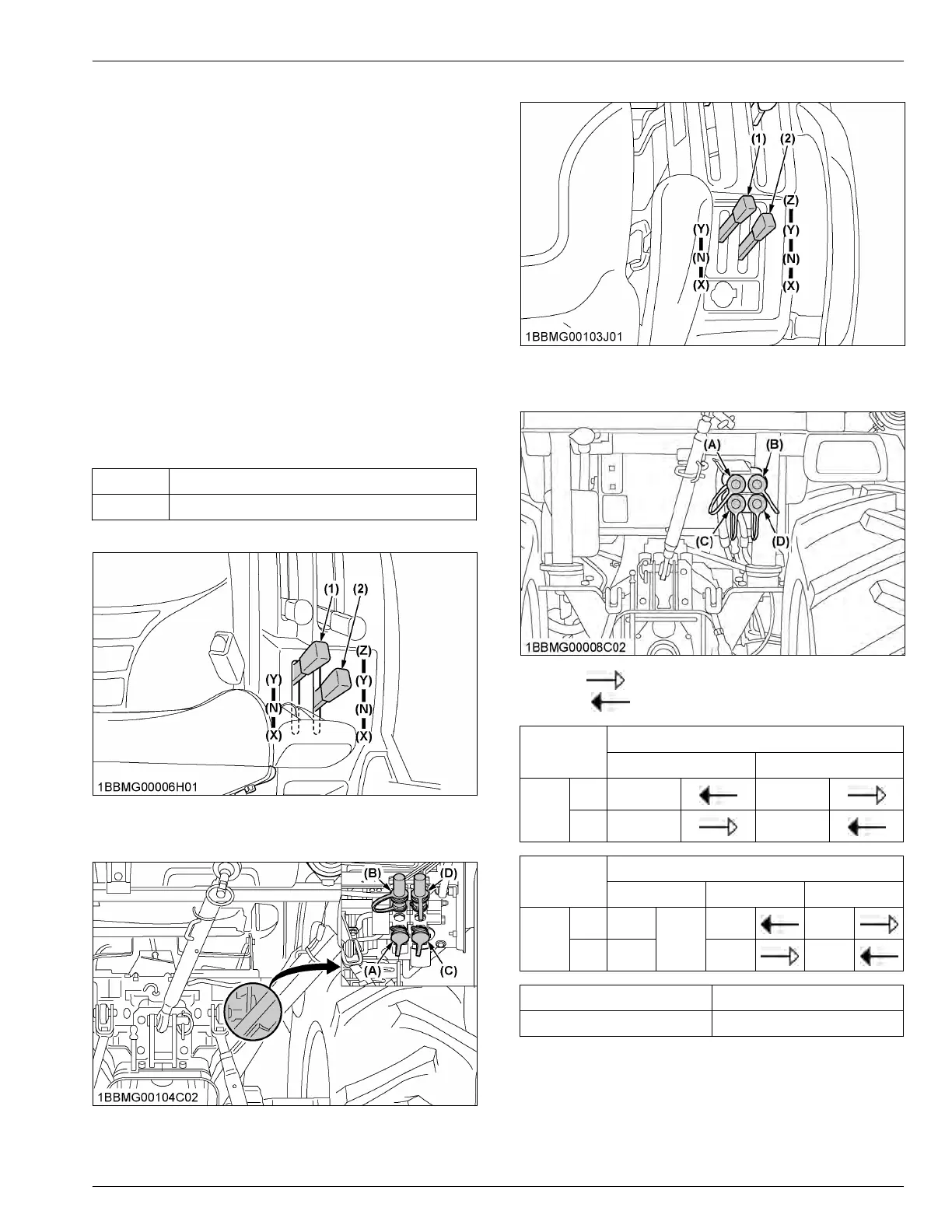

2. Remote control valve lever
The remote control valve lever directs pressurized oil
flow to the implement hydraulic system.
Example: Installing double segment valves
1st Double acting valve
2nd Double acting valve with float position
ROPS model
(1) Remote control valve lever 1
(2)
Remote control valve lever 2
ROPS model
CAB model
(1) Remote control valve lever 1
(2)
Remote control valve lever 2
CAB model
Pressure
Returning
Lever 1
Lever position
Y X
Port
(A) In Out
(B) Out In
Lever 2
Lever position
Z (detent) Y X
Port
(A) In
Float
In
Out
(B) Out Out
In
Coupler size
Port [A] [B] [C] [D] 1/4 NPTF
IMPORTANT :
• Do
not hold the lever in the “REARWARD” or
“FORWARD” position once the remote cylinder
has reached the end of the stroke, as this will
cause oil to flow through the relief valve.
REMOTE HYDRAULIC CONTROL SYSTEM (IF EQUIPPED) HYDRAULIC UNIT
LX2610,LX3310
87
