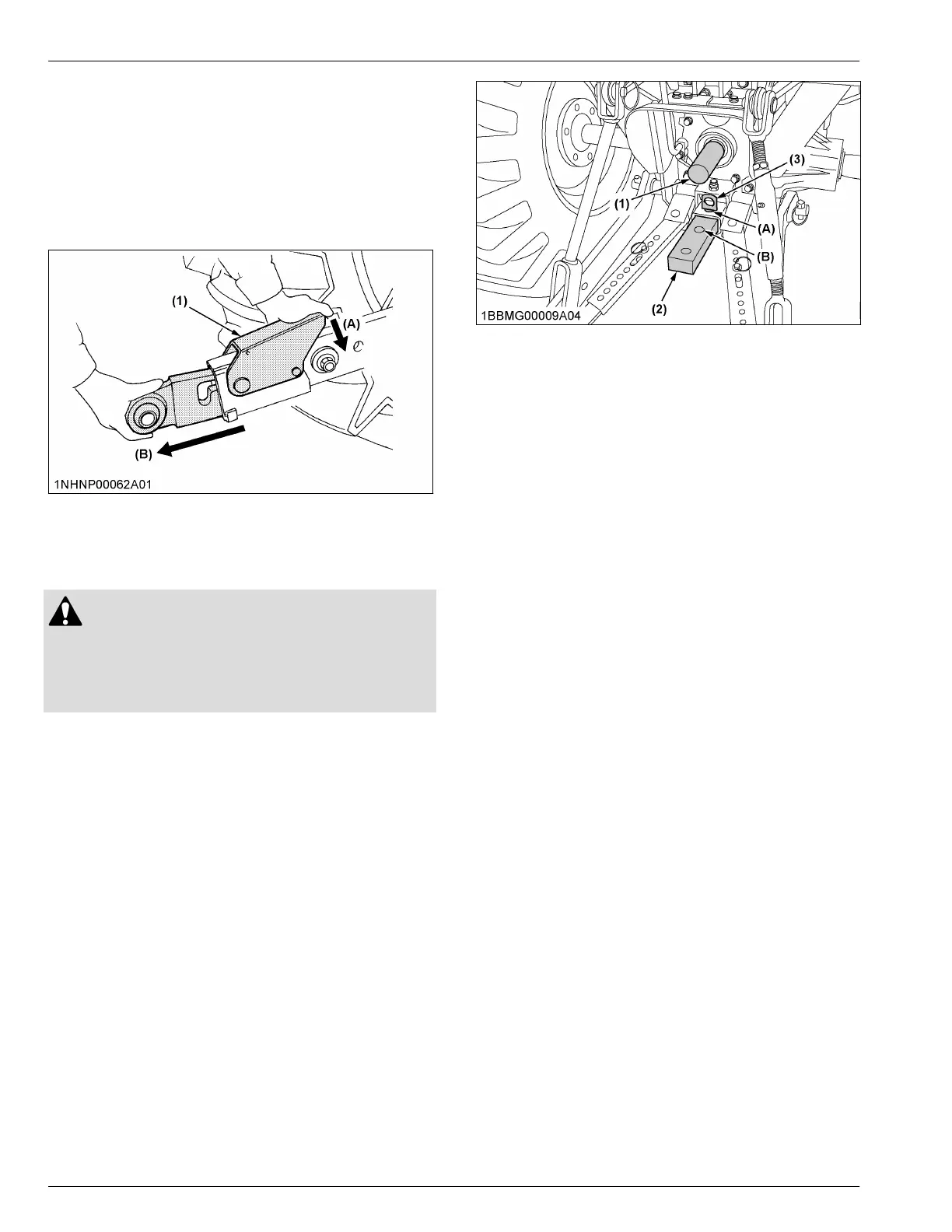

7. Telescopic lower links [CAB
model]
To attach an implement, follow the instructions below:
1. Push
the levers, pull out the lower link ends, and
attach to the implement.
2. Back up the tractor slightly to make sure the lower
links are pushed in securely.
(1) Lever (A) “PUSH”
(B) “PULL OUT”
DRAWBAR
WARNING
T
o avoid personal injury or death:
• Never pull from the top link, the rear axle or any
point above the drawbar. Doing so could cause
the tractor to tip over rearward.
1. Adjusting drawbar length
1. When
towing an implement, it is recommended that
hole (A) in drawbar be utilized.
2. For information about the drawbar load, read the
implement limitations section of this manual.
(See IMPLEMENT LIMITATIONS on page 35.)
(1) PTO Shaft cap
(2)
Drawbar
(3) Drawbar pin
(A) Hole
(B) Hole
3-POINT HITCH AND DRAWBAR THE 3-POINT HITCH SETUP
82
LX2610,LX3310

Kubota LX2610 Specifications

General

Engine Type	Diesel
Engine Horsepower	24.8 HP
PTO Horsepower	19.5 HP
Transmission Type	Hydrostatic
3-Point Hitch	Category I
Lift Capacity at 24 inches behind lift point	1, 323 lbs
Drive	4WD
Cylinders	3
Fuel Type	Diesel
PTO Speed	540 RPM
Hydraulic System Type	Open center
Width	54.9 inches
Height	87.4 inches
Number of Gears	3-range
Tire Size (Front)	25x8.50-14
Tire Size (Rear)	11.2-24
