HYDRAULIC UNIT
3-POINT HITCH CONTROL
SYSTEM
WARNING
T
o avoid personal injury or death:
• Before using the 3-point hitch controls, ensure
that no person or object is in the area
surrounding the implement or 3-point hitch. Do
not stand on or near the implement or between
the implement and tractor when operating the 3-
point hitch controls.
1. Position control
This will control the working depth of 3-point hitch
mounted
implement regardless of the amount of pull
required.

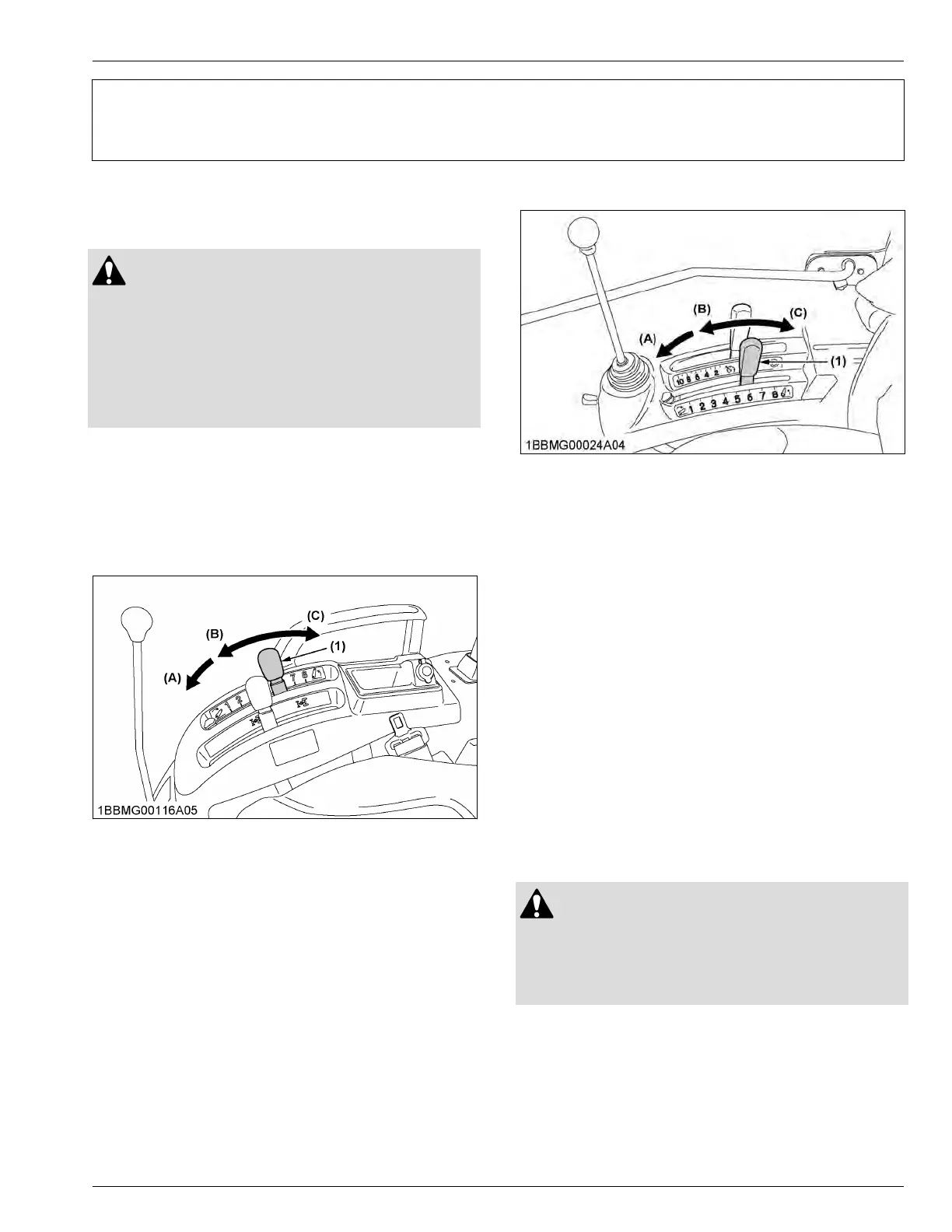

ROPS model
(1) Position control lever (A) “FLOAT”
(B)
“DOWN”
(C) “UP”
CAB model
(1) Position control lever (A) “FLOAT”
(B)
“DOWN”
(C) “UP”
IMPORTANT :
• If
the 3-point hitch can not be raised by setting
the hydraulic control lever to the “UP” position
after long term storage or when changing the
transmission oil, turn steering wheel to the right
and left several times to bleed air from the
system.
• Do not operate until the engine is warmed up. If
operation is attempted when the engine is still
cold, the hydraulic system may be damaged.
• If noises are heard when implement is lifting
after the hydraulic control lever has been
activated, the hydraulic mechanism is not
adjusted properly.
Unless corrected, the unit will be damaged.
Contact your KUBOTA Dealer for adjustment.
2. 3-point hitch lowering speed knob
WARNING
T
o avoid personal injury or death:
• A fast lowering speed may cause damage or
injury. The lowering speed of the implement
should be adjusted to 2 or more seconds.
The lowering speed of the 3-point hitch can be
controlled by adjusting the 3-point hitch lowering speed
knob.
3-POINT HITCH CONTROL SYSTEM HYDRAULIC UNIT
