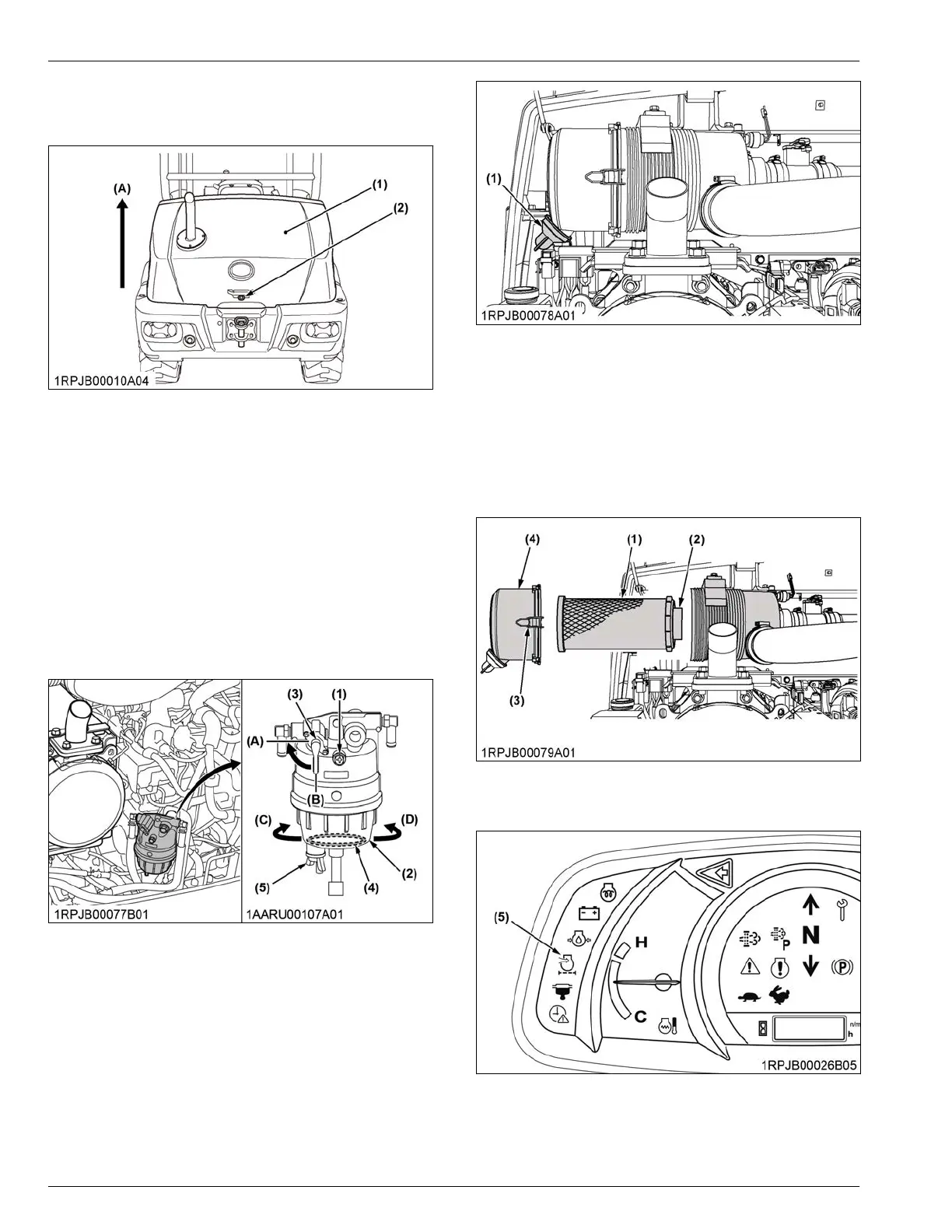

1. Open the engine cover.
(See
Opening and closing the engine cover on
page 95)
(1) Engine cover
(2)
Key hole
(A) Open
2. Check the red float.
When
the separated water is entering the sediment
cup, the red float moves upwards.
3. When the red float moves upwards, close the
shutoff-valve so that no fuel can run out.
4. Now loosen the drain plug, and drain the water.
IMPORTANT :
• Collect drained water in an oil pan or the
like.
5. Finally, do not forget to open the shutoff-valve after
drain of the water was over.
(1) Screw
(2) Cup
(3) Shutoff-valve
(4) Red float
(5) Drain plug
(A) Close
(B) Open
(C) Loosen
(D) Tighten
16. Cleaning the evacuator valve
1. Open
the evacuator valve to get rid of large
particles of dust and dirt.
(1) Evacuator valve
17. Checking the dust indicator
1. If
the air-cleaner warning indicator on the
instrument panel lights up, clean the air-cleaner
element immediately.
(See Cleaning and checking the air cleaner element
on page 108)
(1) Outer filter element
(2)
Inner element
(3) Clamp
(4) Air cleaner cover
(5) Air cleaner warning indicator
