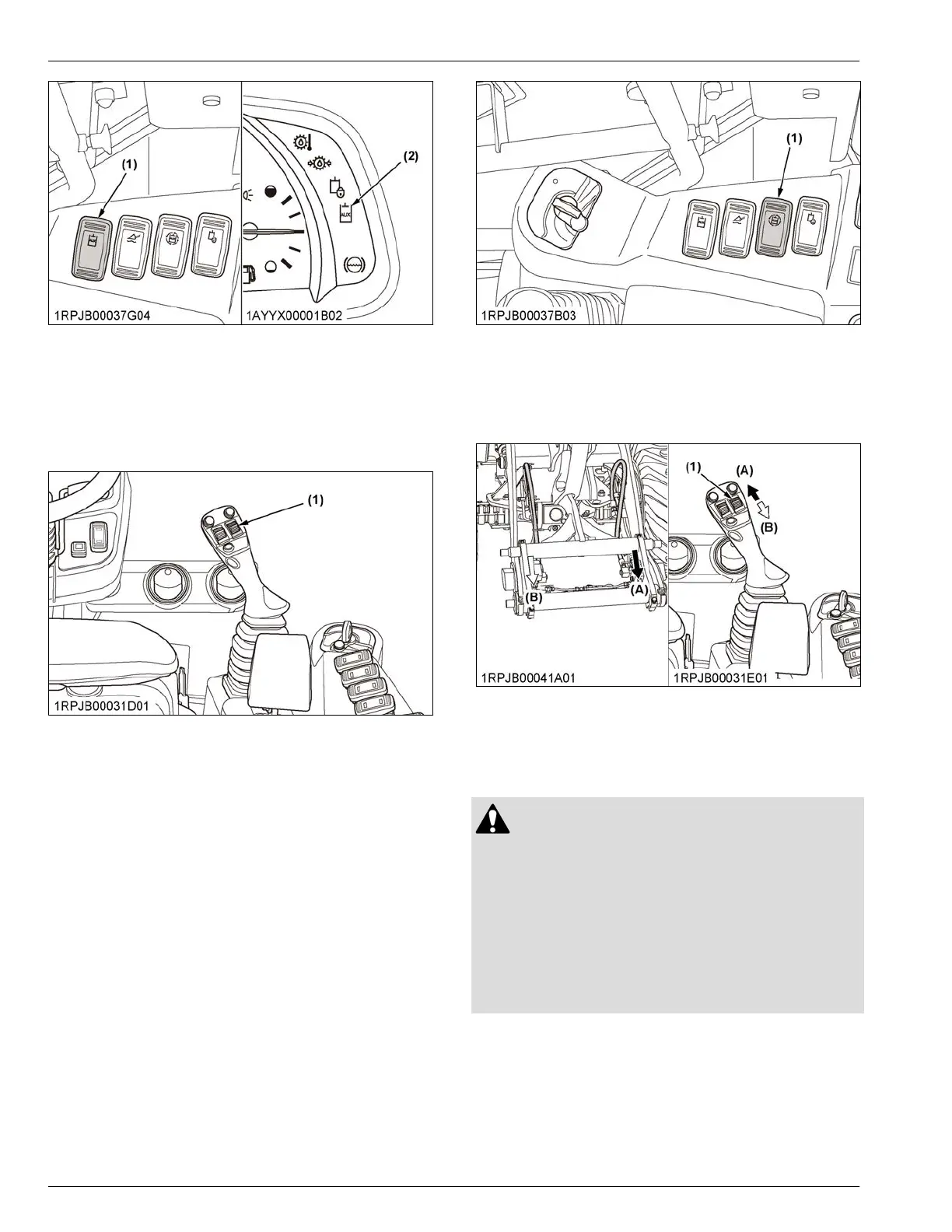

(1) AUX port enable switch (2) AUX operation indicator
13. AUX port variable switch
With the AUX port unlocked, flow rate of the hydraulic
oil
varies depending on the tilt angle of the AUX-port-
variable-switch.
(1) AUX port variable switch
14. AUX hold switch
1. Operating
the AUX-hold-switch results a maximum
oil flow to the port-A.
2. When you operate the AUX-hold-switch again, the
oil flow discontinues. Thus, you can operate, for
example a sweeper without having to continuously
hold the AUX-port-variable-switch forward port-A.
(1) AUX hold switch
NOTE :
• AUX-hold-switch
will be canceled, if you
operate the AUX-port-variable-switch when
press the AUX-hold-switch.
(1) AUX port variable switch (A) To Port-A
(B)
To Port-B
15. Float switch
WARNING
T
o avoid personal injury or death:
• Make sure that the bucket is lowered to the
ground before putting the lift arms in the
“FLOAT” position. Putting the lift arms in the
“FLOAT” position while they are off the ground
will cause the bucket and lift arms to fall and is
extremely dangerous.
• Do not drive the machine forward with the lift
arms in the “FLOAT” position.
To fix the float position, press the float switch and the
control lever can be held in the float position.
