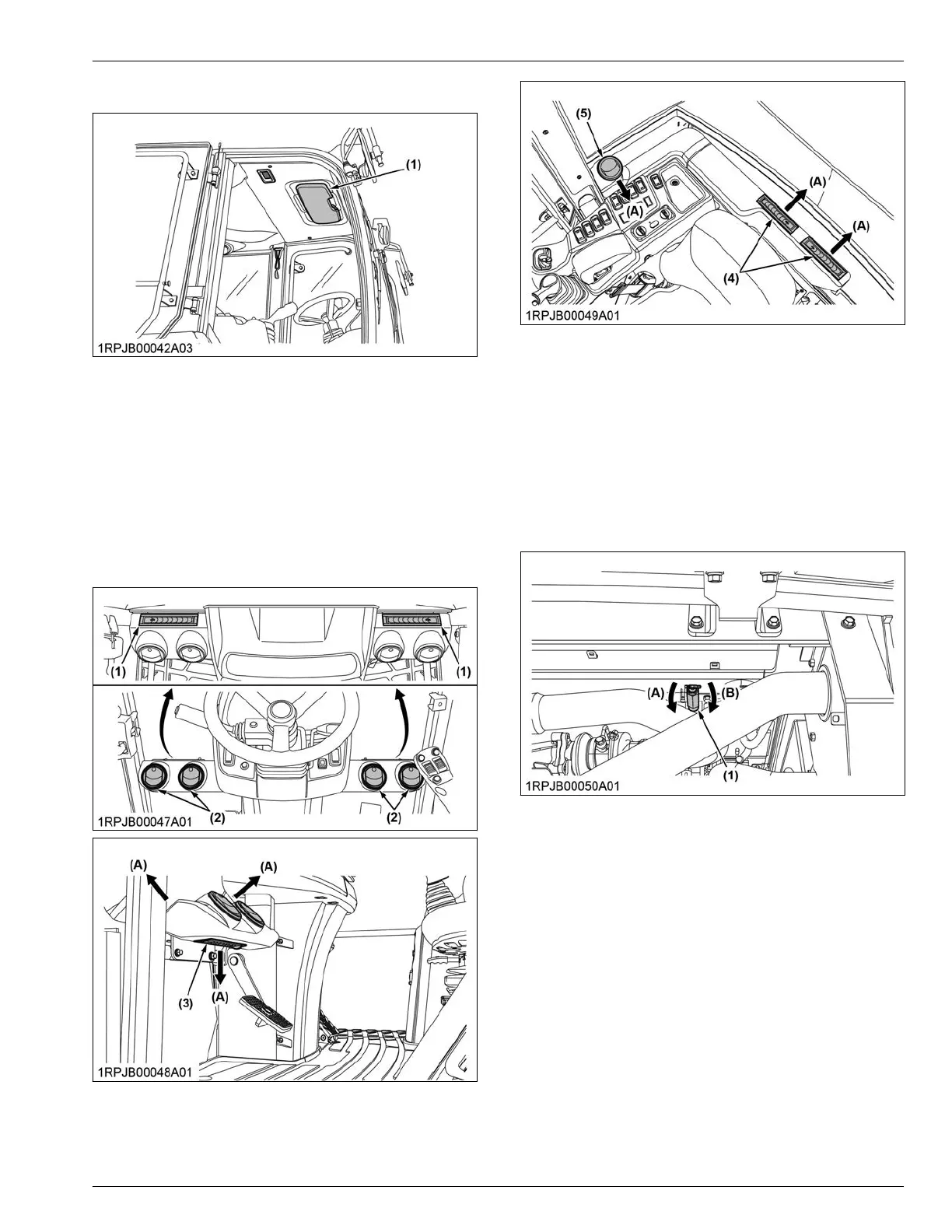

7. Sun visor [Cabin type only]
(1) Sun visor
CHECKS FOR THE AIR
CONDITIONER
1. Air flow of the air conditioner
[Cabin type only]
Air in the cabin and fresh air introduced into the cabin
flow
as shown in the following figure. Adjust the 11 air
ports to obtain the desired condition.
(1) Wind shield (for defrost of
front window)
(2) Chest area
(3) Foot area
(4) Wind shield (for defrost of
rear window)
(5) Chest area (rear)
(A) Air direction
IMPORTANT :
• Do
not pour water directly into the fresh-air-port
while washing the vehicle.
• During the summer, turn the heater valve
clockwise to close the valve.
(1) Heater valve (A) Open
(B)
Close
1.1 Recirculation / fresh air selection lever
[Cabin type only]
Turn the recirculation / fresh air selection lever, and you
can
switch “RECIRCULATION” and “FRESH AIR” each
other.
FRESH AIR
Fresh air will flow into the cabin. This is helpful
when you work in dusty condition or if the glass
windows get foggy.
RECIRCULATION
In-cabin air will be recirculated. This is useful for
cooling or heating the cabin quickly or keeping it
extra cool or warm.
CABIN TYPE MACHINE
CHECKS BEFORE STARTING THE MACHINE
