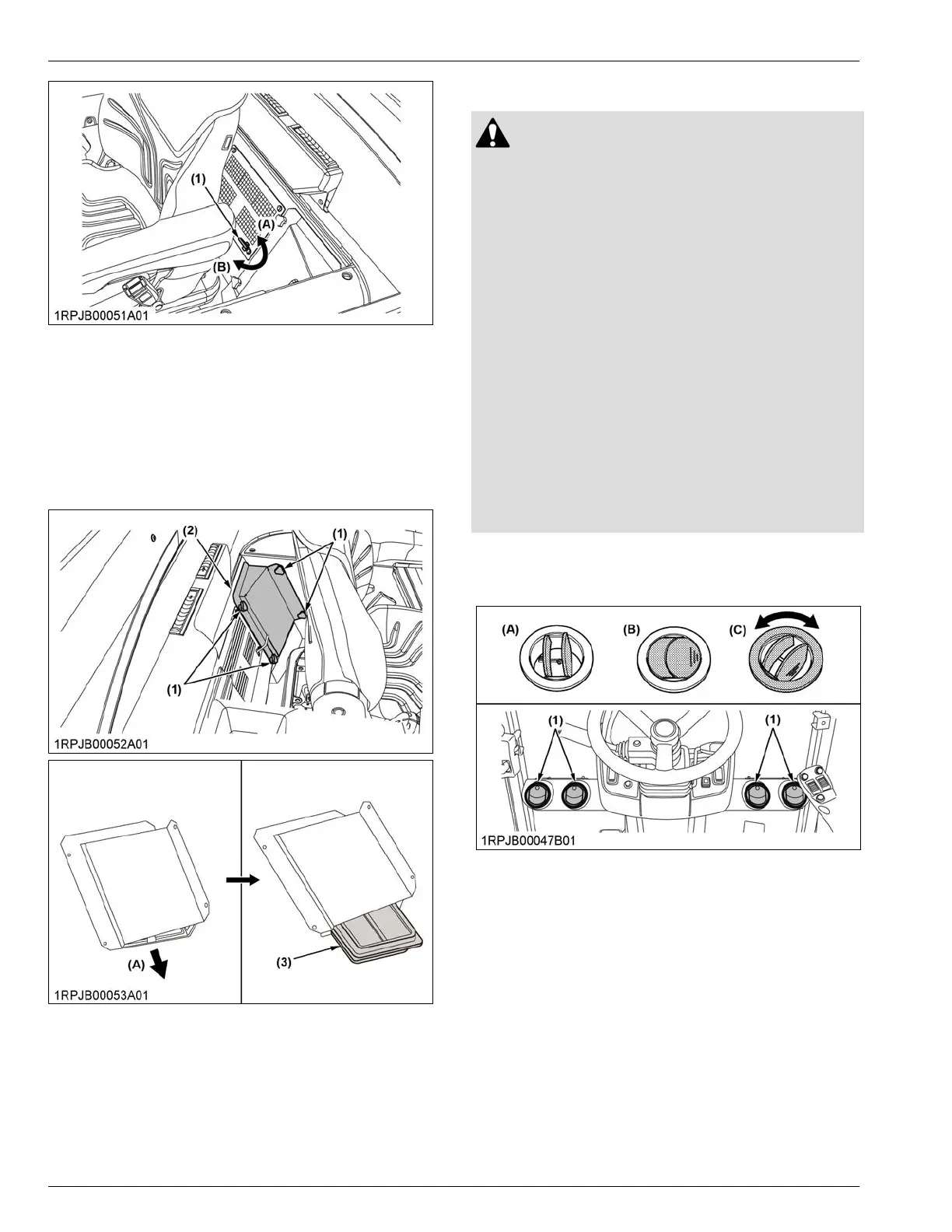

(1) Recirculation / fresh air se-
lection lever
(A) RECIRCULATION position
(B) FRESH AIR position
1.2 How to change the filter of air
conditioner [Cabin type only]
1. T
o replace the filter, loosen the knob bolts first and
then remove the cover as shown in the following
figures.
(1) Knob bolt
(2)
Cover
(3) Filter
(A) Pull
2. Air control vent [Cabin type only]
WARNING
T
o avoid personal injury or death:
• Daily inspection
Have the wheel loader repaired immediately if
any of the following malfunctions are
discovered. Such malfunctions may cause
burns or injury. They may also cause engine
seizure or other serious failure.
– Scratches, cracks, or swelling in water
hoses
– Water leakage at water-hose joints
– Missing or damaged water-hose protective
wrap or grommets
– Loose mounting bolts and damaged
brackets
• Do not touch the water hoses and the heater
with your hand. You may get burned.
• If the window fails to defrost in extreme
conditions or becomes cloudy when
dehumidifying the cabin, wipe off moisture with
a soft cloth.
Dashboard air outlet
Y
ou can independently adjust the air outlets of
dashboard as required.
(1) Air outlets (A) Open
(B)
Shut
(C) Turn
IMPORTANT :
•
Replace the water hoses every 2 years.
• Do not block all the air outlets of the air
conditioner. A problem could occur.
CHECKS BEFORE STARTING THE MACHINE
CHECKS FOR THE AIR CONDITIONER
