Rating Applied circuit
(27) 15 A Rear wiper / Rear washer
(28) 15 A Radio (AC)
(29) 15 A Electrical outlet
(30) 10 A Compressor
(31) not used
(32) 10 A Stop lamp
(33) 20 A High beam
(34) 15 A Hazard lamp
(35) 20 A Head lamp
(36) not used
(37) not used
(38) not used
(39) not used
(40) 5 A Flasher
(41) 5 A Fuel pump
(42) 5 A Relay float
(43) 5 A Main ECU (AC)
(44) 10 A Alternator
(45) 30 A Work lamp
(46) 30 A Electrical outlet (sub, +B)
(47) 5 A Headlamp switch
(48) not used
(49) not used
(50) not used
(51) 5 A Engine ECU
(52) 10 A Reverse lamp / Reverse buzzer

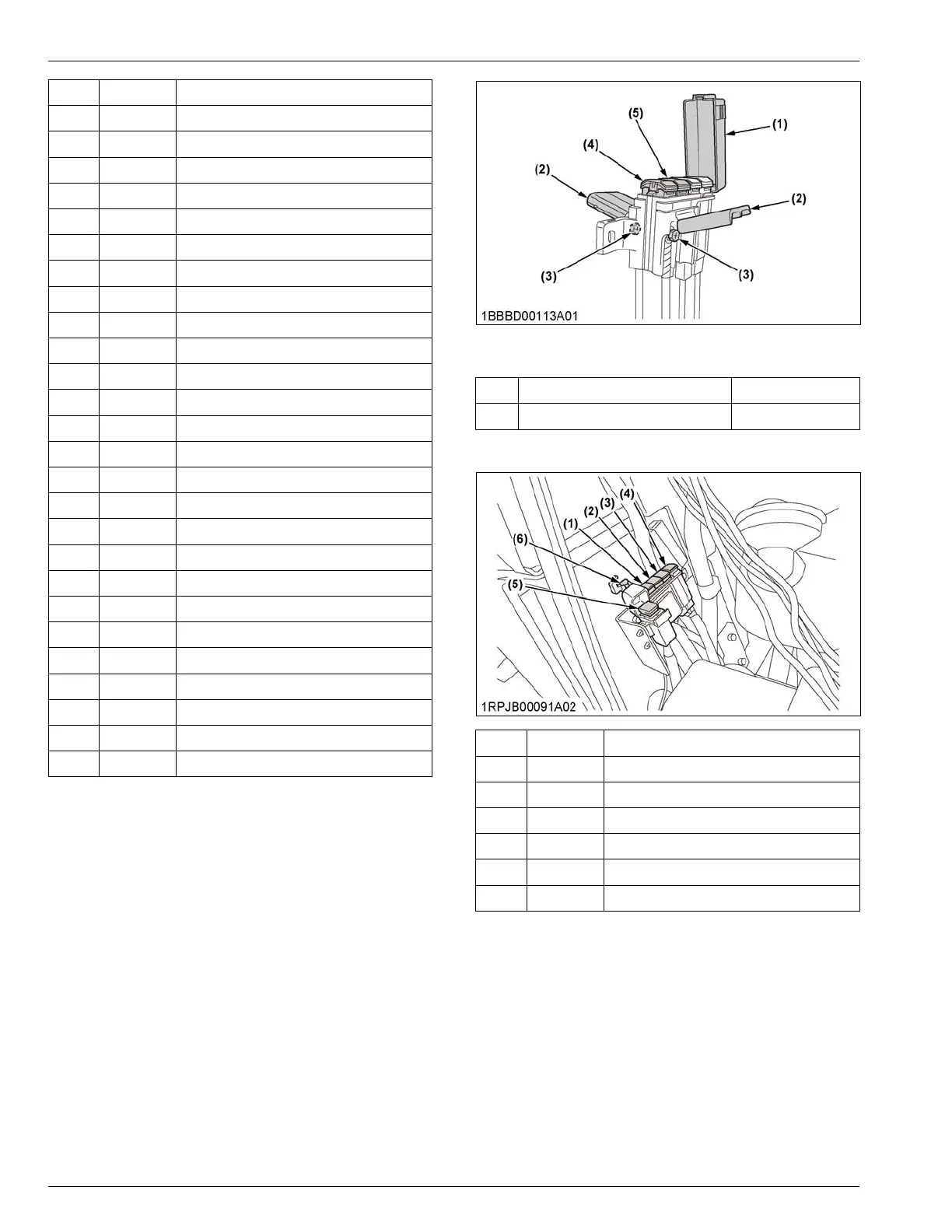

1.2 Replacing the slow blow fuses
1. Disconnect the negative cord of the battery.
2.
Remove the slow-blow-fuse case.
3. Open the slow-blow-fuse-case cap and the cover
then remove the bolts and draw out the slow-blow-
fuse 1 and 2.
(1) Slow blow fuse case cap
(2) Cover
(3) Bolt
(4) Slow blow fuse 1 Alternator
(5) Slow blow fuse 2 Main 1
• Slow blow fuse
Rating Applied circuit
(1) 100 A Alternator
(2) 60 A Main 1
(3) 50 A Main 2
(4) 50 A Main 3
(5) 30 A Engine ECU
(6) 10 A Main ECU (+B)
IMPORTANT :
– The
main fuse protects the entire
electrical system. If the main fuse or
another fuse has blown, determine why it
blew and repair anything necessary.
Never bridge the fuses, always replace
them with a new fuse of the same rating.
PERIODIC SERVICE SERVICING AS REQUIRED
122
R540
