Kubota R540 User Manual

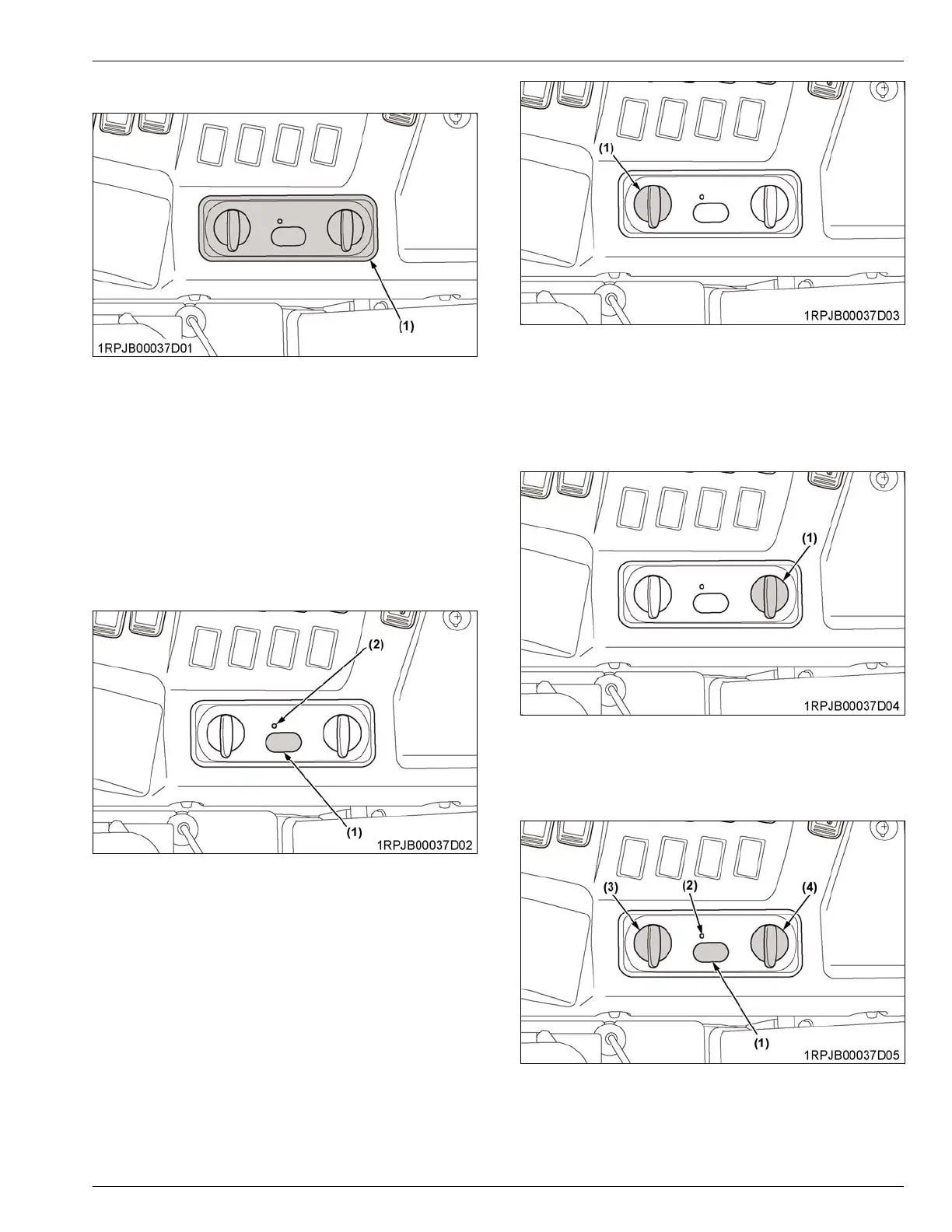

3. Control panel [Cabin type only]
(1) Control panel
3.1 Air conditioner switch and indicator
light [Cabin type only]
1. Push
the air-conditioner-switch to activate the air
conditioner.
An indicator light will light up when the air-
conditioner-switch is set to “ON”.
2. Push the air-conditioner-switch again to turn the air
conditioner off.
The indicator light will go off.
(1) Air conditioner switch (2) Indicator light
3.2 Temperature control dial [Cabin type
only]
Set the temperature-control-dial at the desired position
to obtain the desired air temperature.
• T
urn the temperature-control-lever to the left to
obtain cooler air.
• Move the temperature-control-dial to the right to
obtain warmer air.
(1) Temperature control dial
3.3 Blower switch [Cabin type only]
You can change the air volume in 3 steps. At the [3]
position
of the blower switch, you can obtain the largest
air volume.
(1) Blower switch
3.4 Operating the control panel [Cabin type
only]
(1) Air conditioner switch
(2)
Indicator light
(3) Temperature control dial
(4) Blower switch
CHECKS FOR THE AIR CONDITIONER
CHECKS BEFORE STARTING THE MACHINE
R540
51
