MACHINE PARTS

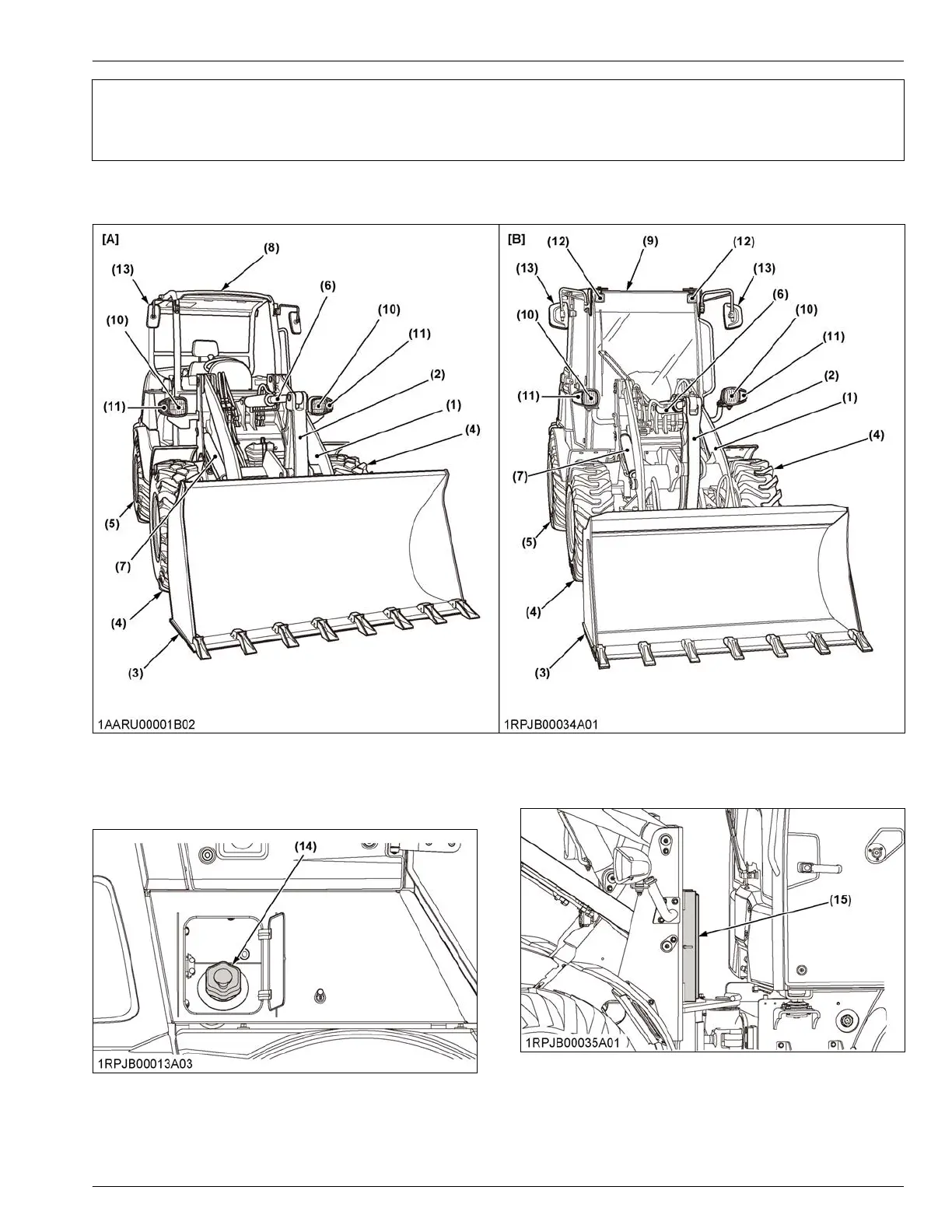

DESCRIPTION OF MACHINE PARTS
(1) Lift arm
(2)
Bell crank
(3) Bucket
(4) Front wheel
(5) Rear wheel
(6) Bucket cylinder
(7) Lift cylinder
(8) ROPS/FOPS canopy
(9) ROPS/FOPS cabin
(10) Headlight
(11) Turn signal light / Clearance
light
(12) Working light
(13) Rearview mirror
[A] Canopy
[B] Cabin
Right side
(14) Fuel tank cap
(15) Lift arm support
DESCRIPTION OF MACHINE PARTS  MACHINE PARTS
R540
29
