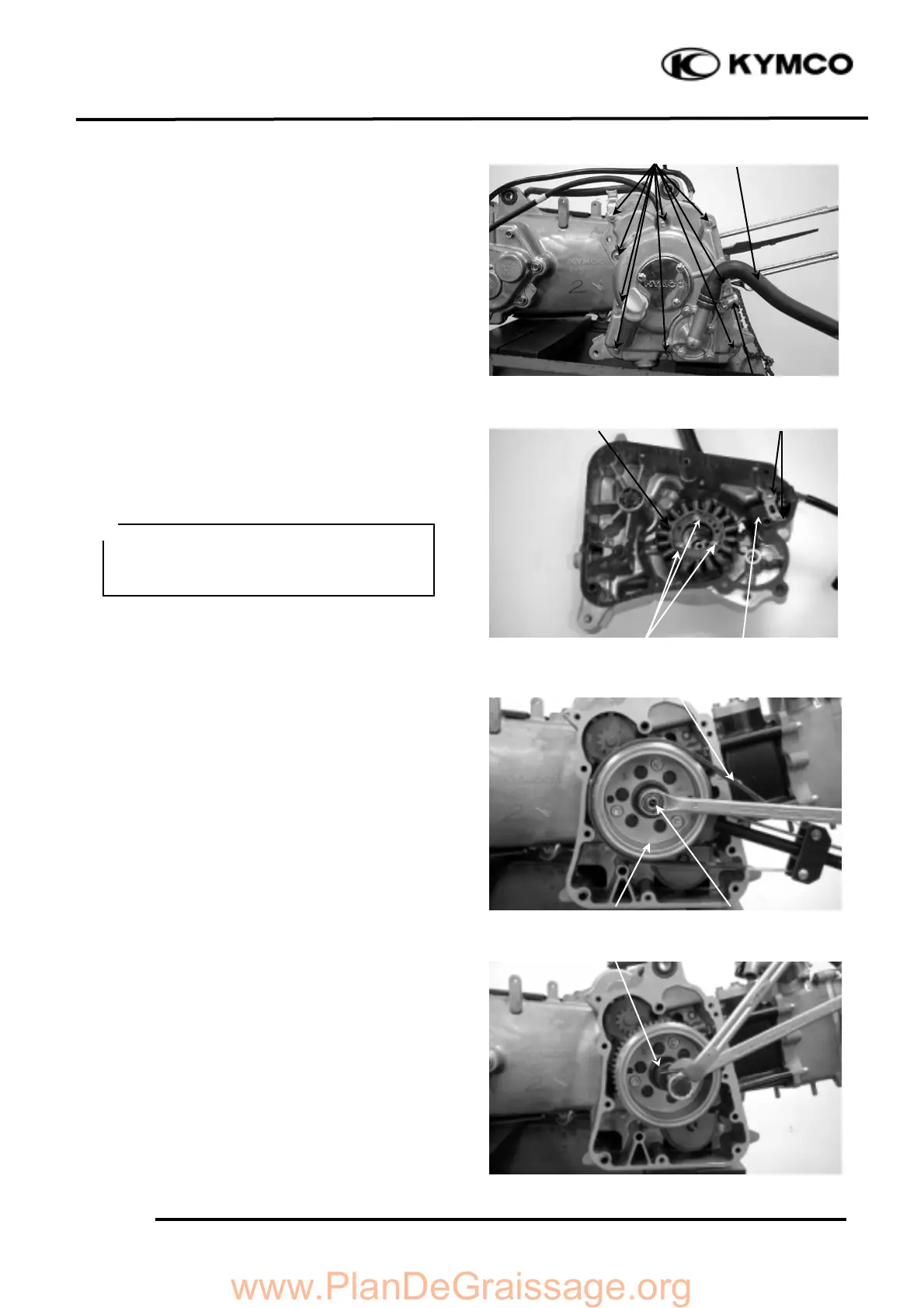

10. A.C. GENERATOR/STARTER CLUTCH

10-3

Bet & Win 2 50

RIGHT CRANKCASE COVER

REMOVAL

Disconnect the water hoses from the right

crankcase cover.

Remove the nine bolts attaching the right

crankcase cover and the cover.

STATOR REMOVAL

Remove the two pulser coil attaching screws

and the pulser coil.

Remove the three A.C. generator stator bolts

and the stator.

FLYWHEEL REMOVAL

Hold the flywheel with a flywheel holder and

remove the flywheel nut.

Remove the flywheel with a flywheel puller.

Water Outlet Hose

Bolts

Flywheel

Nut

Flywheel Holder

When removing the pulser coil and

stator, be careful not to damage them to

avoid shorted or broken wire.

＊

Water Inlet Hose

Screws

Bolts

Pulser Coil

A.C. Generator Stator

Flywheel Puller
