19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS
19-3
Bet & Win
125 /150
SWITCHES

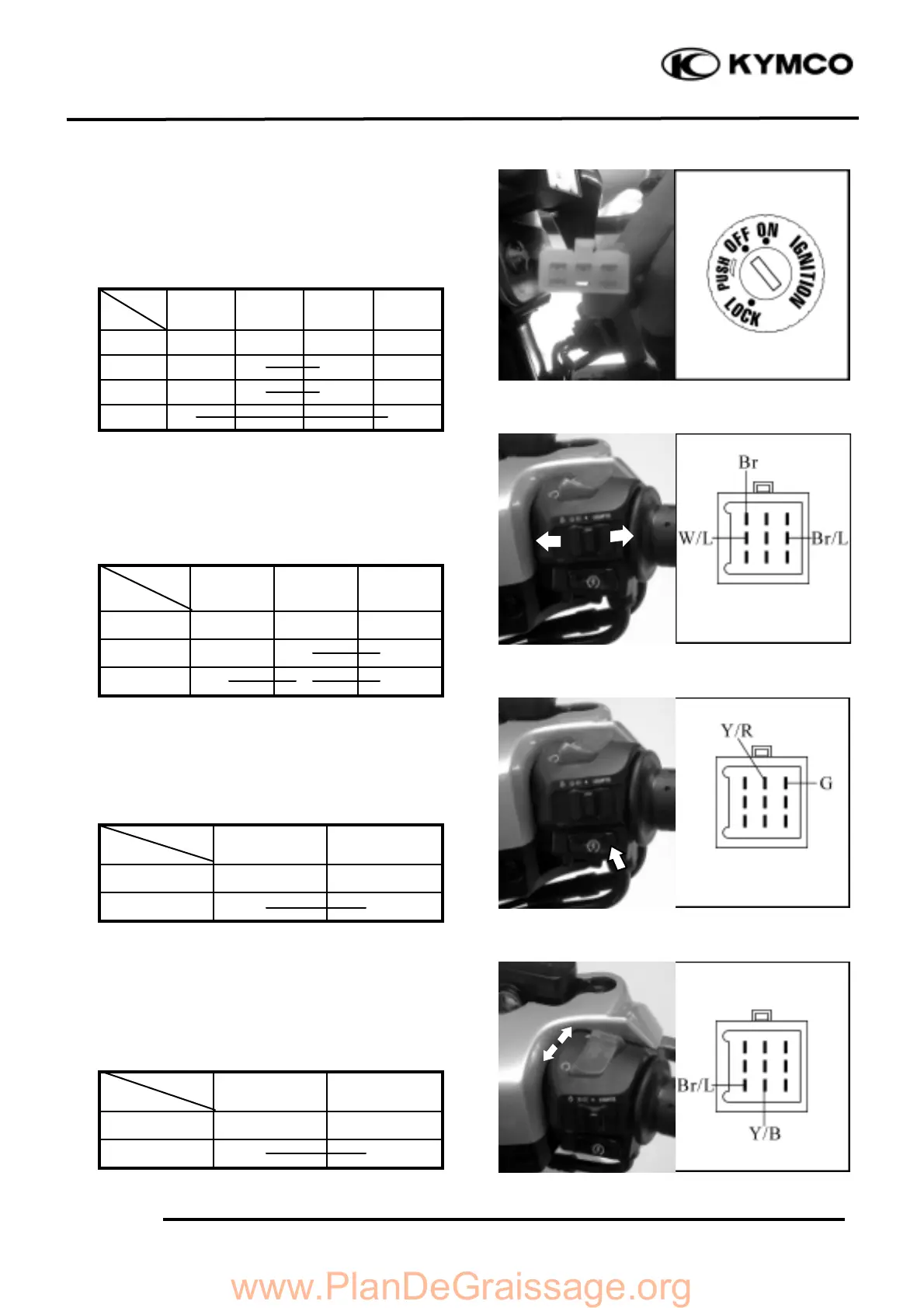

IGNITION SWITCH INSPECTION
Remove the frame front covers. (
!
2-5)
Disconnect the ignition switch wire couplers.
Check for continuity between the wire
terminals.
Color
Position
Red2
Black/Wh
ite
Green
Black
PARK
LOCK
○
○
OFF
○
○
ON
○
○
HEADLIGHT SWITCH INSPECTION
Remove the frame front covers. (
!
2-5)
Disconnect the headlight switch wire
couplers. Check for continuity between the
wire terminals.
Color
Position
White /
Blue
Brown/
Blue
Brown
n
P
○
○
H
○
○
○
STARTER SWITCH INSPECTION
Remove the frame front covers. (
!
2-5)
Disconnect the starter switch wire couplers.
Depress the starter button and check for
continuity between the wire terminals.
Color
Position
Yellow/Red
Green
FREE
PUSH
○
○
ENGINE STOP SWITCH
Remove the front upper cover. (
!
2-5)
Disconnect the wire couplers.
Checks for continuity between the engine
stop switch wire terminals.
Color
Position
Yellow/Black
Gray
OFF
ON
○
○
Starter Switch
