13. FUEL SYSTEM/CARBURETOR/

FUEL PUMP/ FUEL TANK

13-16

Bet & Win 2 50

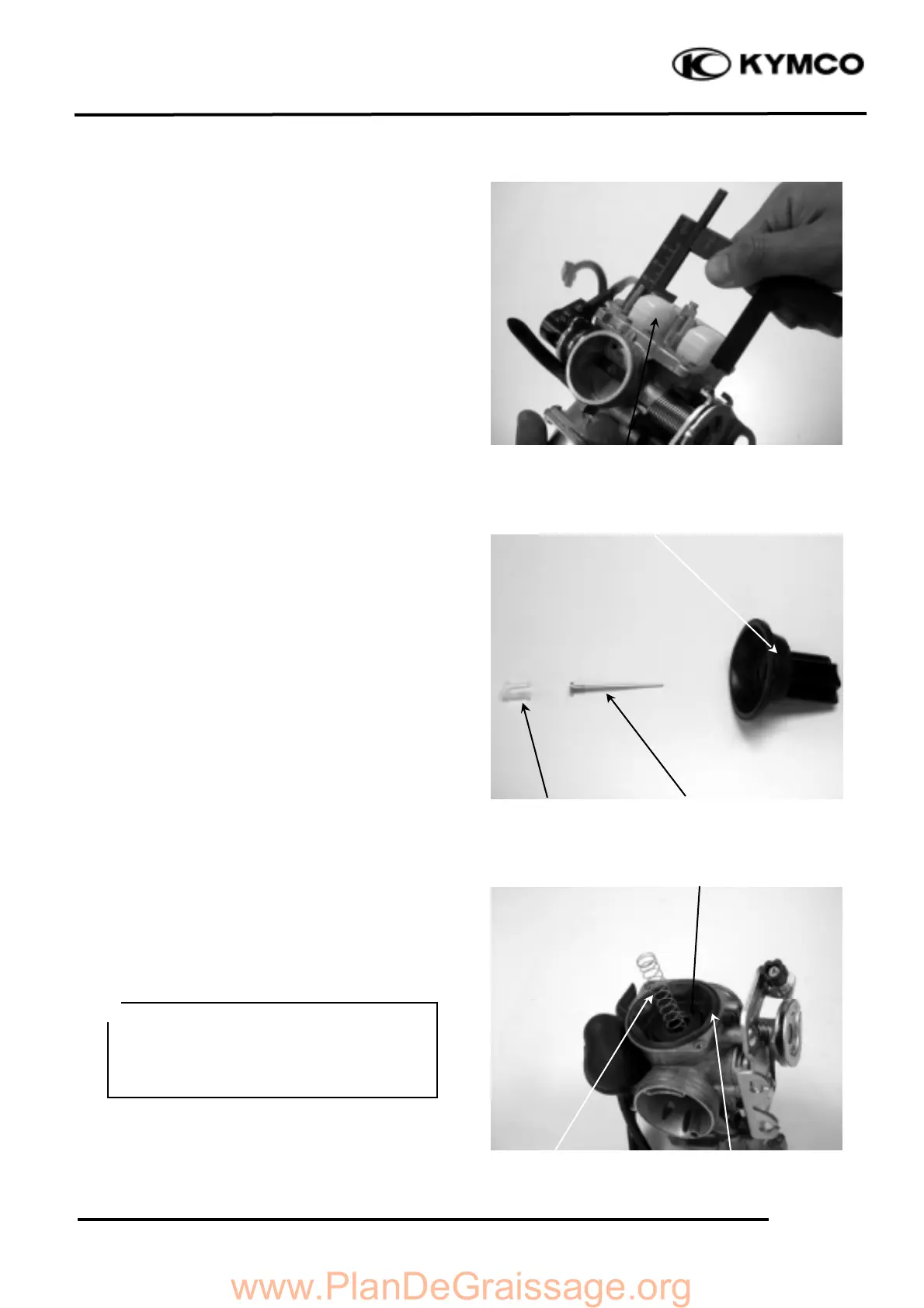

FLOAT LEVEL INSPECTION

Measure the float level at the location of the

main jet (just contacting the float valve).

Float Level: 18.5±1.0mm

Replace the float if the level is incorrect.

Check the operation of the float and then

reinstall the float chamber.

VACUUM CHAMBER ASSEMBLY

First install the jet needle and spring into the

vacuum chamber and then install the needle

holder.

Install the vacuum piston into the carburetor

body.

Install the spring.

Install the vacuum chamber cover and tighten

it with the two screws.

Diaphragm

Float

• Be careful not to let the diaphragm slip.

• If the diaphragm cannot be positioned

correctly because of expansion, dry the

diaphragm before installation.

＊

Spring

Vacuum Piston

Needle Holder

Jet Needle
