18. STARTING SYSTEM
18-5
Bet & Win 2 50

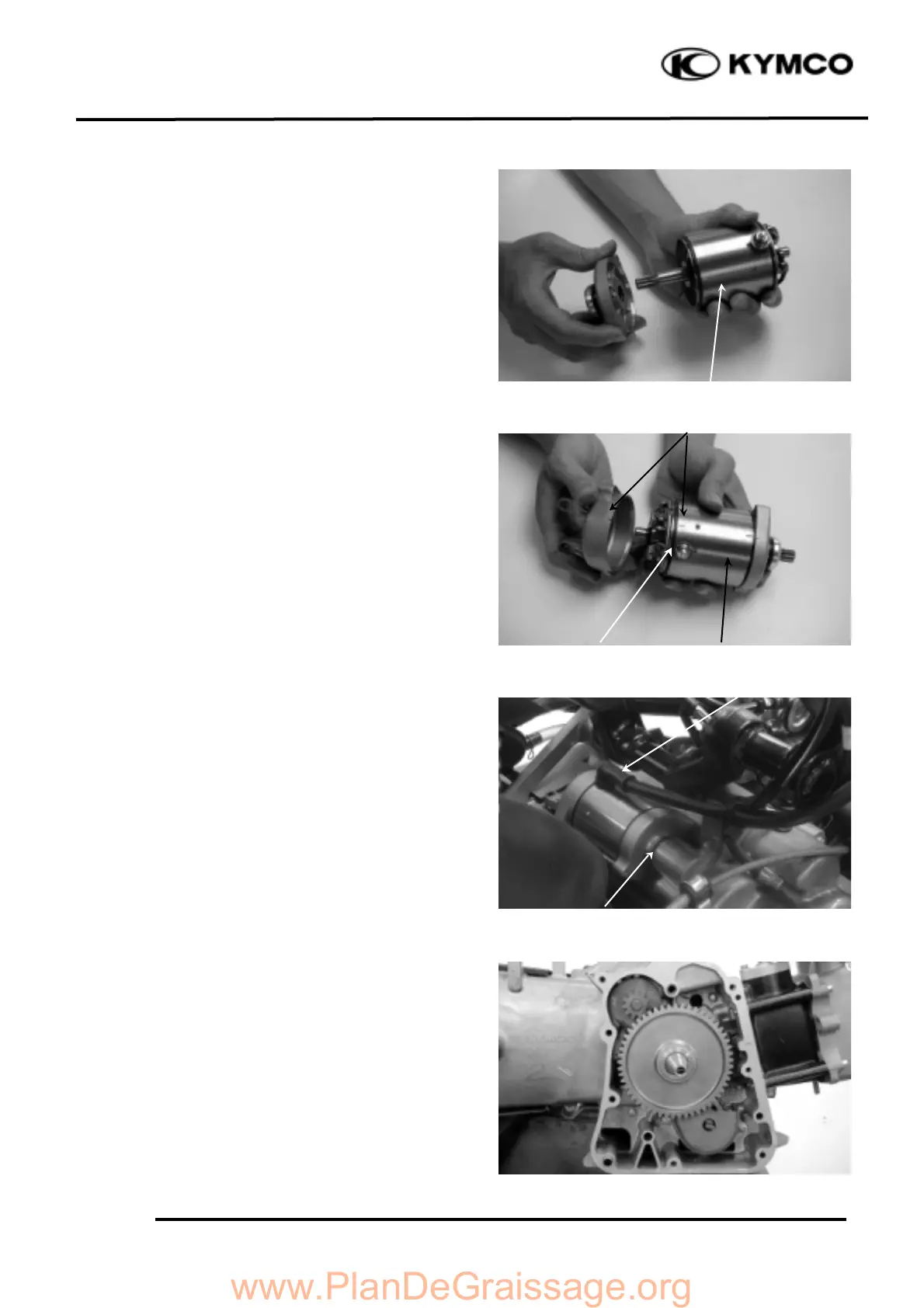

ASSEMBLY
Apply grease to the dust seal in the front
cover.
Install the brushes onto the brush holders.
Apply a thin coat of grease to the two ends
of the armature shaft.
Insert the commutator into the front cover.
Install a new O-ring to the front cover.
Install the starter motor case, aligning the tab
on the motor case with the groove on the
front cover.
Tighten the starter motor case screws.
INSTALLATION
Connect the starter motor cable.
Check the O-ring for wear or damage and
replace if necessary.
Apply grease to the O-ring and install it to
the starter motor.
Tighten the two mounting bolts.
STARTER CLUTCH INSPECTION
Refer to pages 10-4 and 10-5 for the starter
clutch removal, inspection and installation.
AC 110V
Starter Motor Cable
Mark
Motor Case
O-ring
O-ring
Motor Case
