13. FUEL SYSTEM/CARBURETOR/

FUEL PUMP/ FUEL TANK

13-7

Bet & Win 2 50

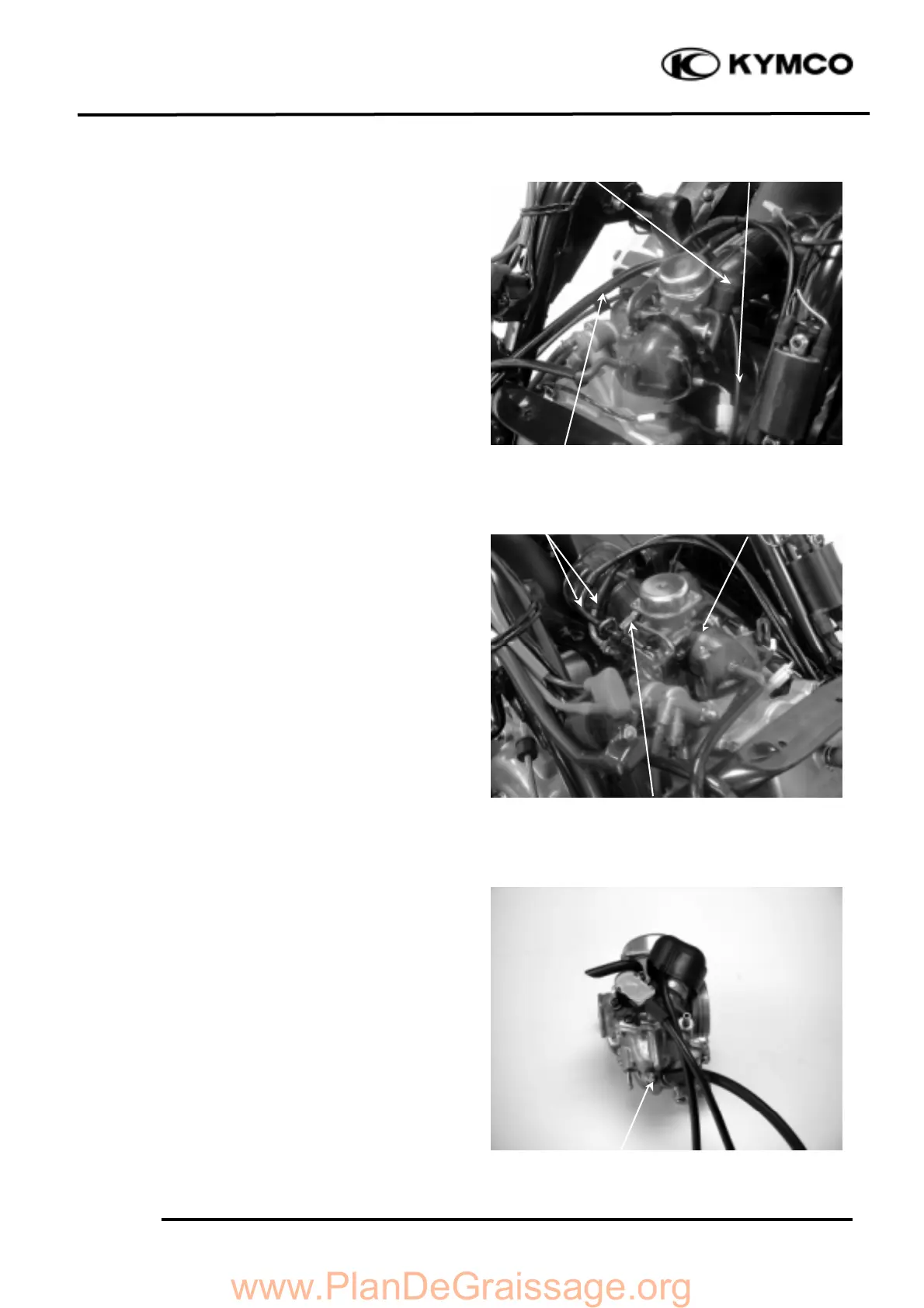

CARBURETOR REMOVAL

Remove the seat, met-in box and center

cover.

Disconnect the fuel tube and vacuum tube at

the carburetor.

Disconnect the auto bystarter wire.

Loosen the throttle cable adjusting nut and

lock nut, and disconnect the throttle cable

from the carburetor.

Loosen the air cleaner connecting tube band

and carburetor intake manifold band and then

remove the carburetor.

VACUUM CHAMBER

DISASSEMBLY

Loosen the drain screw and drain the fuel

from the float chamber.

Auto Bystarter Wire

Auto Bystarter

Fuel Tube

Intake Manifold Band

Air Cleaner Connecting Tube Band

Drain Screw

Throttle Cable
