2. EXHAUST MUFFLER/FRAME COVERS

2-3

Bet & Win 2 50

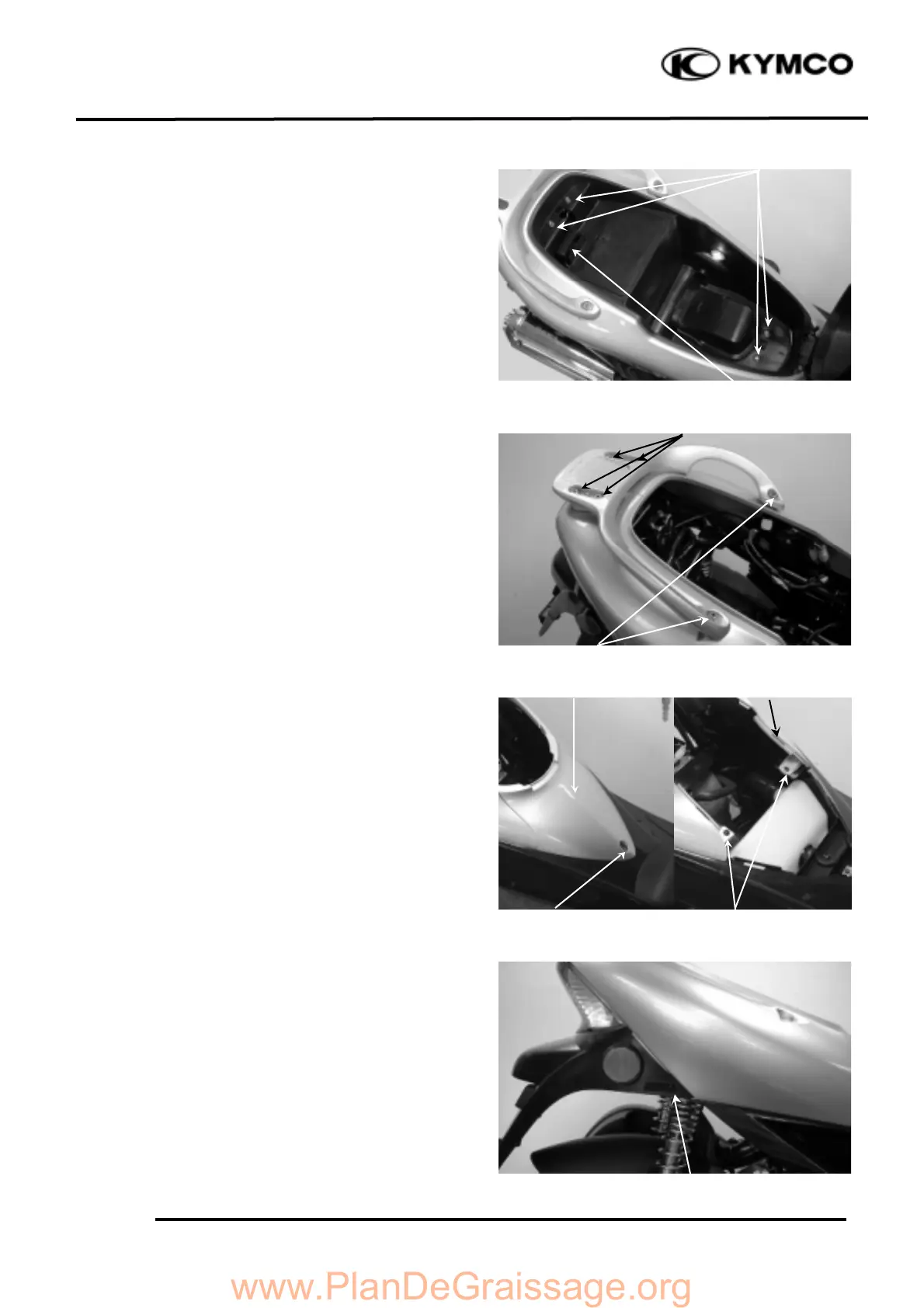

FRAME COVERS REMOVAL

REAR CARRIER & HAND RAIL

REMOVAL

Remove the met-in box:

First remove the two bolts and two nuts

attaching the met-in box.

Remove the battery and fuse.

Remove the met-in box.

Remove the hand rail right and left lock hex

bolts.

Remove the four hex bolts

Remove the rear carrier and hand rail.

FRAME BODY COVER REMOVAL

Remove the one screws on the bottom of the

center cover.

Remove the center cover.

Remove the two screws attaching the front

part of the frame body cover.

Remove the right and left screws on the rear

part of the frame body cover.

Disconnect the seat lock wire.

Remove the frame body cover.

Fuse

Screws

Bolts/Nuts

Hex Bolts

Frame Body Cover

Center Cover

Screws

Hex Bolts
