13. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK
13-18
Bet & Win 2 50

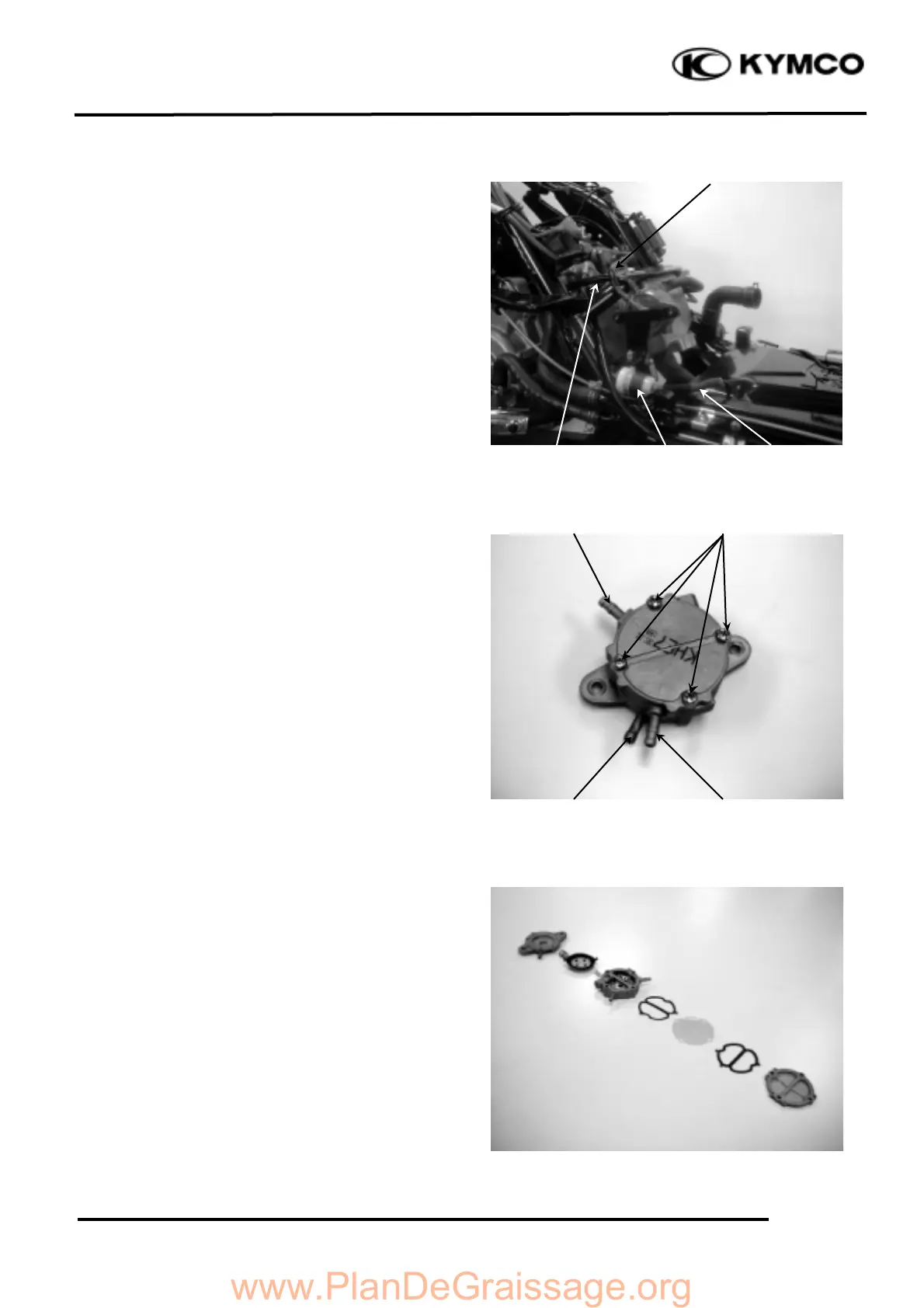

FUEL PUMP REMOVAL
Remove the frame center cover.
Disconnect the fuel pump inlet, outlet and
vacuum tubes.
Remove the two fuel pump attaching bolts
and the fuel pump.
FUEL PUMP DISASSEMBLY
Remove the four fuel pump body screws.
Disassemble the fuel pump.
Inlet
Screws
Fuel Strainer
Outlet Tube
Vacuum Tube
Inlet Tube
Vacuum Tube
Outlet
