13. FUEL SYSTEM/CARBURETOR/

FUEL PUMP/ FUEL TANK

13-20

Bet & Win 2 50

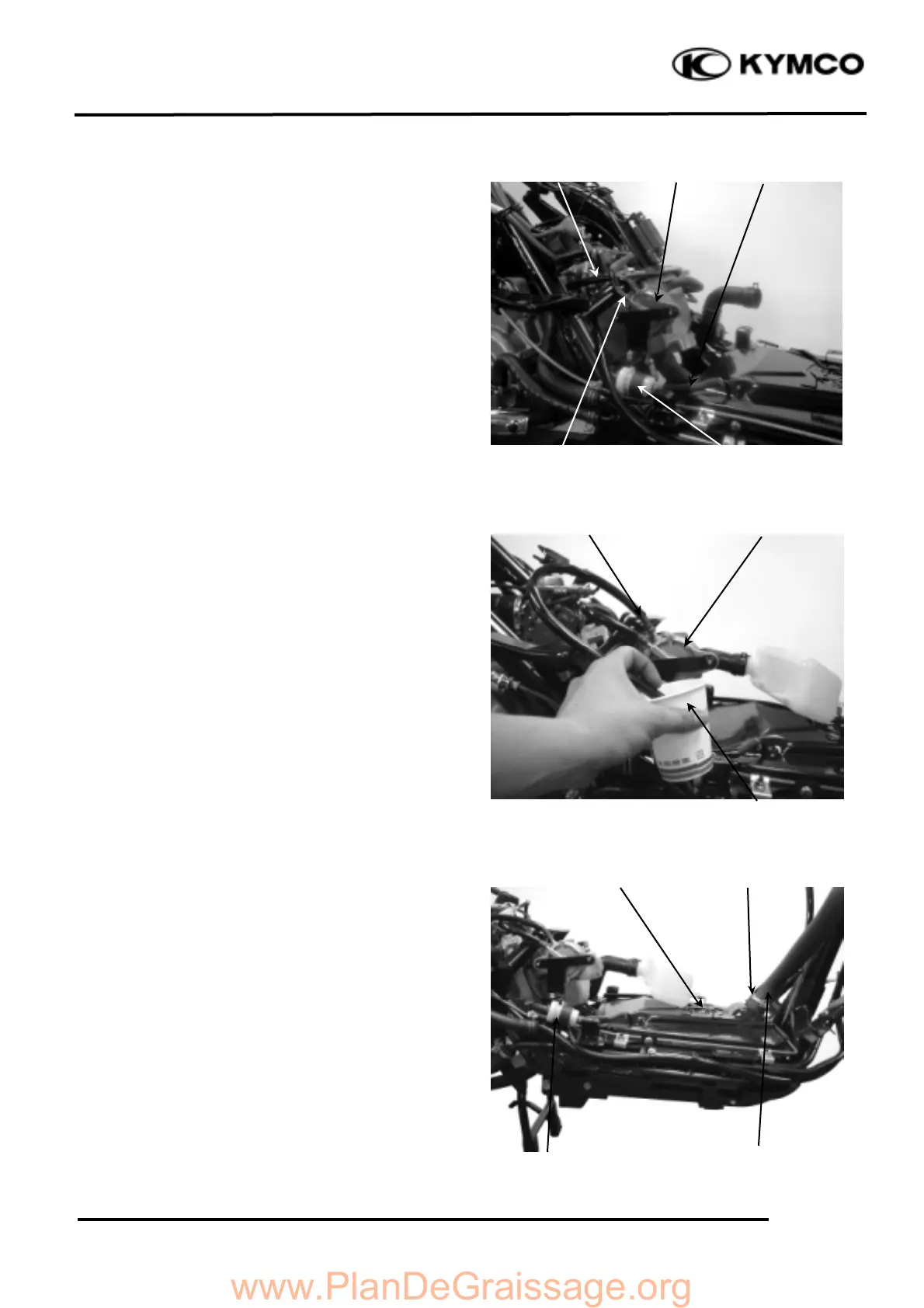

FUEL PUMP INSTALLATION

Install the fuel pump and secure it with the

two bolts.

Connect the fuel pump inlet, outlet and

vacuum tubes.

Install the seat, met-in box and frame center

cover.

Measure the fuel pump output.

Start the engine and disconnect the fuel

outlet tube and place a clean container under

the tube to check the fuel output.

Output: 40cc/1500rpm/10 seconds .

FUEL TANK REMOVAL

Remove the floor board. (

2-4)

Remove the leg shield . (

2-5)

Disconnect the fuel unit wire connector.

Remove the fuel tube between the fuel tank

and the fuel filler.

Disconnect the fuel vapor tube.

Remove the fuel tank.

The installation sequence is the reverse of

removal.

Container

Fuel Pump

Outlet Tube

Fuel Strainer

Outlet Tube

Vacuum Tube

Inlet Tube

Fuel Unit

Fuel Vapor Tube

Fuel Strainer

Tube to Fuel Filler
