6. CYLINDER HEAD/VALVES

6-4

Bet & Win 2 50

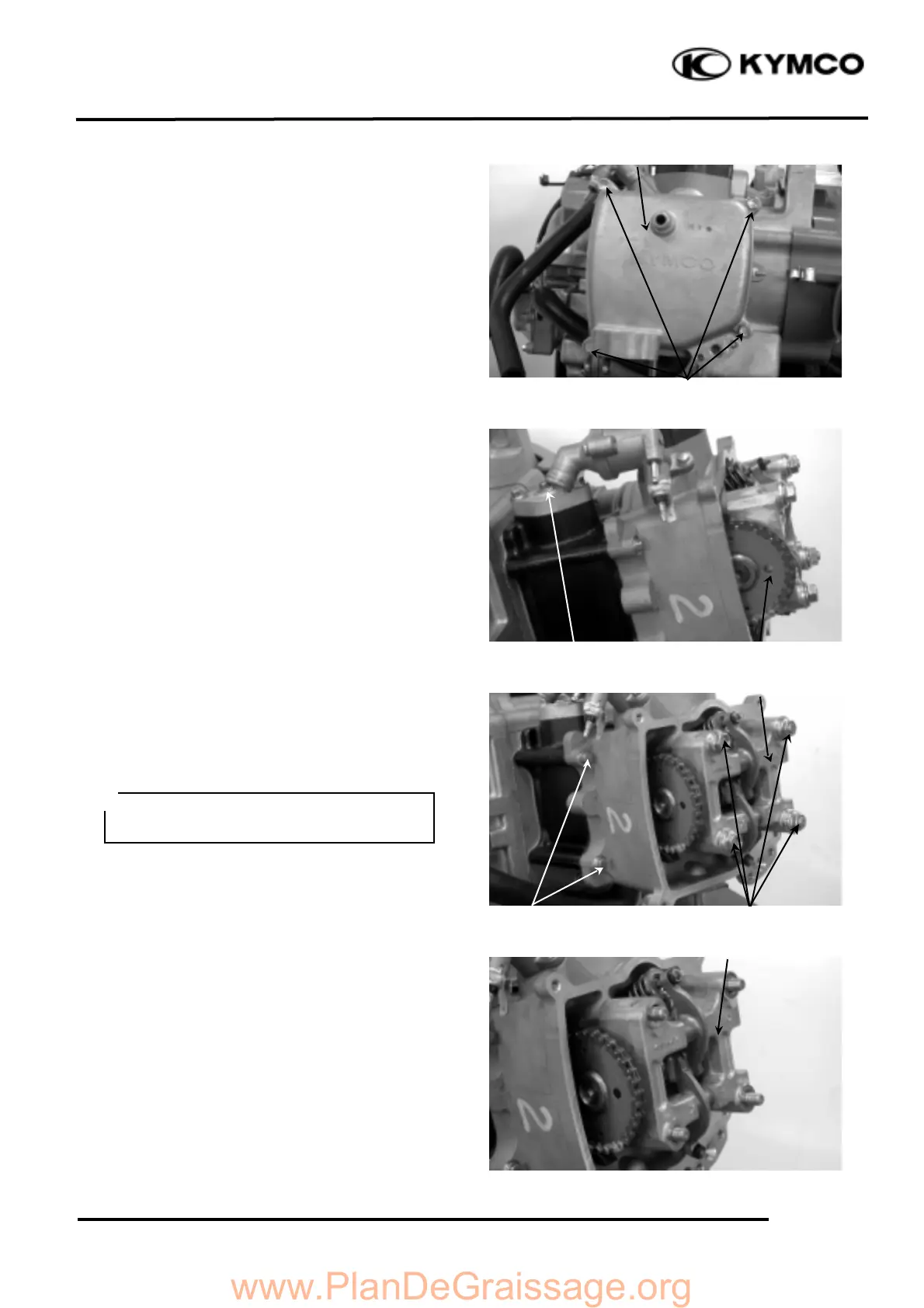

CYLINDER HEAD COVER

REMOVAL

Remove the center cover. (

2-3)

Remove the met-in box. (

2-3)

Remove the cylinder head cover four bolts

and then remove the cylinder head cover.

CAMSHAFT REMOVAL

Turn the A.C. generator flywheel so that the

“T” mark on the flywheel aligns with the

index mark on the crankcase.

Hold the round hole on the camshaft gear

facing up and the location is the top dead

center on the compression stroke.

Remove the two bolts attaching cam chain

tensioner and the tensioner.

First remove the two bolts between the

cylinder head and cylinder.

Then, remove the four cap nuts attaching the

cylinder head.

Remove the camshaft holder and dowel pins.

Cylinder Head Cover

Bolt

Cam Chain Tensioner

Round Hole

Camshaft Holder

Bolts

• Diagonally loosen the cylinder

head cap nuts in 2 or 3 times.

＊

Camshaft Holder

Cap Nuts
