8. DRIVE AND DRIVEN PULLEYS/

KICK STARTER

8-3

Bet & Win 2 50

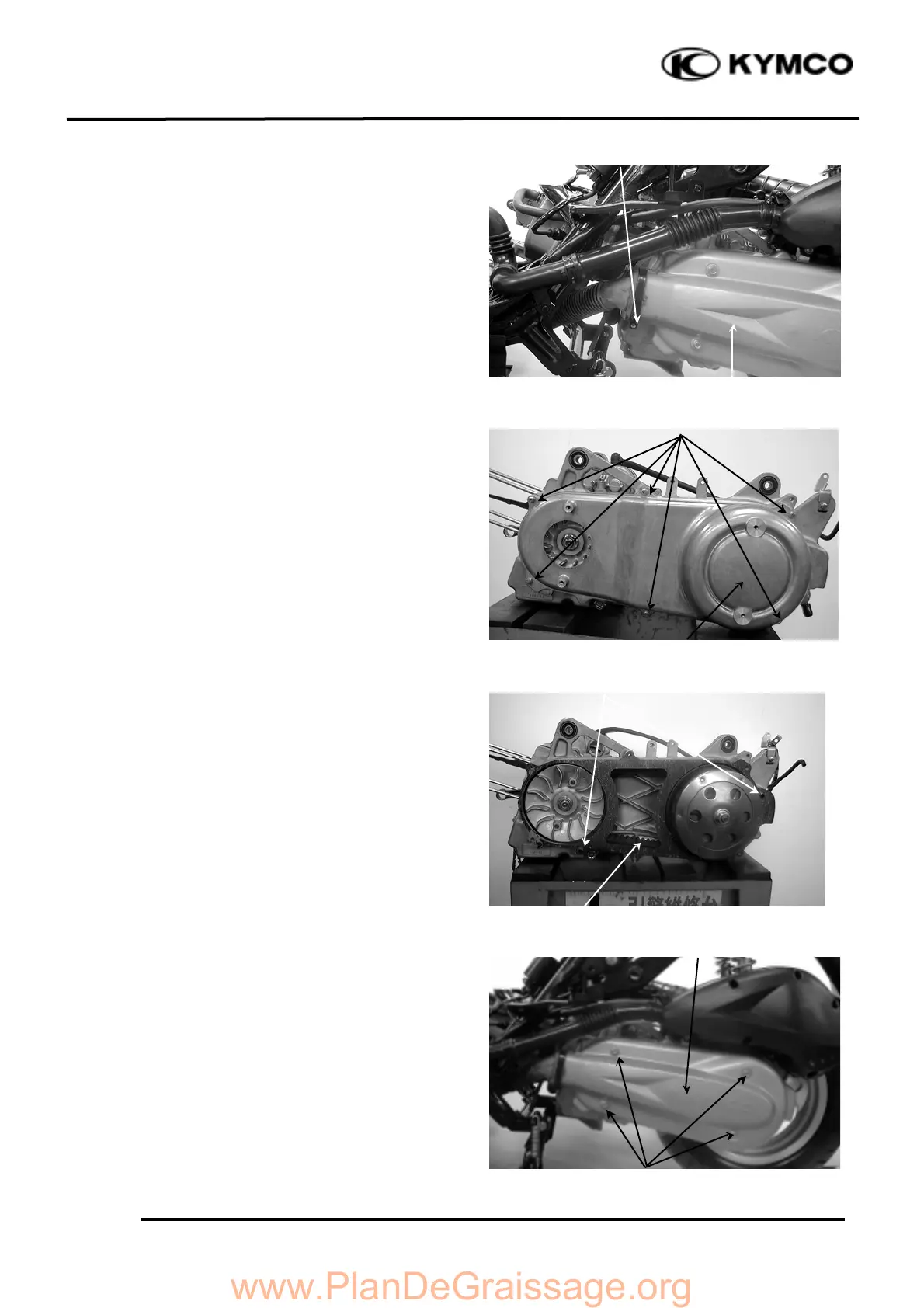

LEFT CRANKCASE COVER

REMOVAL

Loosen the drive belt air tube band screw.

Remove the four bolts on the left crankcase

surface cover.

Remove the left crankcase cover bolts and left

crankcase covers.

Remove the seal rubber and dowel pins.

INSTALLATION

Install the dowel pins and the seal rubber.

Install the left crankcase cover.

Install the cable clamp to the specified

location. Install and tighten the left crankcase

cover bolts.

Left Crankcase Cover

Air Tube Band

Bolts

Dowel Pins

Seal Rubber

Left Crankcase Cover

Bolts

Cover
