KYMCO Bet & Win 250 User Manual

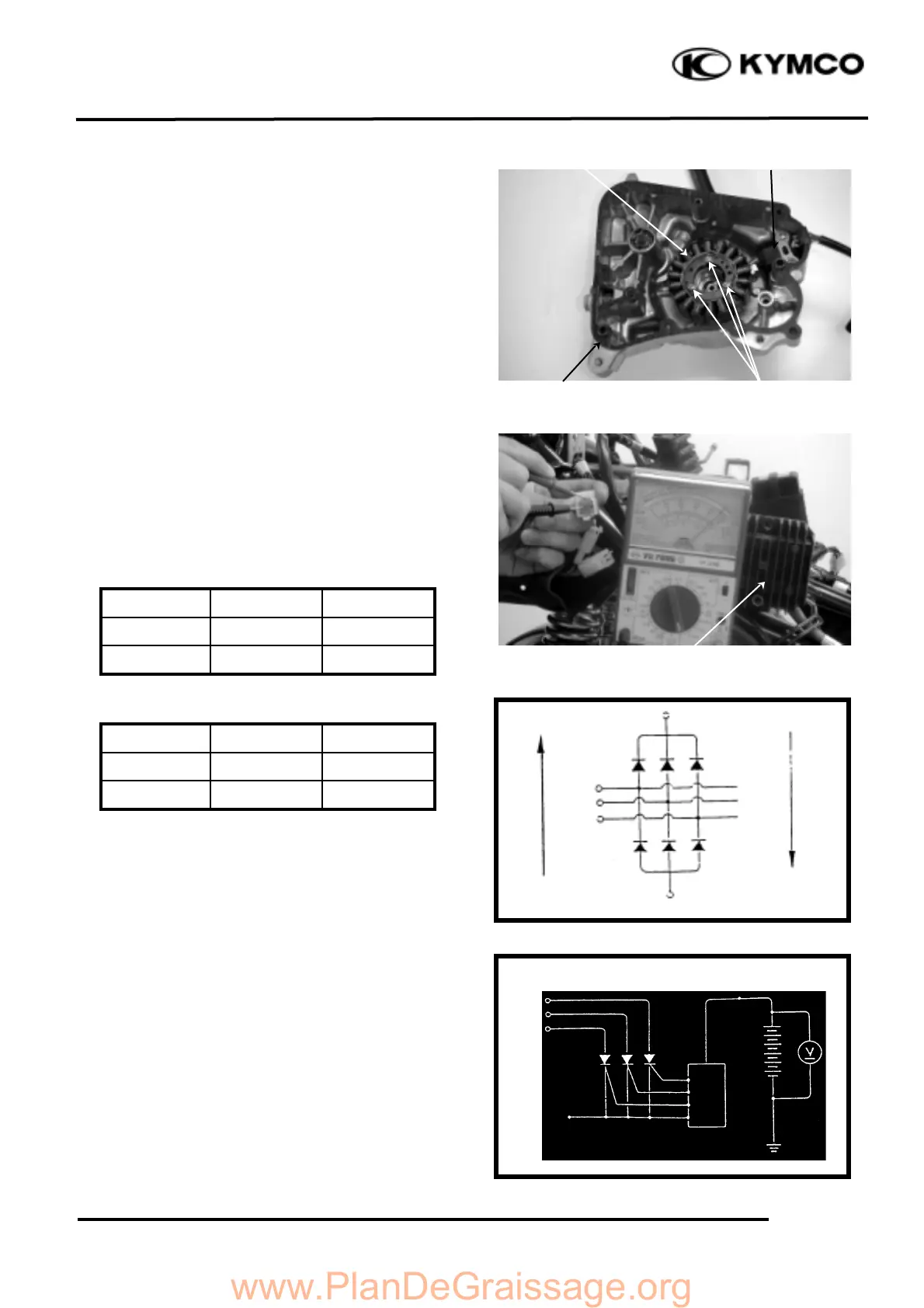

16. BATTERY/CHARGING SYSTEM
16-6
Bet & Win 2 50
A.C. GENERATOR REMOVAL
A.C. generator removal (
!
10-3)
A.C. generator installation (
!
10-6)
REGULATOR/RECTIFIER
INSPECTION
Remove the frame front cover. (
!
2-5)
Remove the regulator/rectifier wire coupler.
Check the continuity between the wire
terminals.
Normal Direction: Continuity
(+) Probe
(-) Probe
I
Yellow
Green
II
Red/White
Yellow
Reverse Direction: No Continuity
(+) Probe
(-) Probe
I
Green
Yellow
II
Yellow
Red/White
VOLTAGE REGULATION TEST
Connect a voltmeter across the battery
terminals.
Start the engine and gradually increase the
engine speed.
The battery terminal voltage should be within
14.0_ 15.0V.
A.C. Generator Stator
Voltage Sensor
Black
Regulator/Rectifier
Bolts
Pulser Coil
Right Crankcase Cover
Green
Red/White
Normal
Direction
Reverse
Direction
Yellow
www.PlanDeGraissage.org

KYMCO Bet & Win 250 Specifications

General

Displacement	249.4 cc
Cooling System	Liquid-cooled
Fuel System	Carburetor
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Disc
Fuel Capacity	12 liters
Ignition	CDI
Width	770 mm
Height	1, 370 mm
Seat Height	780 mm
Engine Type	4-stroke, single-cylinder
