17. IGNITION SYSTEM
17-4
Bet & Win 2 50

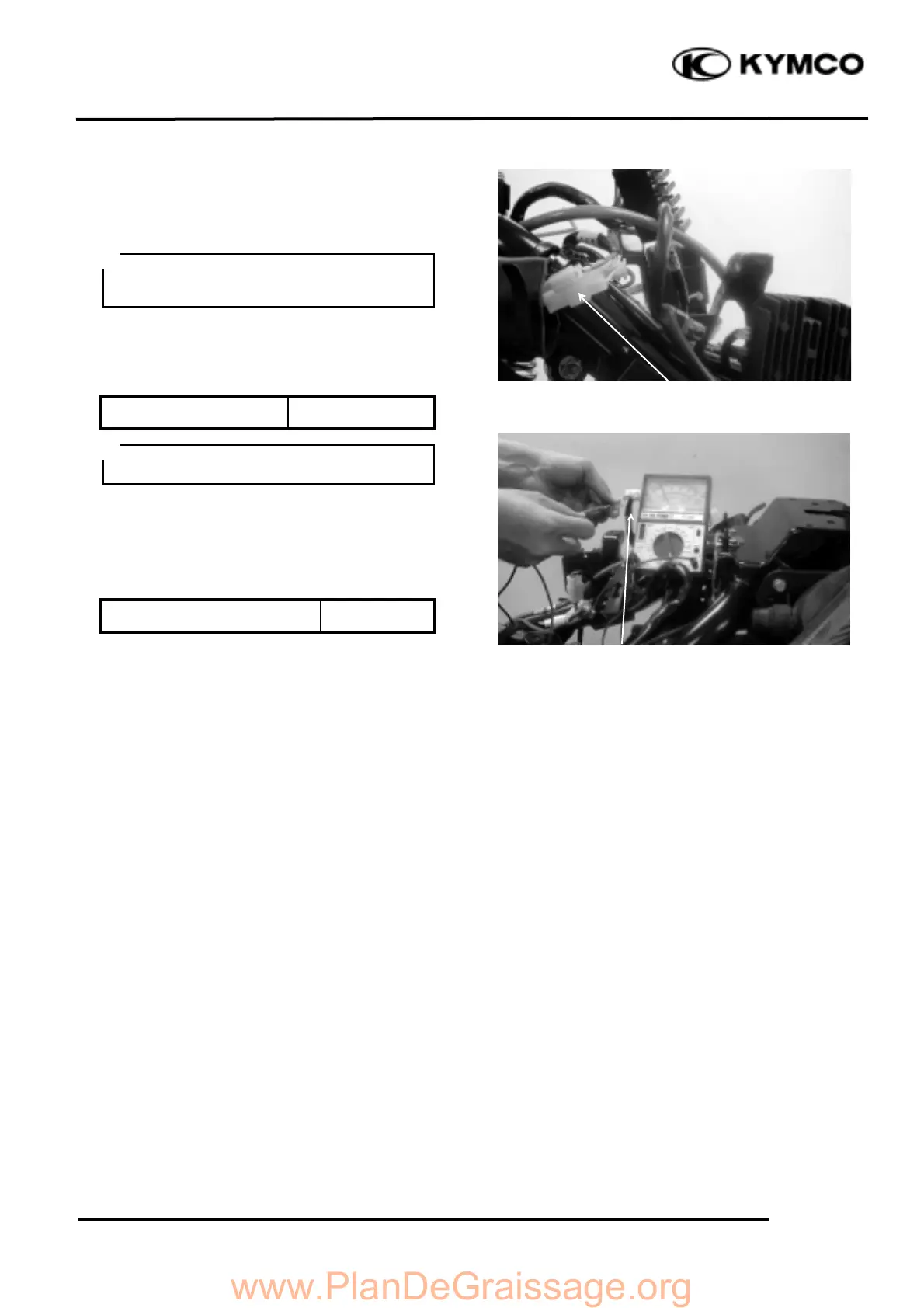

A .C. GENERATOR INSPECTION
EXCITER COIL/PULSER COIL
INSPECTION
Remove the frame right cover. (
!
2-4)
Disconnect the A.C. generator connector.
Measure the exciter coil resistance between
the black/red wire terminal and ground.
Black/red_ Ground
50_ 250W
For A.C. generator removal/installation, refer
to pages 10-3 and 10-6.
Disconnect the pulser coil wire coupler.
Measure the pulser coil resistance between
the blue/white and green/white wire terminals.
Blue/white_ Green/white
50_ 170W
A.C. Generator Connector
This test is performed with the stator
installed in the engine.
＊
Measure the resistance in the XW range.
＊
Pulser Coil Wire Coupler
