16. BATTERY/CHARGING SYSTEM

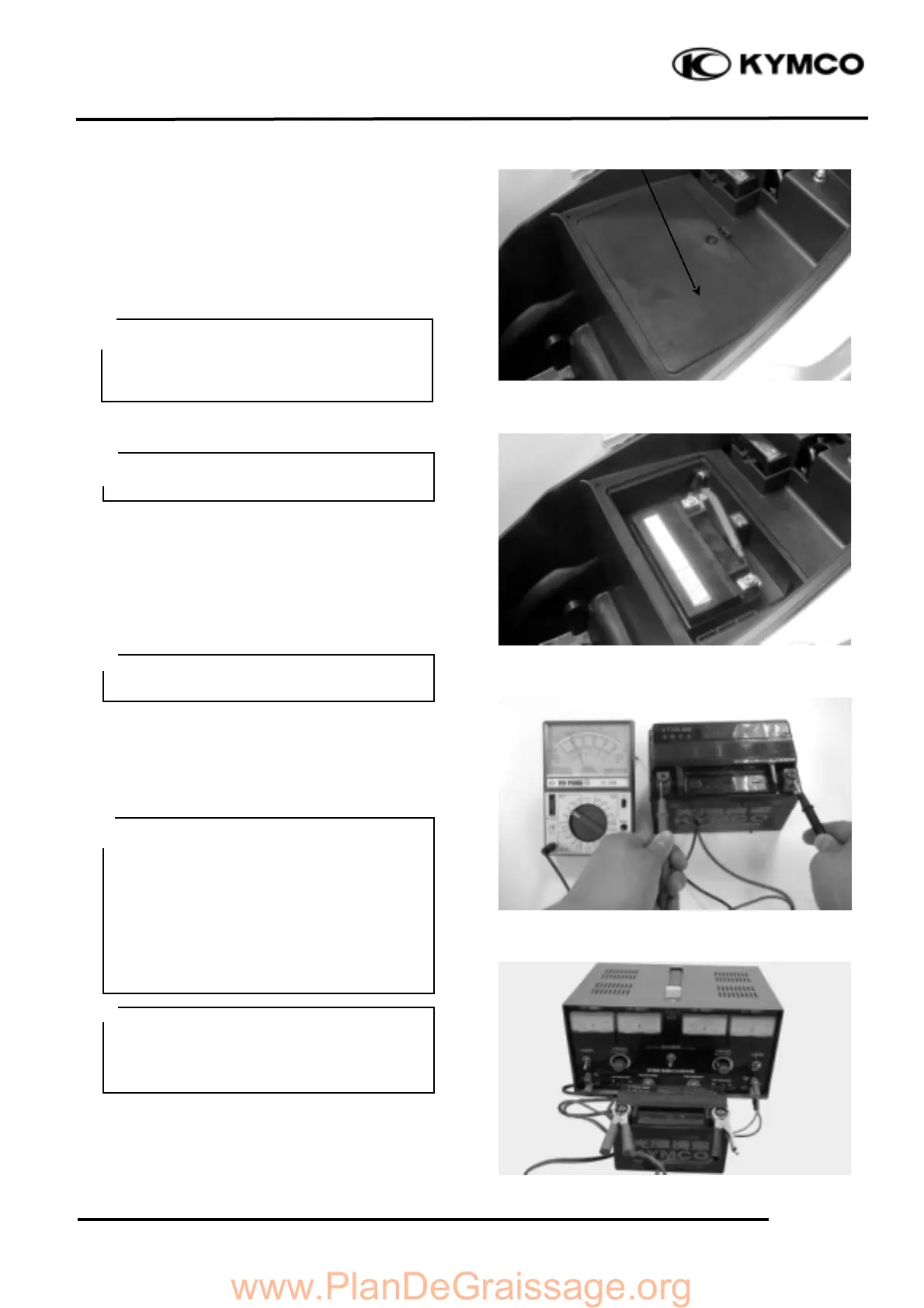

BATTERY
Remove the seat and met-in box. (
!
2-3)
Remove the battery cover screw and the
battery cover.
Remove the battery.
First disconnect the battery negative (-) cable
and then the positive (+) cable.
The installation sequence is the reverse of
removal.
BATTERY VOLTAGE INSPECTION (OPEN
CIRCUIT VOLTAGE)
Disconnect the battery cables.
Measure the voltage between the battery
terminals.
Fully charged : 13.2V
Undercharged : 12.3V max.
CHARGING
Connect the charger positive (+) cable to the
battery positive (+) terminal.
Connect the charger negative (-) cable to the
battery negative (-) terminal.
Charging current : Standard : 1.2A
Quick : 5A
Charging time : Standard : 5_ 10 hours
Quick : 60 minutes
After charging: Open circuit voltage: 12.8V min.
When disconnecting the battery positive
(+) cable, do not touch the frame with
tool; otherwise it will cause short circuit
and sparks to fire the fuel.
• Keep flames and sparks away
from a charging battery.
• Turn power ON/OFF at the
charger, not at the battery terminals to
prevent sparks near the battery.
• Charge the battery according to
the current specified on the battery.
• During quick charging, the
battery temperature should not exceed
45℃ .
• Quick charging should only be done in
an emergency.
• Measure the voltage 60 minutes after
the battery is charged.
Battery charging inspection must be
performed with a voltmeter.
First connect the positive (+) cable and then
negative (-) cable to avoid short circuit.
