10. A.C. GENERATOR/STARTER CLUTCH
10-4
Bet & Win 2 50

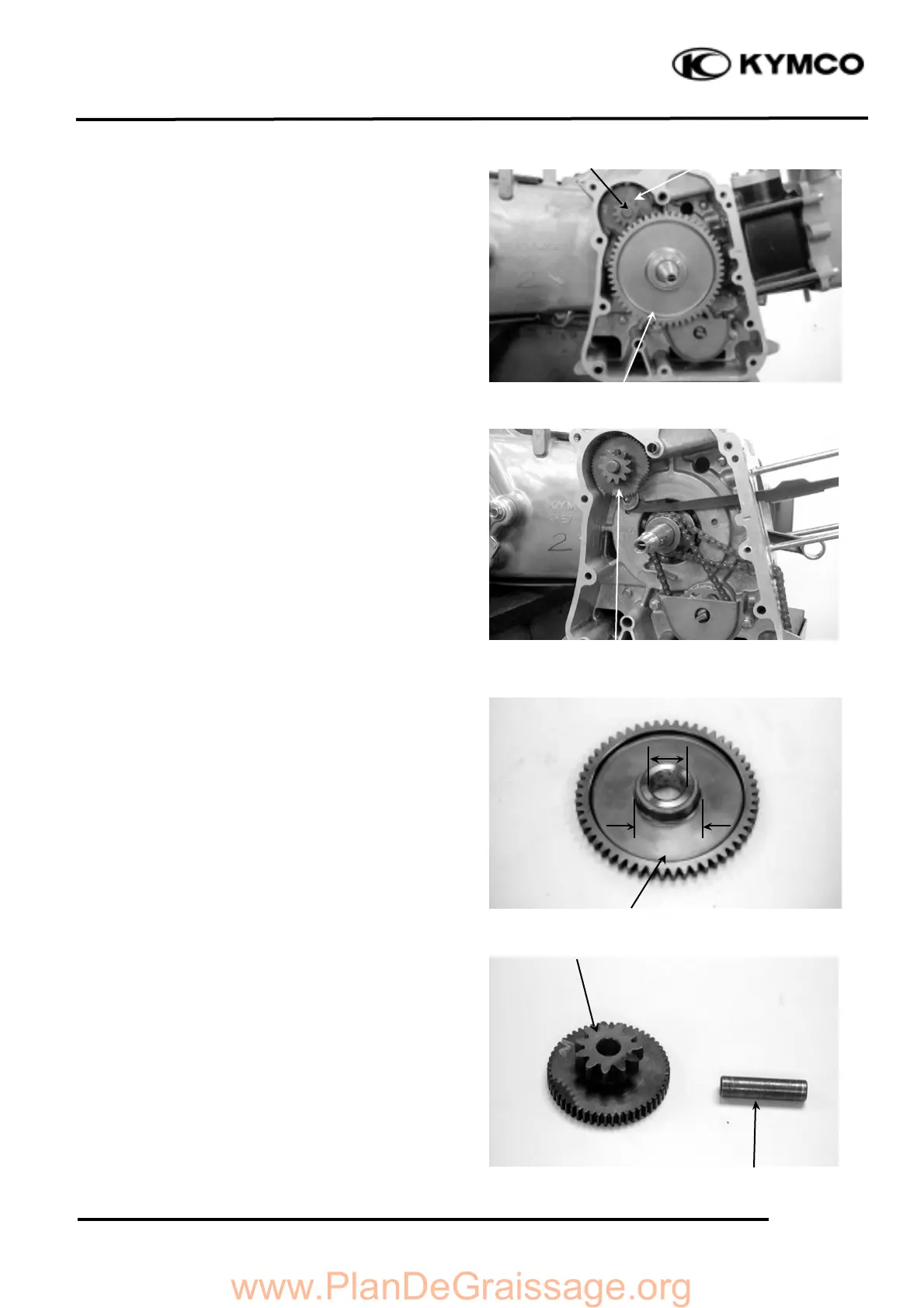

STARTER CLUTCH
REMOVAL
Remove the starter driven gear.
Remove the starter idle gear and shaft.
INSPECTION
Inspect the starter driven gear for wear or
damage.
Measure the starter driven gear I.D. and O.D.
Service Limits:
I.D. : 22.15mm replace if over
O.D. : 41.50mm replace if below
Inspect the starter idle gear and shaft for wear
or damage.
Starter Idle Gear
Shaft
Starter Driven Gear
Starter Idle Gear
Starter Driven Gear
Starter Idle Gear
Shaft
