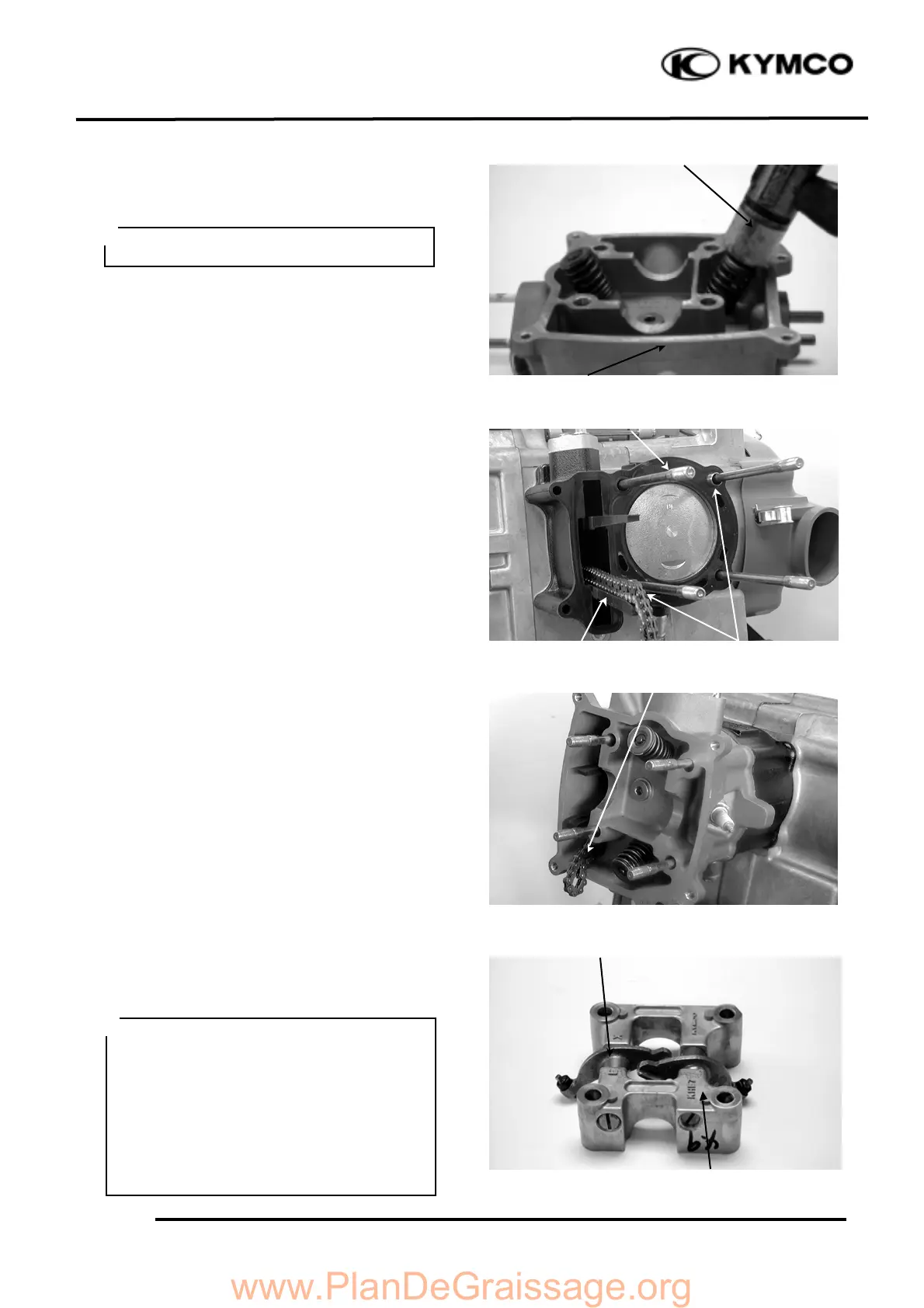

6. CYLINDER HEAD/VALVES

6-9

Bet & Win 2 50

Tap the valve stems gently with a plastic

hammer to firmly seat the cotters.

CYLINDER HEAD INSTALLATION

Install the cam chain guide.

Install the dowel pins and a new cylinder

head gasket.

Install the cylinder head and take out the cam

chain

Assemble the camshaft holder.

First install the intake and exhaust valve

rocker arms; then install the rocker arm shafts.

Gasket

Cam Chain Guide

Valve Rocker Arms

Plastic Hammer

Cam Chain

Cylinder Head

Camshaft Holder

Be careful not to damage the valves.

＊

Dowel Pins

• Install the exhaust valve rocker

arm shaft on the “EX” side of the

camshaft holder and the exhaust rocker

arm shaft is shorter.

• Clean the intake valve rocker arm

shaft off any grease before installation.

• Align the cutout on the exhaust

valve rocker arm shaft with the bolt of

the camshaft holder.

＊
