19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS
19-5
Bet & Win
125 /150

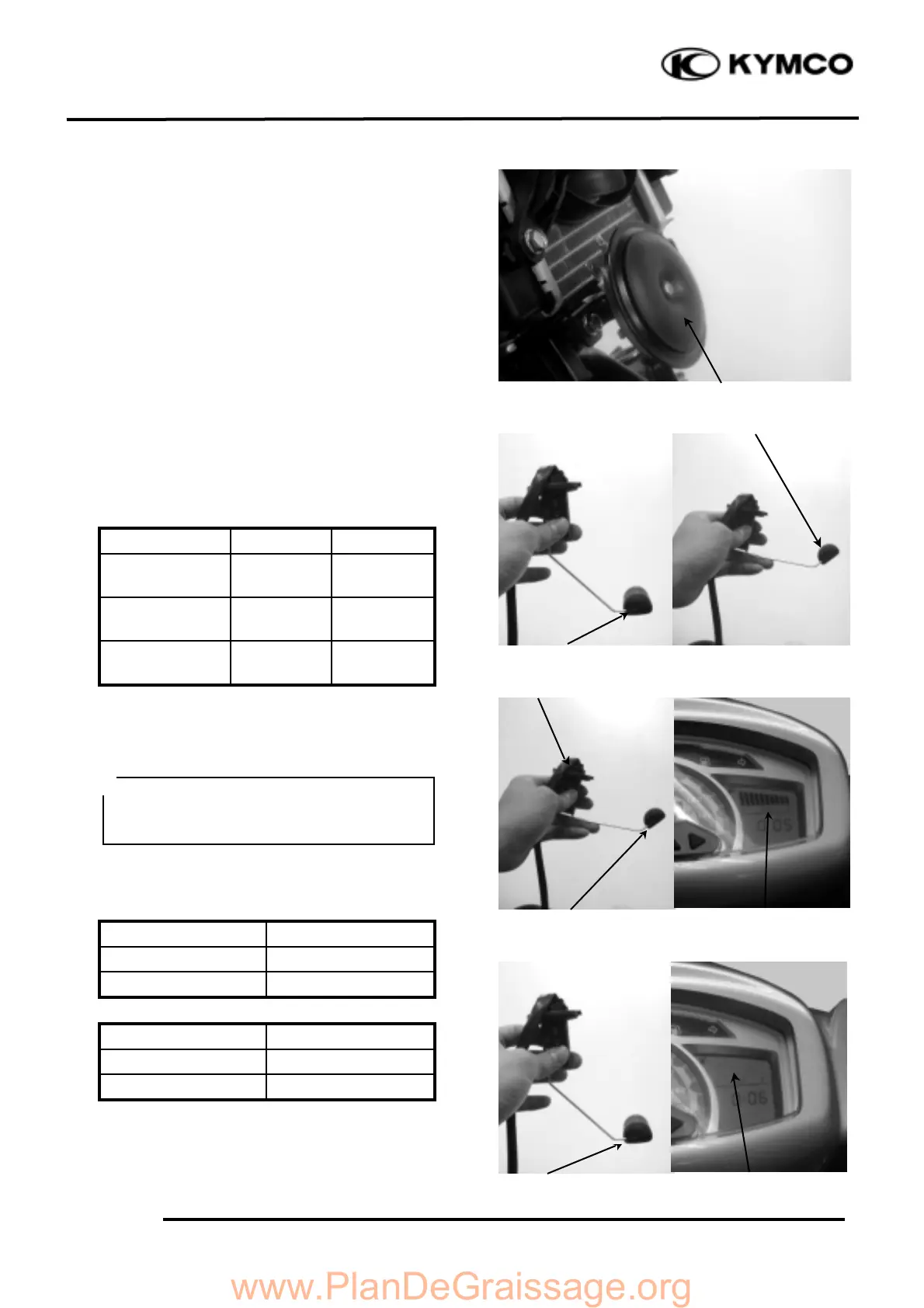

HORN INSPECTION
Remove the front upper cover. (
!
2-5)
Disconnect the horn wire couplers.
The horn is normal if it sounds when a 12V
battery is connected across the horn wire
terminals.
FUEL UNIT
FUEL UNIT INSPECTION
Remove the fuel unit.
Disconnect the fuel unit wire connectors.
Measure the resistance between the fuel unit
wire terminals with the float at upper and
lower positions.
Wire Terminals
Upper
Lower
Y/W_ G
33_ 45W
500_ 850
W
L/W_ G
400_ 700
W
100_ 200
W
Y/W_ L/W
450_ 750
W
450_ 750
W
FUEL METER INSPECTION
Connect the fuel unit wire connectors and
turn the ignition switch “ON”.
Check the fuel meter LCD for correct
indication by moving the fuel unit float up
and down.
Float Position
LCD Display
Upper
Much (Full)
Lower
Less (Empty)
Wire Terminals
LCD Display
Y/W_ G
From Much to Less
L/W_ G
From Less to Much
The fuel meter is normal if it operates as
above indicated. If not, check for loosely
tightened nuts, poorly connected terminals or
shorted wires.
Fuel Unit
Before performing the following test,
operate the turn signals to determine that
the battery circuit is normal.
＊
Horn
Lower
Upper
Upper
Fuel Full
Lower
. Fuel Empty
