15. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER
15-5
Bet & Win 2 50
INSTALLATION
The installation sequence is the reverse of
removal.
Torque:
Rear shock absorber lower mount bolt:
19.6_ 29.4N-m
Rear axle nut: 78.4_ 98N-m
ADJUSTABLE REAR CUSHION
To suit scooter behaviour to load condition
rear cushion could be adjusted in spring
prelocad.
It is possible to adjust rear cushion in three
positions:
A position “soft”
B position “medium”
C position “hard”
When you adjust rear cushion, the spring
preload of rear cushions must be the same.
REAR SHOCK ABSORBER
REMOVAL
Remove the rear carrier and hand rail. (
!
2-3)
Remove the met-in box. (
!
2-3)
Remove the two air cleaner bolts.
Remove the rear shock absorber upper mount
bolt.
Remove the right/left rear shock absorber
upper and lower mount bolts.
Remove the right and left rear shock
absorbers.
DISASSEMBLY
Disassemble the right and left rear shock
absorbers using the rear shock absorber
remover.

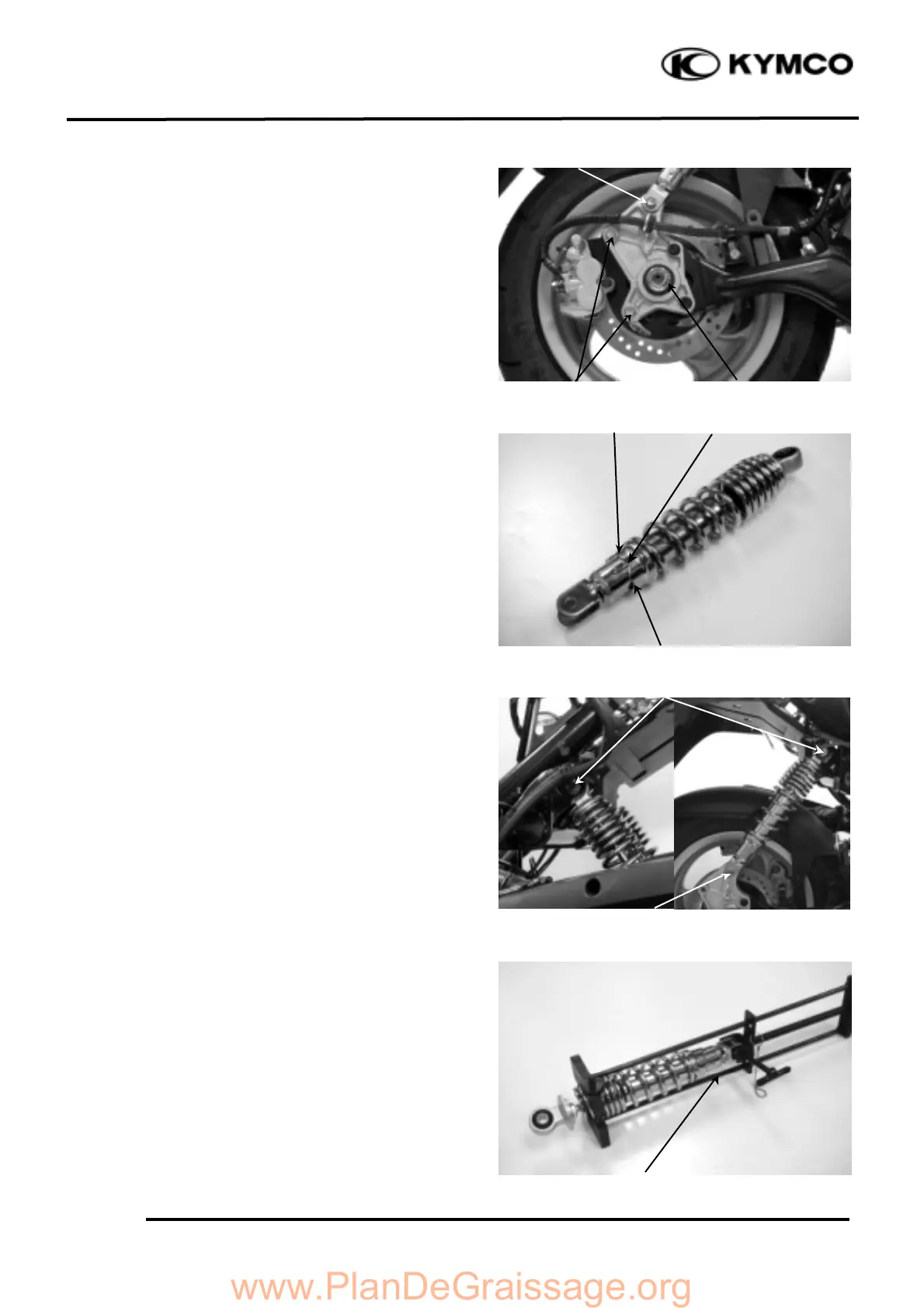

Shock Absorber Lower Mount Bolt
Axle Nut
Lower Mount Bolts
A
Upper Mount Bolts
Brake Caliper Bolts
Rear Shock Absorber Remover
B
C
