4. LUBRICATION SYSTEM

4-6

Bet & Win 2 50

Screw

Bolts

Pump

Cover

Oil Separator Cover

Pump Driven Gear

Bolts

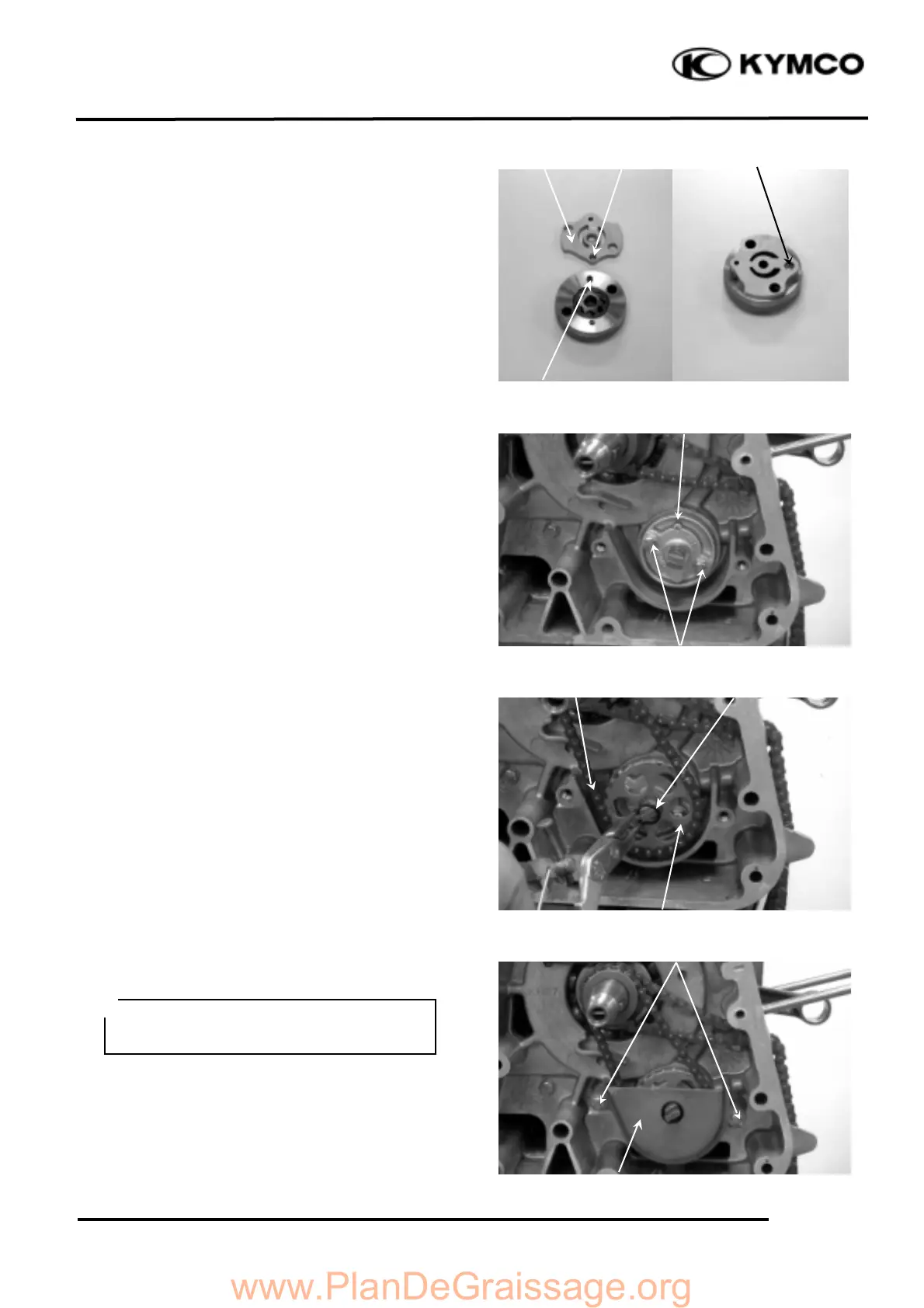

Install the pump cover by aligning the hole in

the cover with the dowel pin.

Tighten the screw to secure the pump cover.

Make sure that the pump shaft rotates freely

without binding.

OIL PUMP INSTALLATION

Install the oil pump and oil separator and

tighten the two bolts.

Make sure that the pump shaft rotates freely.

The arrow of oil pump is upside.

Install the pump drive chain and driven gear,

then set the circlip securely on the pump

shaft.

Install the oil separator cover properly.

Install the A.C. generator starter driven gear.

(

10-5)

Circlip

Fit the tab of the separator cover into the

slit in the separator.

＊

Dowel Pin

Hole

Pump Drive Chain

Arrow Mark
