19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS
19-7
Bet & Win
125 /150

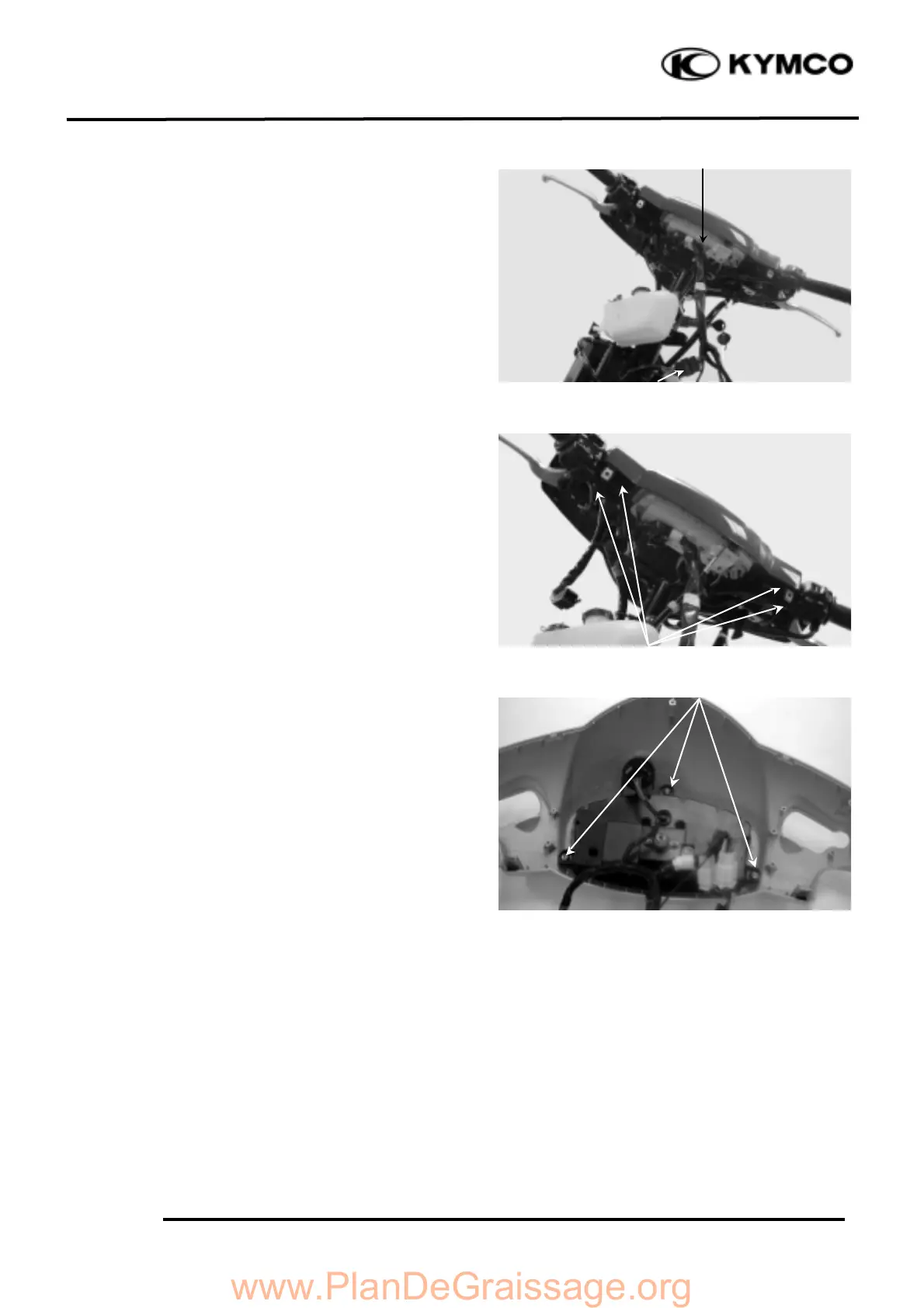

INSTRUMENTS
REMOVAL
Remove the front upper cover. (
!
2-5)
Disconnect the instrument wire couplers and
connectors.
Disconnect the speedometer cable.
Remove the four instrument cover and leg
shield screws.
Remove the instruments.
DISASSEMBLY/ASSEMBLY
Remove the three instrument holder nuts.
Remove the holder.
Remove the four screws to disassemble the
instruments and instrument cover.
Assemble the instruments in the reverse order
of disassembly.
INSTALLATION
The installation sequence is the reverse of
removal.
Wire Couplers
Speedometer Cable
Screws
Screws
