3. Touch inside the Start field and enter a value, using the pop-up numeric keypad. Or, you can simply touch t
leftmost grid line and drag the gate post to the right.
he
4. Touch inside the Stop field and enter a value, using the pop-up numeric keypad. Or, you can simply touch the
rightmost grid line and drag the gate post to the left.
Help Markers
Help Markers clarify parameter measurements by displaying movable cursors and a visual representation of what
is being measured. For the at level parameters, Help Markers make it easier to see where your waveform
intersects the chosen level. This feature also displays the hysteresis band that you have set about that level.
You also have the option, by means of an Always On checkbox, to leave the Help Markers displayed after you
have closed the Help Markers setup dialog.
You have a choice of Simple or Detailed views of the markers:
• The Simple selection produces cursors and Measure Gate gate posts. The gate posts are independently
placeable for each parameter.
• The Detailed selection produces cursors, Measure Gate gate po ntifying the parameter being
indicator and hysteresis band for "at level" parameters (not part of Standard Horizontal
rameters).
sts, a label ide
measured, and a level
or Standard Vertical pa

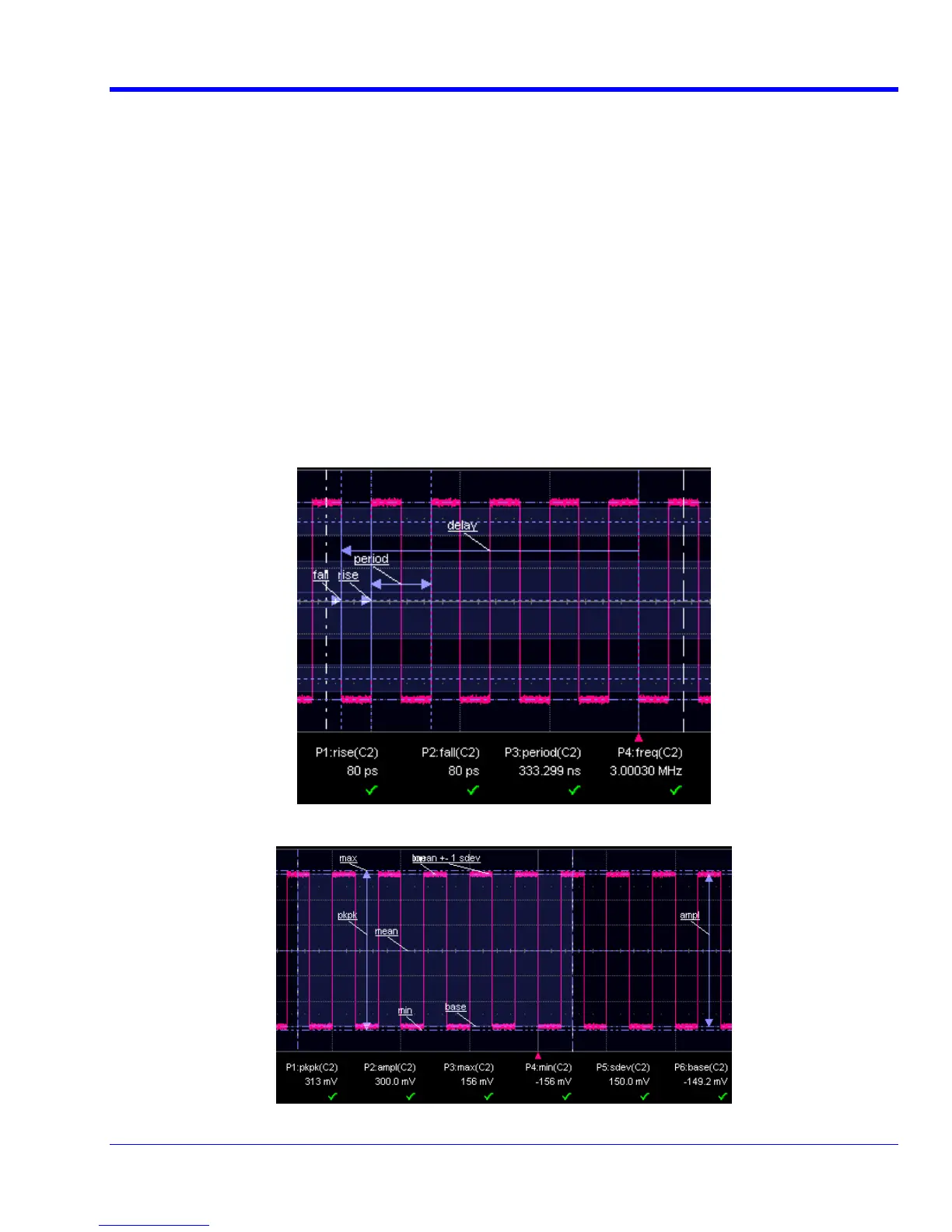

Standard Horizontal Parameter Help Markers
Standard Vertical Parameter Help Markers
