WAVE ERIES RUNNER XI S
Adjusting the Waveform's Position

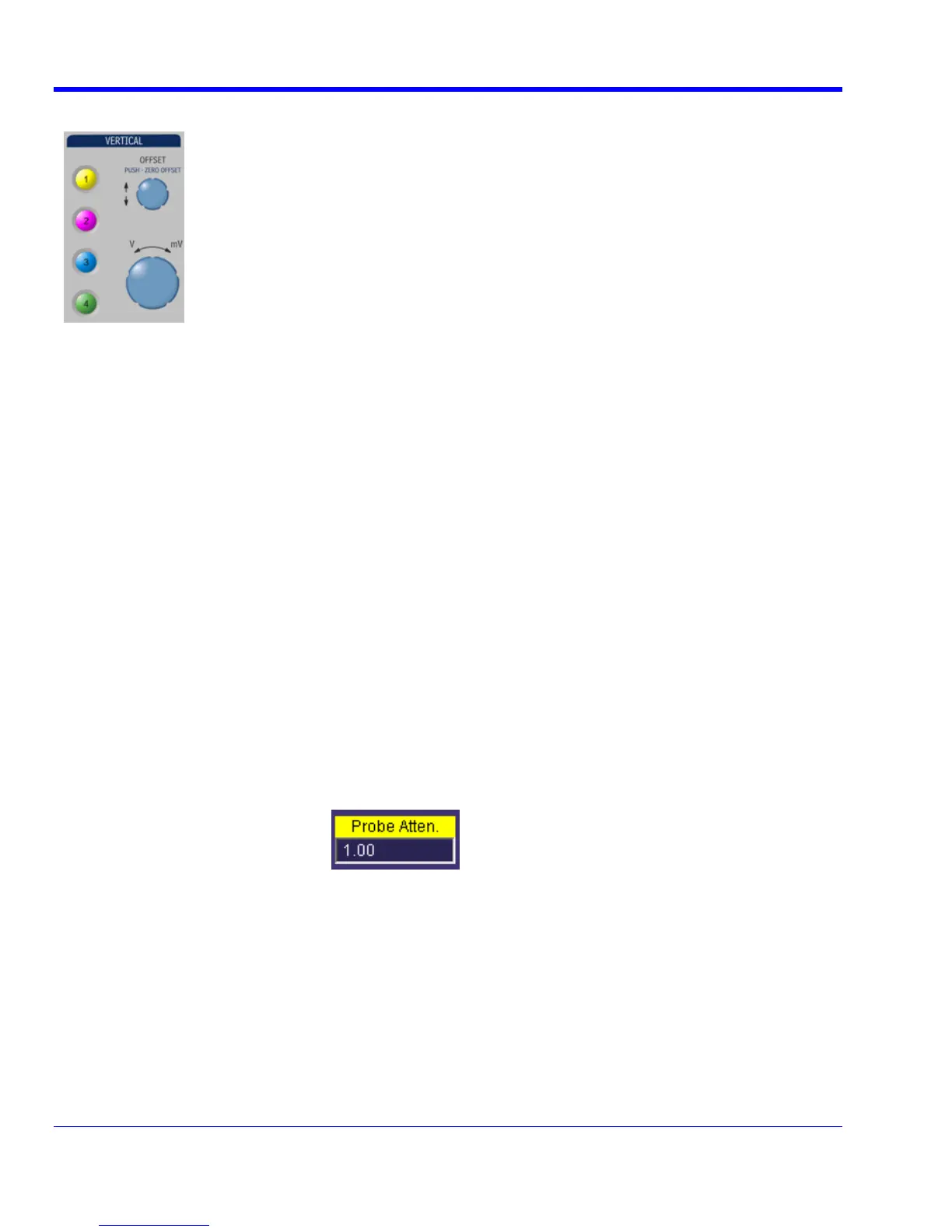

Turn the vertical offset adjust knob directly above the channel button whose waveform
you want to move vertically. Or you can touch inside the Offset field and type in a value
on the pop-up keypad. To set the vertical offset to zero, press the vertical offset adjust
knob for the channel you want to adjust:
Coupling
Coupling choices are as follows:
• DC 50 Ω
• GROUND
• DC 1 MΩ
• AC 1 MΩ
Overload Protection
The maximum input voltage is 5 V
rms
. When the voltage exceeds this limit, the coupling mode automatically
switches from DC 50 to GROUND. You will then have to manually reset the coupling to DC 50 ohms, as
described next.
Coupling Setup
1. In the menu bar, touch the Vertical button, then Channel X Setup... in the drop-down menu.
2. Touch inside the Coupling field and select a coupling mode from the pop-up menu.
Probe Attenuation
Probe Attenuation Setup
LeCroy's ProBus system automatically senses probes and sets their attenuation for you. However, to set the
attenuation manually:
1. In the menu bar, touch Vertical, then select a channel from the drop-down menu.
2. Touch inside the Probe Atten. field
.
3. Touch a divide-by menu selection or touch Var (variable). If you choose Var, type in a value using the pop-up
numeric keypad.
54 WRXi-OM-E Rev C
