WAVERUNNER XI SERIES

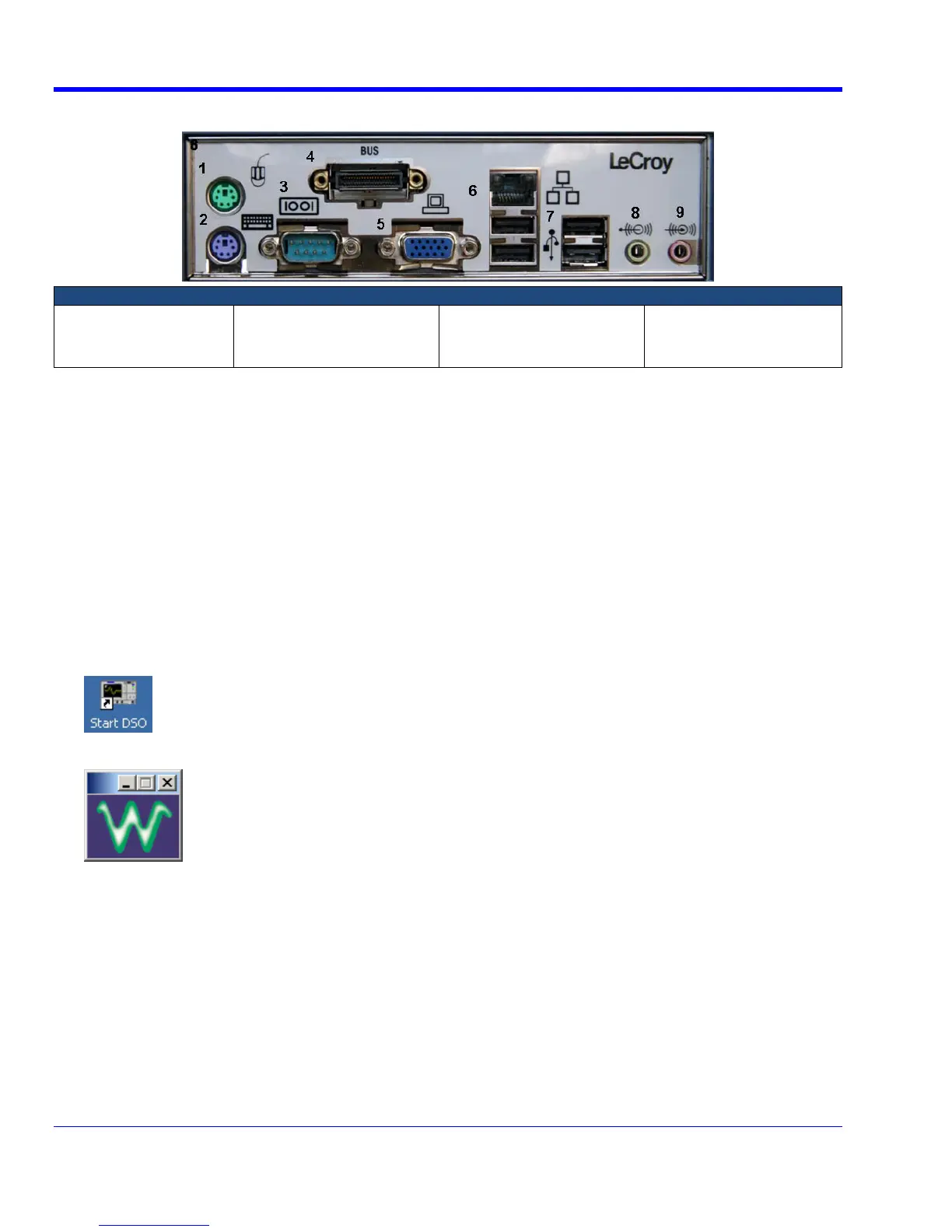

Hardware Connections
Numbers on the previous picture correspond as follows:
1. Mouse
2. Keyboard
3. RS-232-C Port
4. LeCroy Bus (LBus)
5. External VGA Monitor
6. Ethernet Port
7. USB Ports (4)
8. Speakers
9. Line In
Software Status
You can find out the oscilloscope's software and hardware configuration as follows:
1. In the menu bar, touch Utilities.
2. In the dialog area, touch Status.
Adding a New Option
To add a software option you will need a code to enable the option. Call LeCroy Customer Support to place an
order and receive the code.
Restoring Software
Restarting the Application
Upon initial power-up, the oscilloscope will load the instrument application software automatically.
• If you exit the application and want to reload it, touch the shortcut icon on the desktop:
• If you minimize the application, touch the desktop icon to maximize it:
Restarting the Operating System
If you need to restart the Windows® operating system, you will have to reboot the oscilloscope by pressing the
power switch, then turning the power back on after a ten-second wait.
External Monitor
Your WaveRunner Xi Series oscilloscope’s motherboard contains a dual-video chip that enables you to extend
the oscilloscope’s desktop over two monitors, or to display a clone of the oscilloscope screen on an external
monitor. In the extended mode, for example, you could view the oscilloscope UI on the oscilloscope itself and
another application, such as Excel®, on the external monitor, or vice versa. You also have the option to turn off
the oscilloscope monitor and view the oscilloscope UI on just the external monitor.
42 WRXi-OM-E Rev C
