OPERATOR’S MANUAL
Entering a File Name

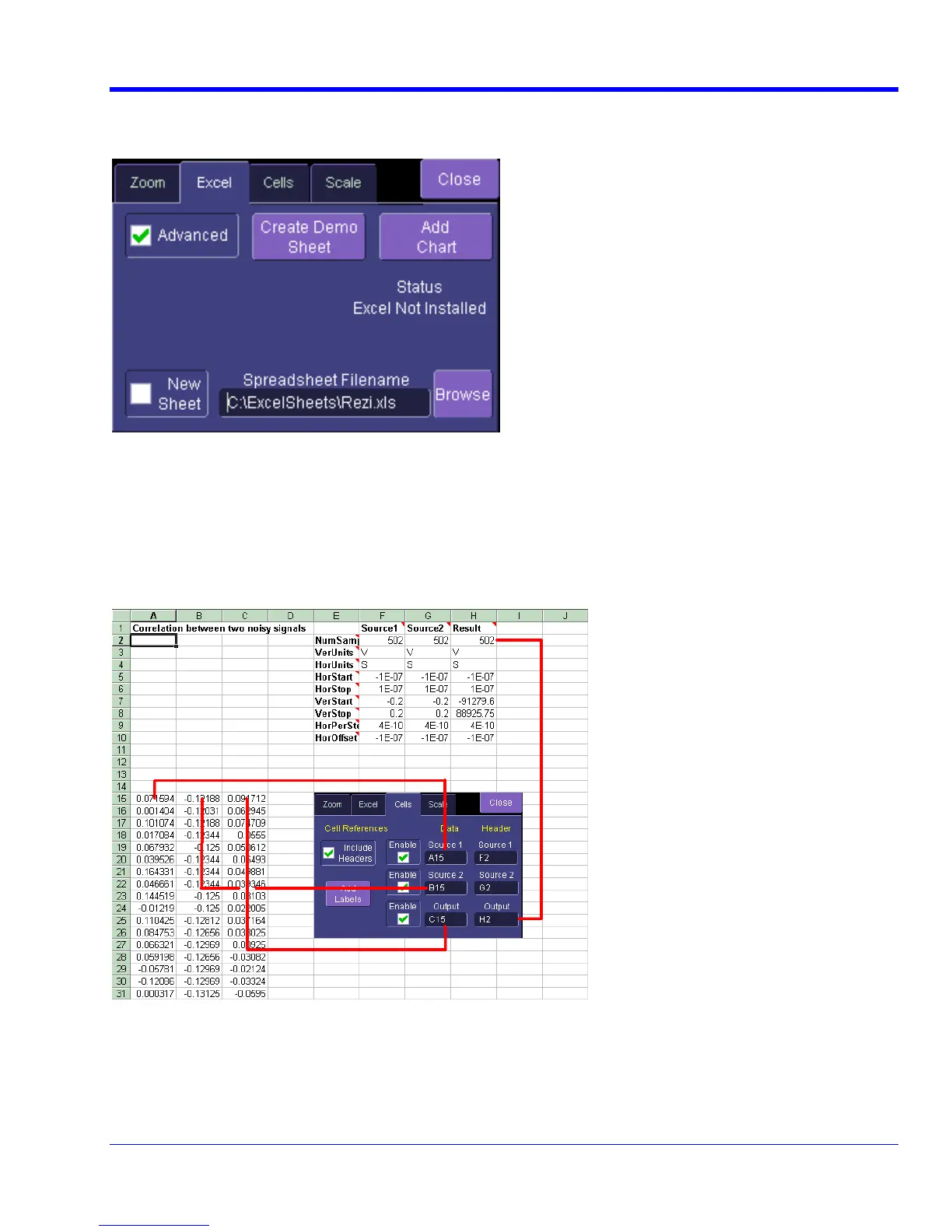

If you uncheck the New Sheet checkbox, you can enter the file name of an existing file.
• The Create Demo Sheet button opens a default Excel spreadsheet.
re,
• The Add Chart button adds charts of your waveforms on the spreadsheet. You can go into Excel and create
as many charts as you want.
Organizing Excel sheets
The Cells tab allows you to organize your Excel chart. When placing the components in the sheet, be careful to
avoid over-writing needed information, especially when you are using multiple input waveforms. As depicted he
the instrument panel has been pasted over the Excel sheet.
There are three arrays of data fo e waveforms: up to two d one output. There are corresponding
small arrays of information about ea
r the thre
ch trace.
inputs an
WRXi-OM-E Rev C 175
